Maximum - 12” X 12” (+/-1mm)
Minimum - 1” X 1” (+/-1mm)

Embroidery - The design cannot have more than 15 different colors of thread.
Sublimation - Sublimated allows unlimited colors. You can digitally print photorealistic images and match PMS colors.

Overlock border is 4mm +/- 1mm.

• Low melt heat seal
• Industrial heat seal
• Pressure-sensitive

Low melt - Recommended application for thicker materials, such as jackets, and hats that can withstand a heat press and 320° F. Not recommended for use on materials that may be heat sensitive (ex: some nylons, silk, some plastics, leather, wool, fleece, etc.) or for weather-treated materials, due to chemicals used that do not allow the emblems to adhere properly.
Pressure-sensitive - Recommended application is on flat, non-textured surfaces, including glass, plastic, wood, and metal. Not recommended for application on surfaces that may contain an oil finish, such as silicon, Teflon™, rough fabrics, or outdoor goods.

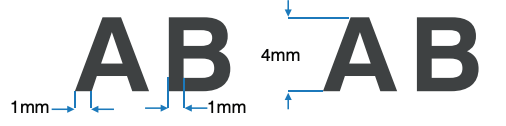

Embroidered text - Cannot have a height smaller than 4mm and column width of 1mm.
Sublimated text - 1.6 mm

Machine wash inside-out using mild detergent. Patches with industrial heat seal backing will withstand 52 industrial wash cycles.

One year shelf life before applying (room temperature-controlled environment).

Revised 09.02.22

Pressure-sensitive

1. Use rubbing alcohol to thoroughly clean the application area
2. Remove paper backing and press emblem firmly on desired location
3. After applying pressure, peel the clear top carrier from the emblem

Low Melt Backing with a Top Heat Press - Garments

1. Set press to 315-325°F for top heat with 70-80 psi of pressure.
2. Ensure application location is wrinkle-free and place garment onto press.
3. Place patch onto desired location on garment. Thermal Tape is optional.
4. Press for 12-18 seconds.
5. Remove garment from press and allow to cool.

Low Melt Heat Seal on Hats - Using the 360 IQ™ Hat Heat Press

1. Set press to 255°-265°F for top heat and 315°- 320°F for bottom heat with 60-80 psi of pressure.
2. Place hat on heat press, leaving out the inner layer of the cap. Use adjustment lever for a better grip.
3. Place emblem onto desired location. To secure the emblem and prevent it from moving, use Thermal Tape.
4. Press for 15-18 seconds.
5. Deactivate the adjustment lever and remove the hat from the heat press.
6. Remove Thermal Tape once the patch has cooled.

Disclaimer

World Emblem recommends testing the best combination of heat seal parameters before application. World Emblem is not liable for any damages to garments during the application process.

Note: Please check out www.youtube.com/worldemblem for step-by-step instructions for applying our apparel decorations.

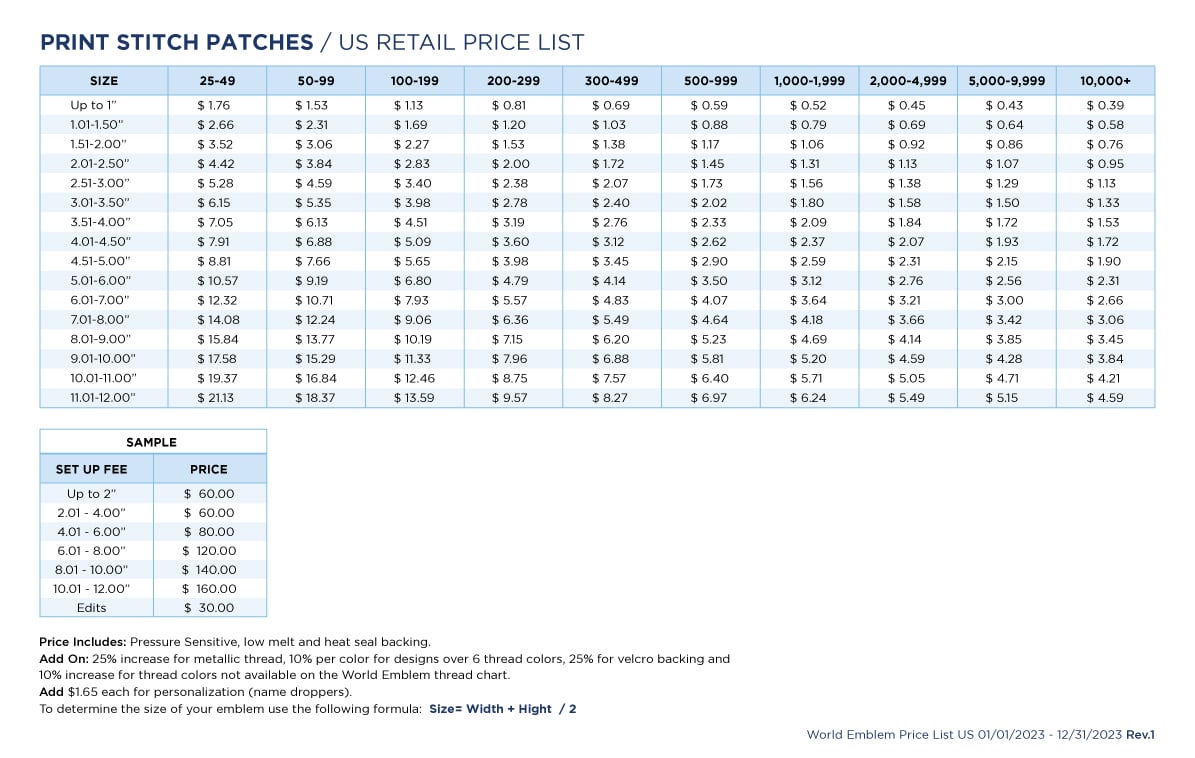

Pricing

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

Price Includes

Heat seal or pressure-sensitive backing.

Add-ons

• 25% increase for metallic thread
• 10% per color for designs over 6 thread colors
• 25% for velcro backing
• 10% increase for threads not available on the World Emblem thread chart
• $1.65 each for personalization (name droppers)

Electronic Proof

A digital sample via email is available in 24 hours. Edits are allowed.

Set-up Charges

One-time sample and setup fees.

• Up to 4.00”: $60.00
• 4.01 - 6.00”: $80.00
• 6.01 - 8.00”: $120.00
• 8.01 - 10.00”: $140.00
• 10.01 - 12.00”: $160.00
• Edits: $30.00

Production Time

Samples will take two days plus shipping. Production time will take five days plus shipping on an order up to 500 pieces. Add one day per 500 pieces.

Discover the perfect colors for your projects. View our Digital Threads and Fabrics Color Chart.
