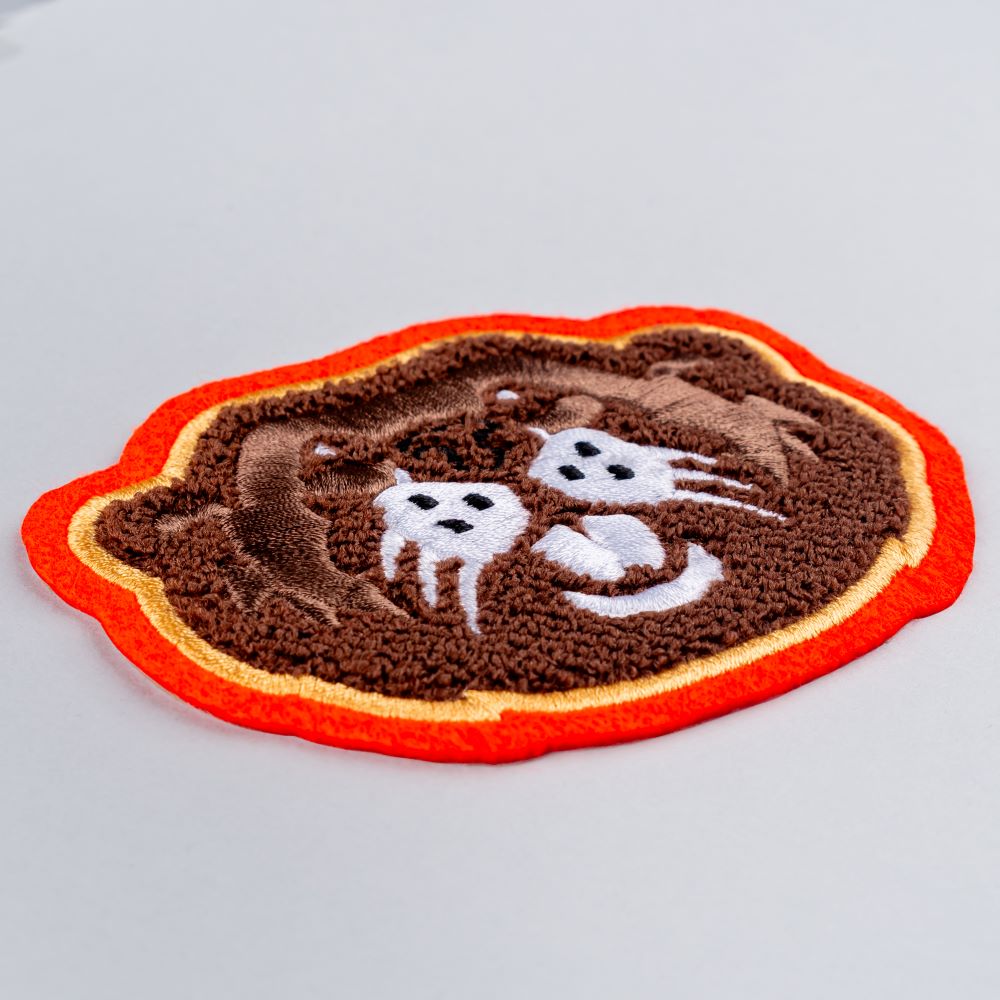

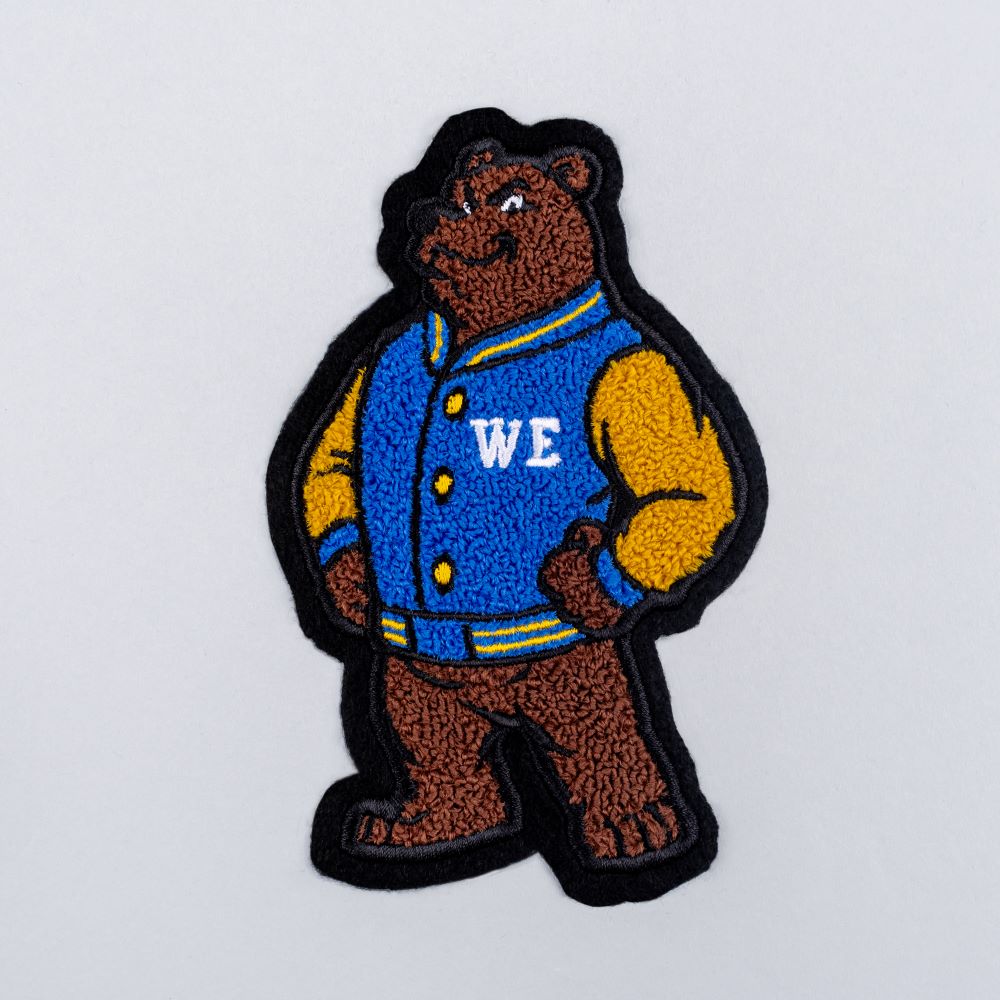

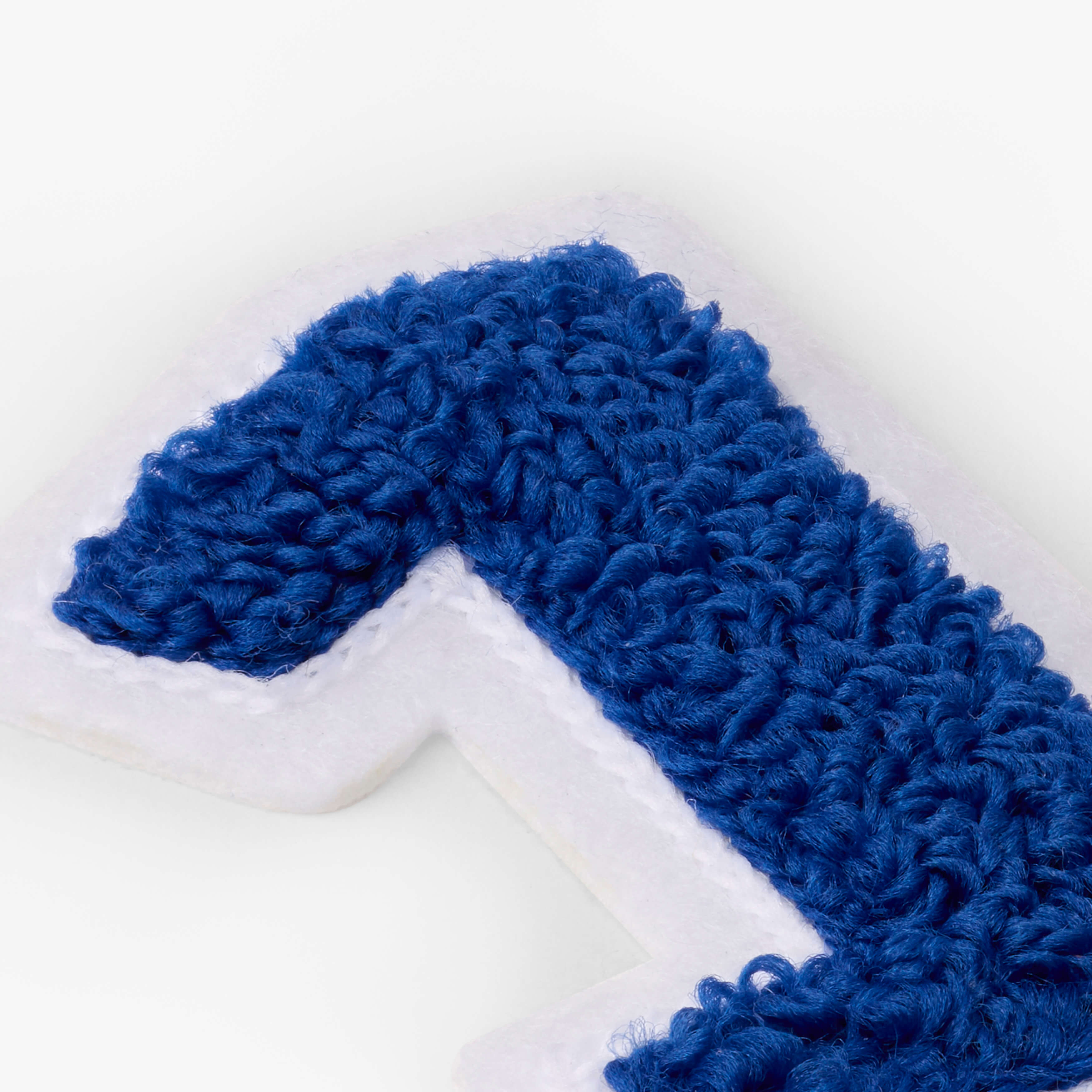

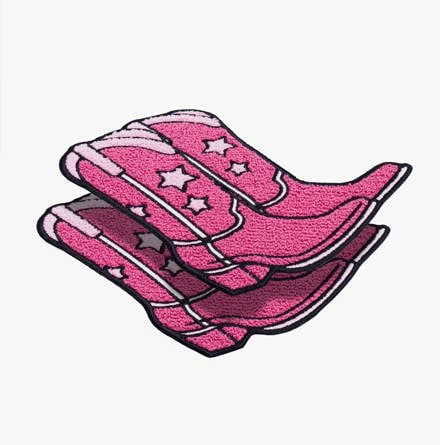

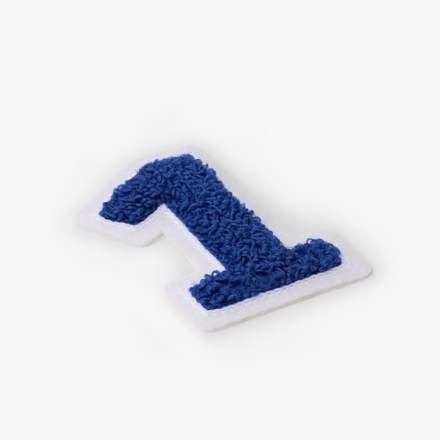

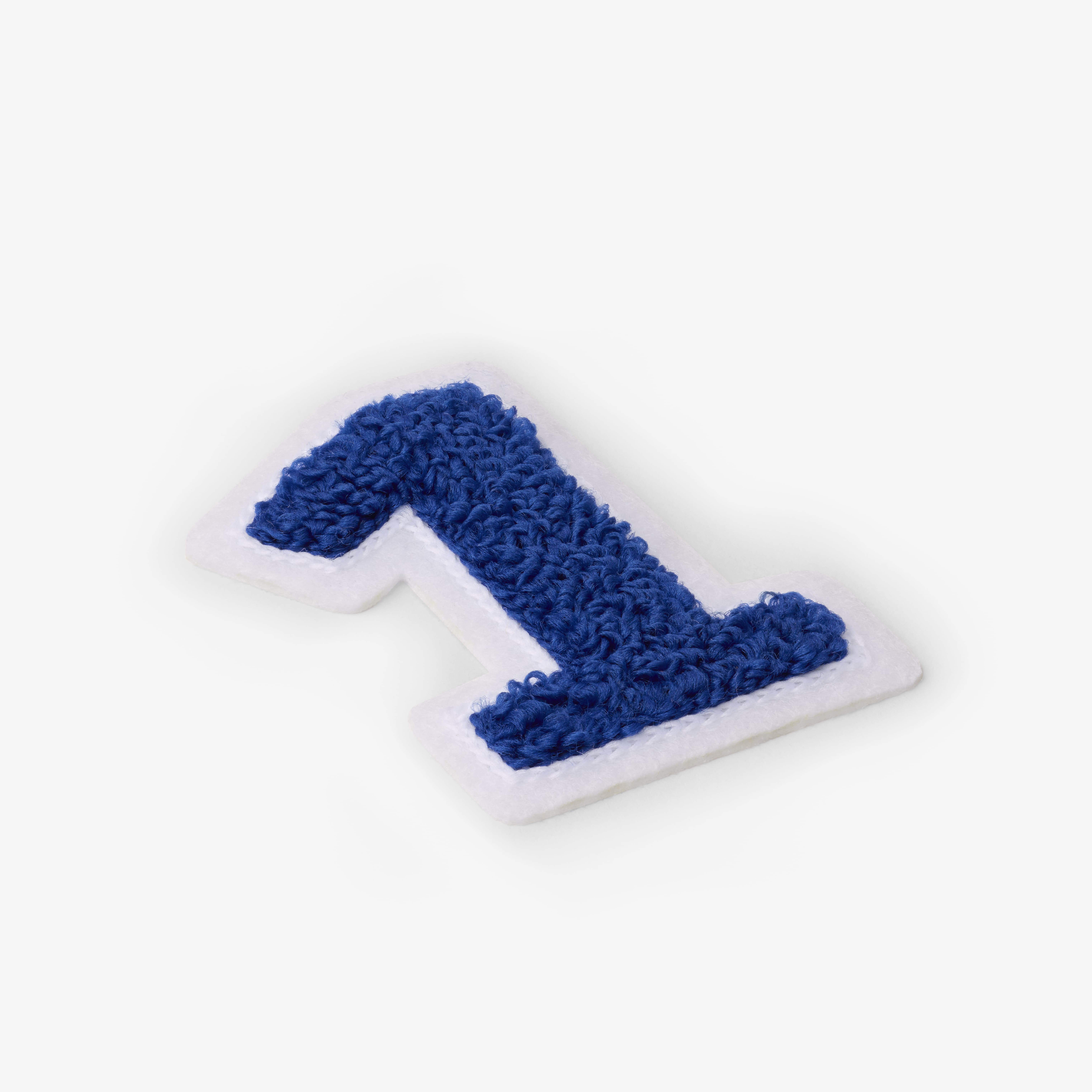

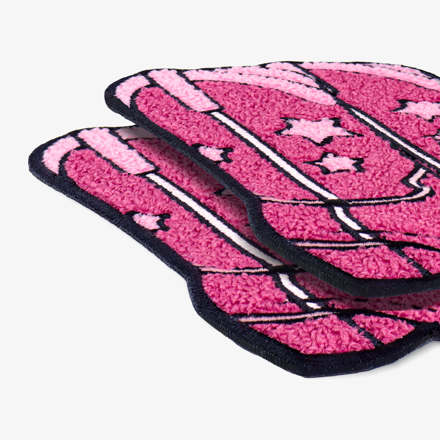

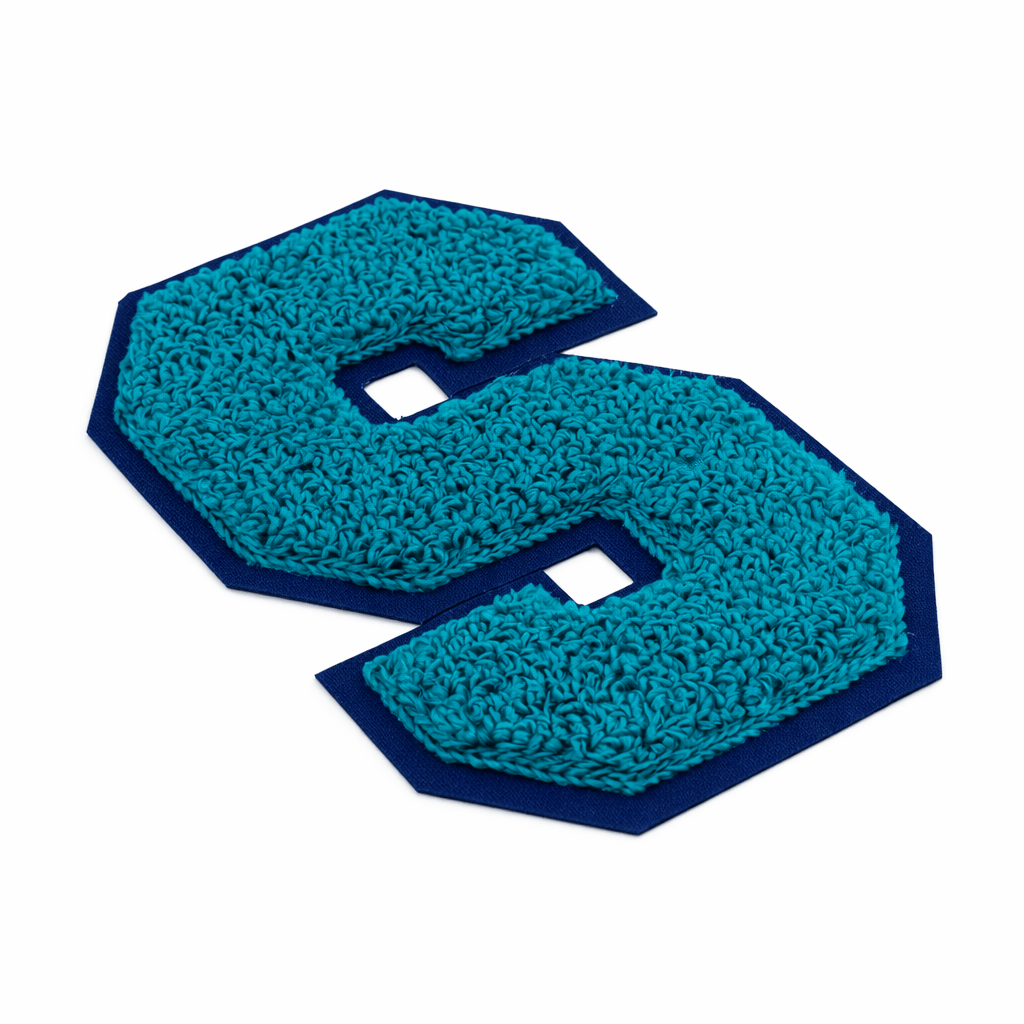

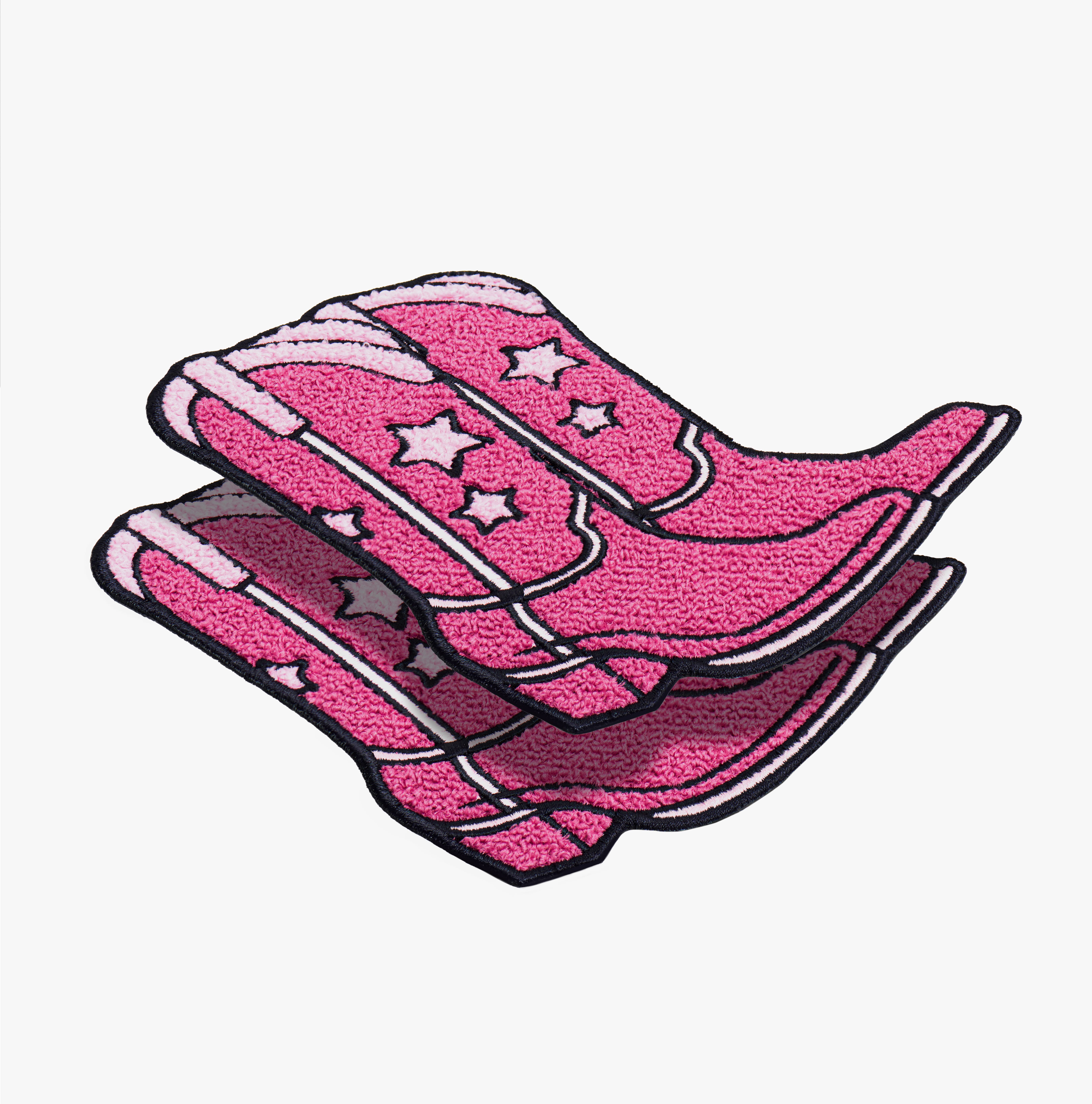

Nostalgia is what our Chenille Patches will bring you! A letterman jacket will come to mind, however that's only the beginning as you can achieve far more than that with our Chenille. Cut to shape fully customizable with option for Embroidery combination. Ideal for small details! Choose from a wide array of
thread & felt colors, including Gold & Silver Glitter! Whether you prefer a classic, retro, or artistic style, the choice is yours to make your mark on the world!
Don’t forget your Chenille Color Chart that shows the true colors of the material to make color matching easy and convenient.
EMBLEM SIZE LIMITS:
Min – 2”W X 2”H
Max – 12”W X 16”H
CHENILLE TEXT AND ELEMENTS:
Text minimum: 30mm H x proportional W
Elements minimum: 3mm x 3mm
Internal cut-outs: 10mm
Patch must consist of 60% Chenille minimum
EMBROIDERY TEXT AND ELEMENTS:
Text minimum: 6mm H x proportional W
Elements minimum: 1mm x 1mm
Internal cut-outs: 10mm
Patch must consist of 40% Embroidery maximum
DESIGNS:
If a complex design is provided, World Emblem's designers will make necessary alterations to comply with product restrictions. No area of felt should be left without thread.
Custom shapes only.
World Emblem specialists will decide the perfect combination of plush chenille and intricate embroidery to enhance your product, when a combination of both is needed.
TEXT WITHIN DESIGNS:
Text sizes ranging from 30mm to 45mm must be exclusively in block font. For text measuring larger than
45mm, other font types are permitted, aiming to match them as closely as possible.
THREAD COLORS:
EDGE:
All patches must have a felt fabric outer edge.
For emblems smaller than 6.9" x 6.9" the outer edge should be 4mm (+/- 1.5mm) For emblems bigger than 7" x 7" the outer edge should be 6mm (+/- 2mm) Inner outline of entire design must be embroidered & measure 3mm (+/- 0.5mm)
Available Felt Colors
*Felt color tones are subject to slightly vary.

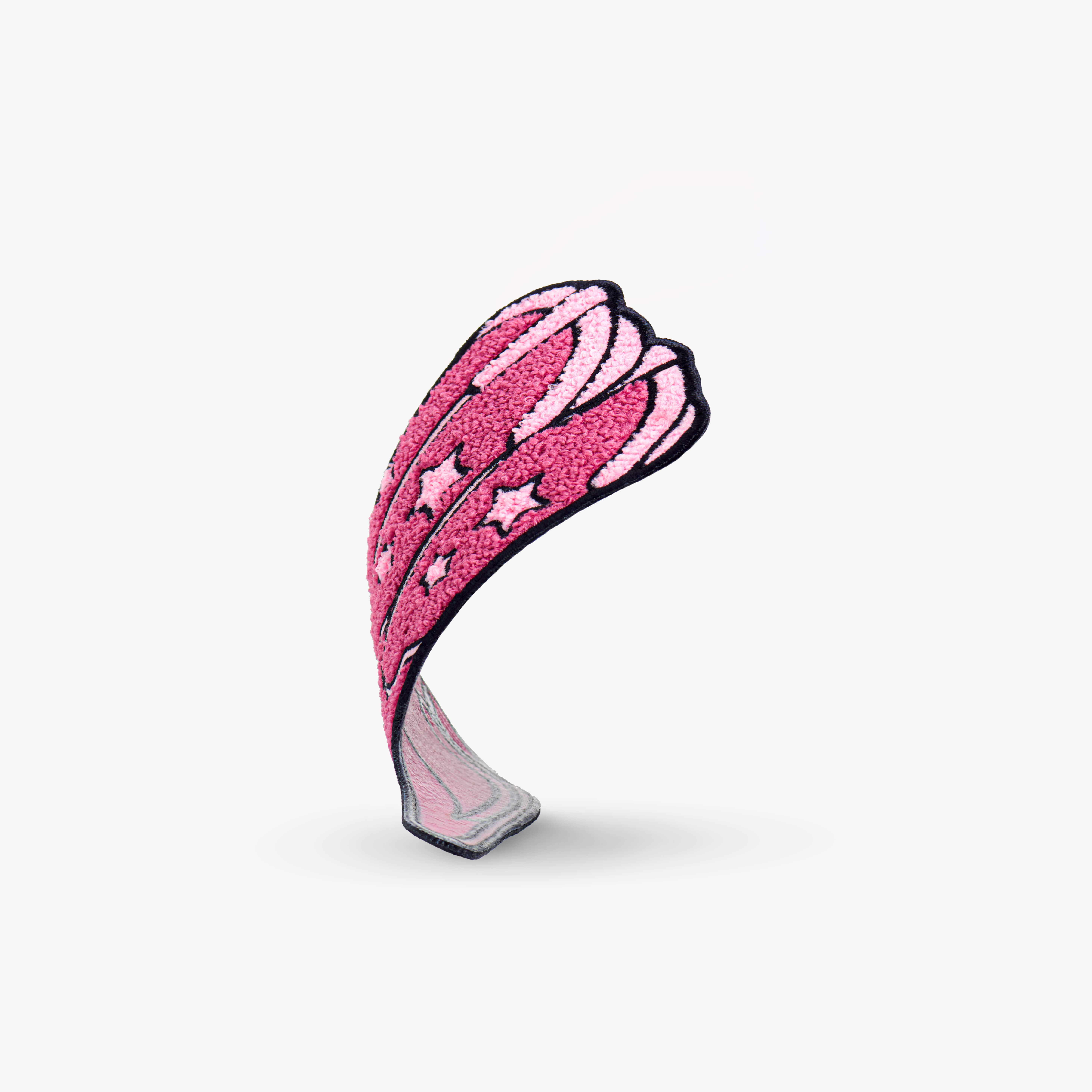

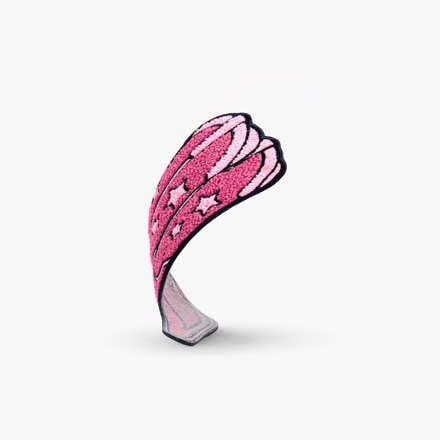

BACKING:
• Low Melt Heat Seal
• Pressure Sensitive
ELECTRONIC PROOF
NOTE: Be aware that digital proof may vary from physical sewn pieces.
1 day
PHYSICAL SAMPLE
3 days
PRODUCTION TIME
Up to 500pcs: 5 days
1 additional day for every 250pcs
Transit time not included.
FLOATING ELEMENTS:
All Chenille+Embroidery Patches must have a uniform background that supports every text and elements. Floating elements are not allowed.
WASHING INFORMATION
Chenille Patches will withstand up to 25 domestic washing machine cycles.
SHELF LIFE
One year shelf life before applying (room temperature-controlled environment).
Note: World Emblem encourages our clients to test applications of our products onto their garments. World Emblem is not responsible for damages resulting from washing and laundering of any product purchased.
Revised 06.17.24
PRESSURE-SENSITIVE ON HARD GOODS
Make sure the application area is thoroughly cleaned. We recommend the use of rubbing alcohol. Remove paper backing and press firmly on the desired location.
APPLICATION SETTINGS FOR HATS - TOP & BOTTOM HEAT:
1. Set the press at 290-300° F for top heat, 315-320° F for bottom heat with 40-50 Psi of pressure.
2. Place the Chenille Patch on the desired location and secure it with thermal application tape
3. Cover the patch with a Flexstyle® Rubber Application Pad
4. Press for 14-17 seconds.
5. Remove the hat from the heat press and let it cool
LOW MELT HEAT SEAL ON GARMENTS - TOP HEAT
1. Set the press at 350-360° F with 40-50 Psi of pressure.
2. Pre-heat garment for 15-20 seconds
3. Place the Chenille Patch on the desired location and secure it with thermal application tape
4. Cover the patch with a Flexstyle® Rubber Application Pad
5. Press for 15-20 seconds
6. Remove the garment from the heat press and let it cool
7. Afer the patch is cool, remove the tape
DISCLAIMER:
World Emblem recommends testing the best combination of heat seal parameters before application.
World Emblem is not liable for any damages to garments during the
application process.
NOTE:
Please check out youtube.com/worldemblem for step by step instructions for applying our apparel
decoration
Pricing
Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.
To determine the size of your emblem, use the following formula:
Size = Width + Height / 2
Price Includes
Low melt or pressure-sensitive backing.
Electronic Proof
A digital sample via email is available in 48 hours. Edits are allowed. Note: Digital proof may very from physical sewn pieces.
Set-up Charges
One-time sample and setup fees.
Production Time
Sample is available in three days. Production time will take five days plus shipping on an order up to 500 pieces. Add one day per 250 pieces.
Discover the perfect colors for your projects. View our Digital Color Chart.
Ready to get started? Shop our Physical Color Chart now.
Our patches can be applied in-house with low-melt heat seals - saving you time and money on shipping.
Review a digital proof shortly after submitting your design to avoid any design surprises.
Our design team is here to help. We offer a range of services to help you take your ideas from sketches to reality.

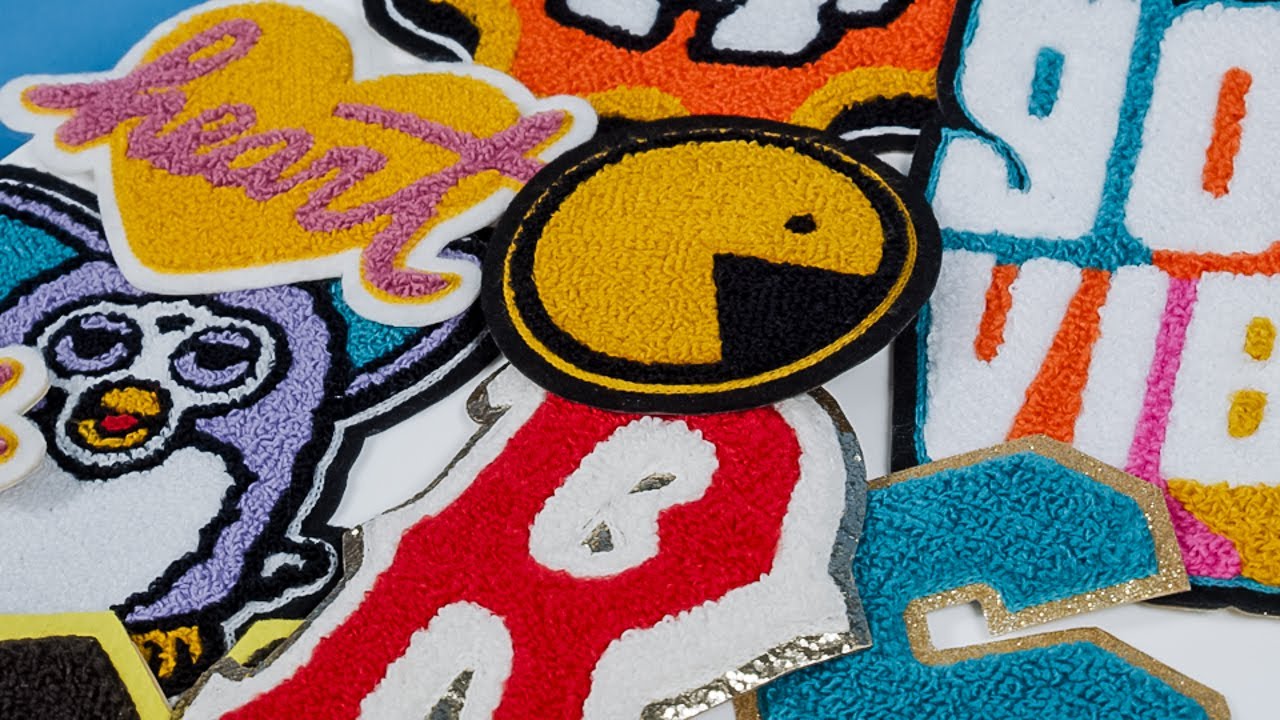

A popular, stylish choice for sportswear, Chenille Patches blend sporty aesthetics with fashion-forward designs to create a custom look that sends your message with confidence. Also known as letterman or varsity patches, our chenille patches add a comfortable and cozy feel to your designs.
Our instructional videos walk you through proper product applications, equipping you with the knowledge you need to enhance your brand with Chenille Patches.
Our instructional videos walk you through proper product applications, equipping you with the knowledge you need to enhance your brand with Chenille Patches.
Multiply your prediction with the right tools for the job. We offer a variety of heat press accessories to optimize your operation and enable endless design possibilities. From thermal tape to ergonomic stands, our accessories turn your heat press machine into an official emblem application operation!
