DESCRIPTION:

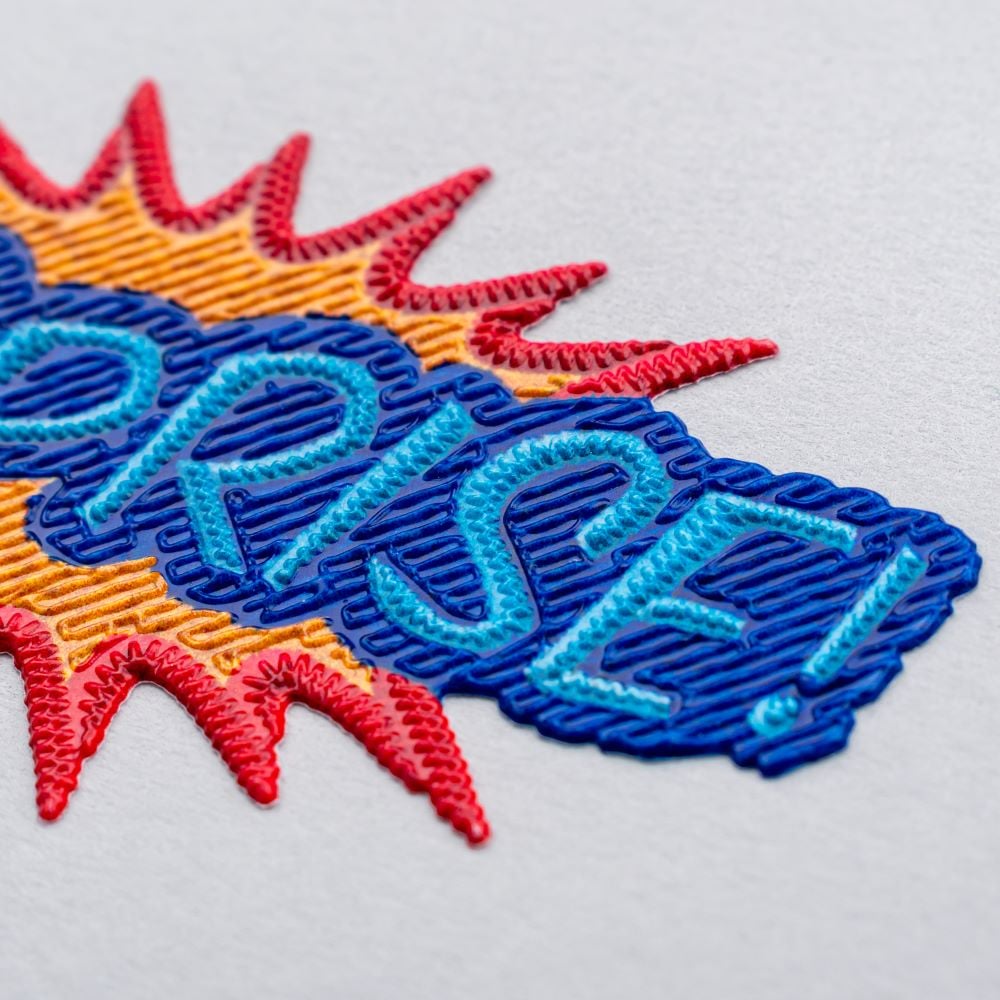

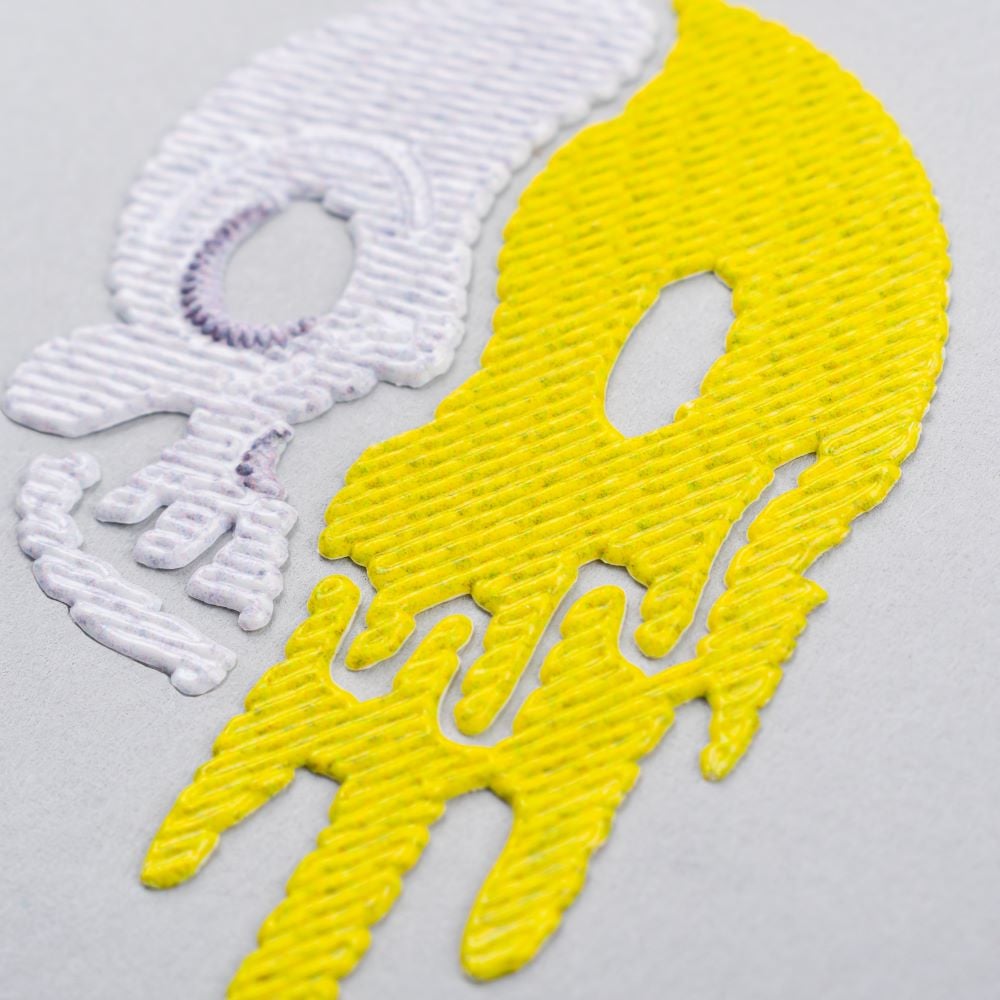

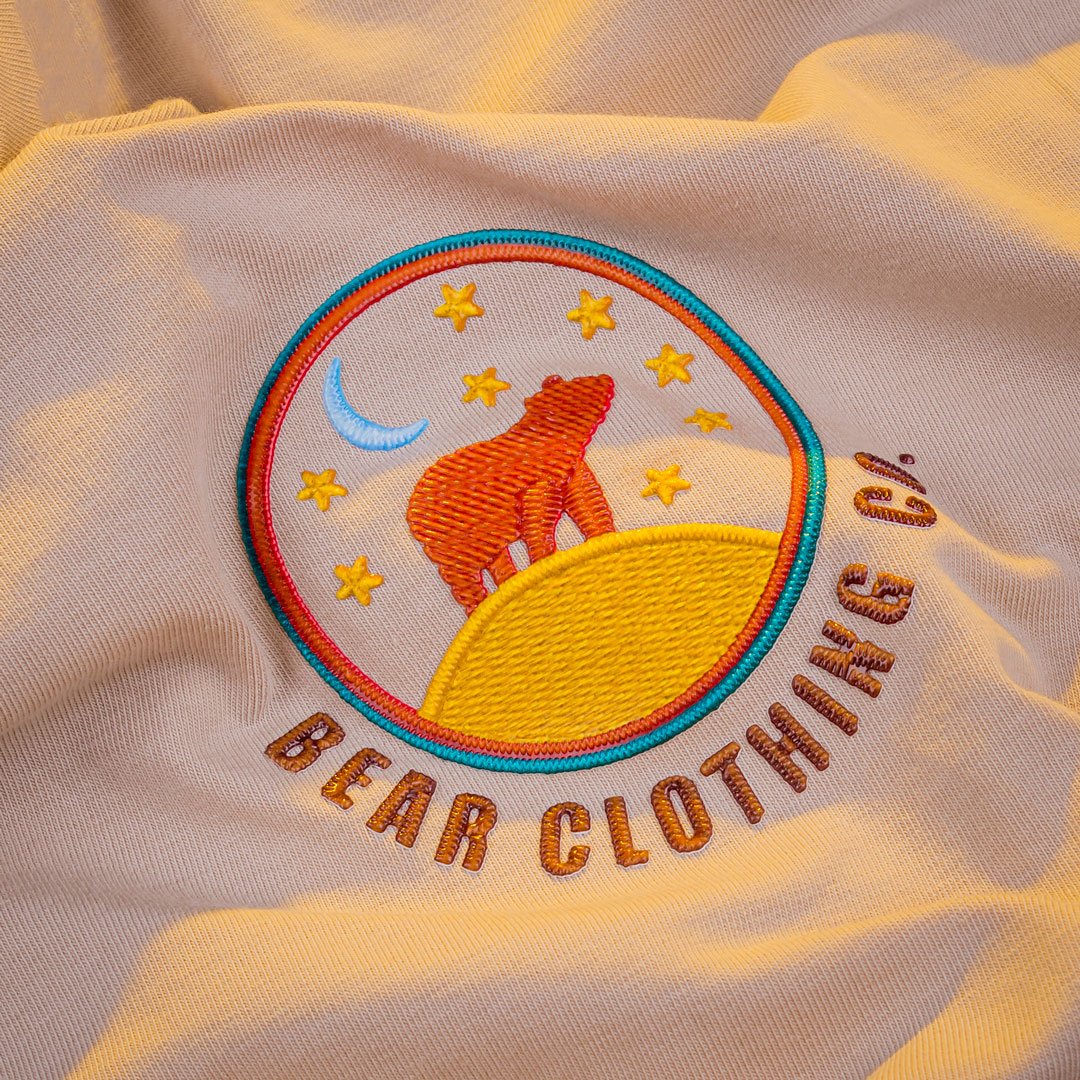

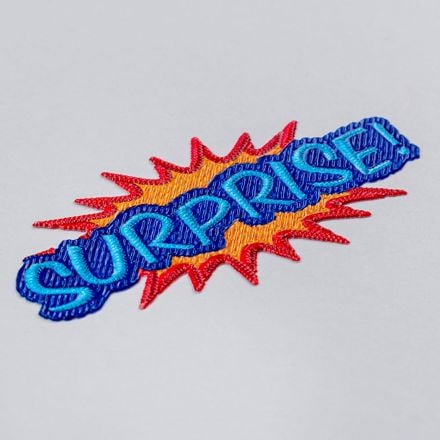

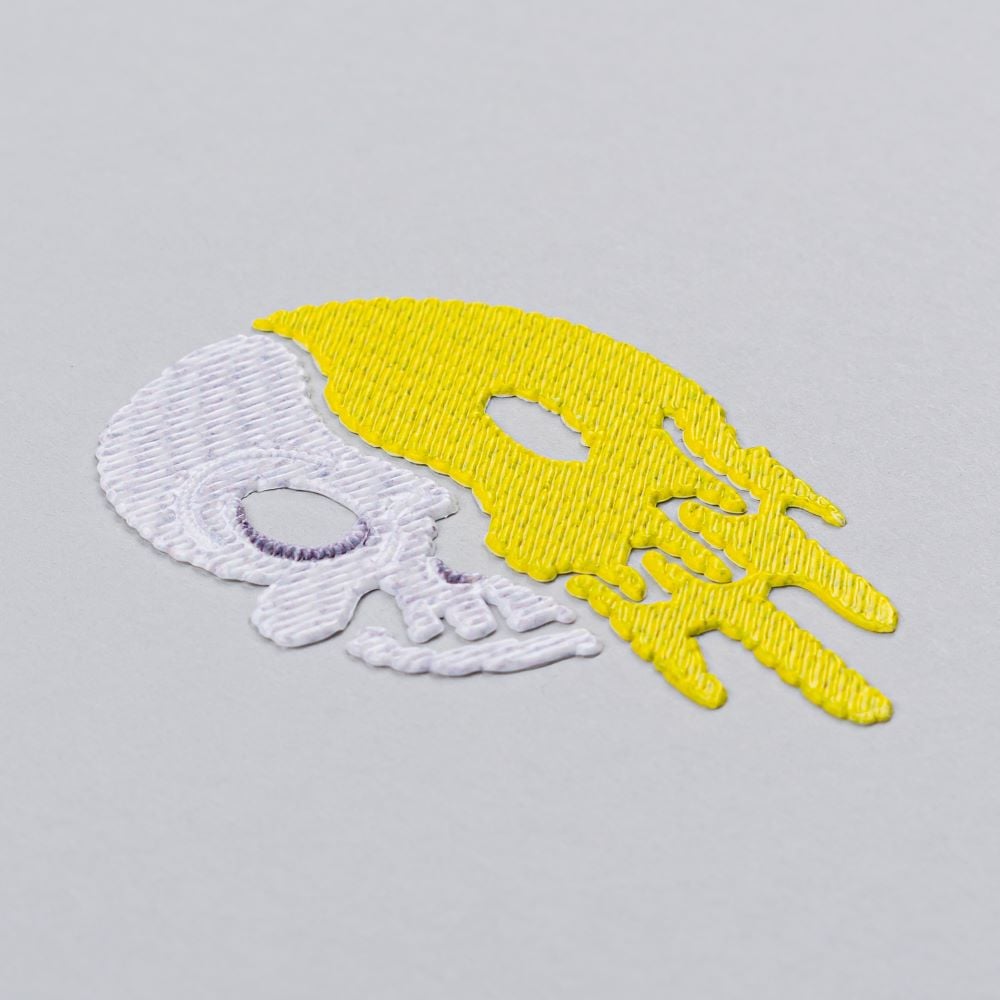

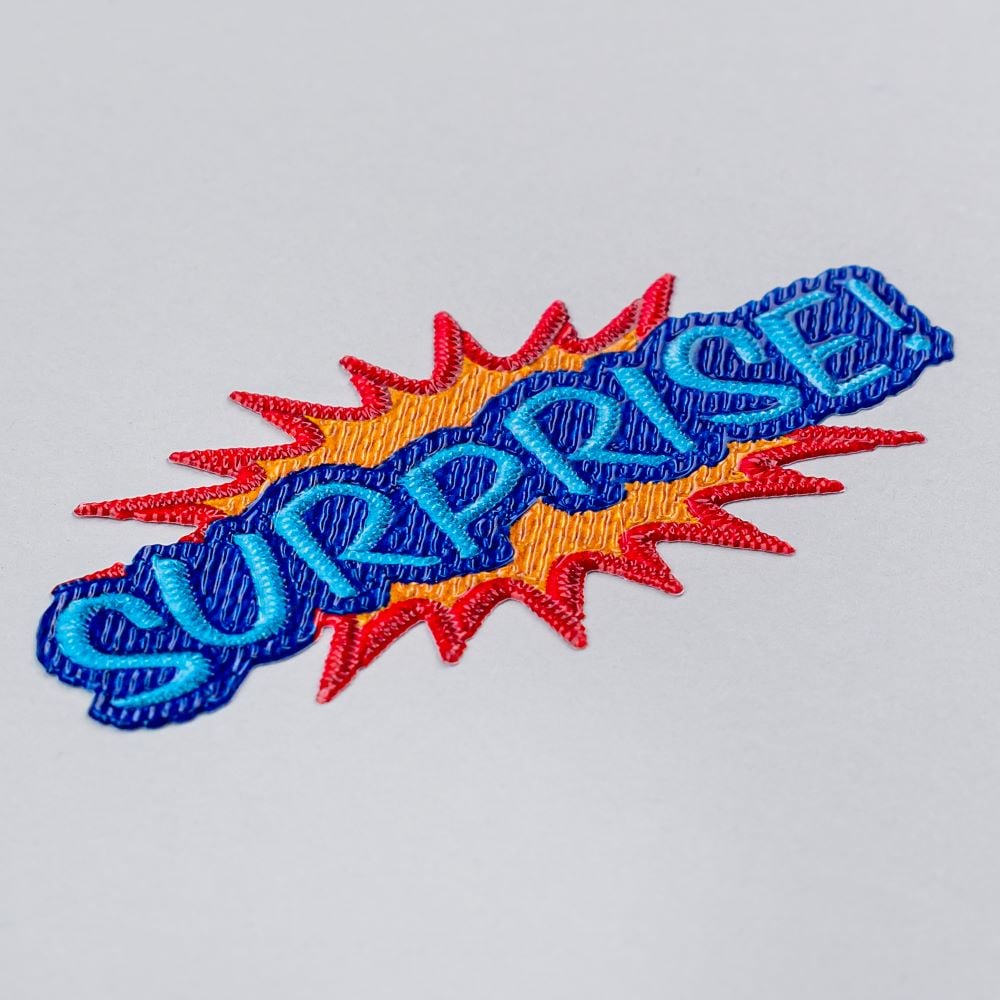

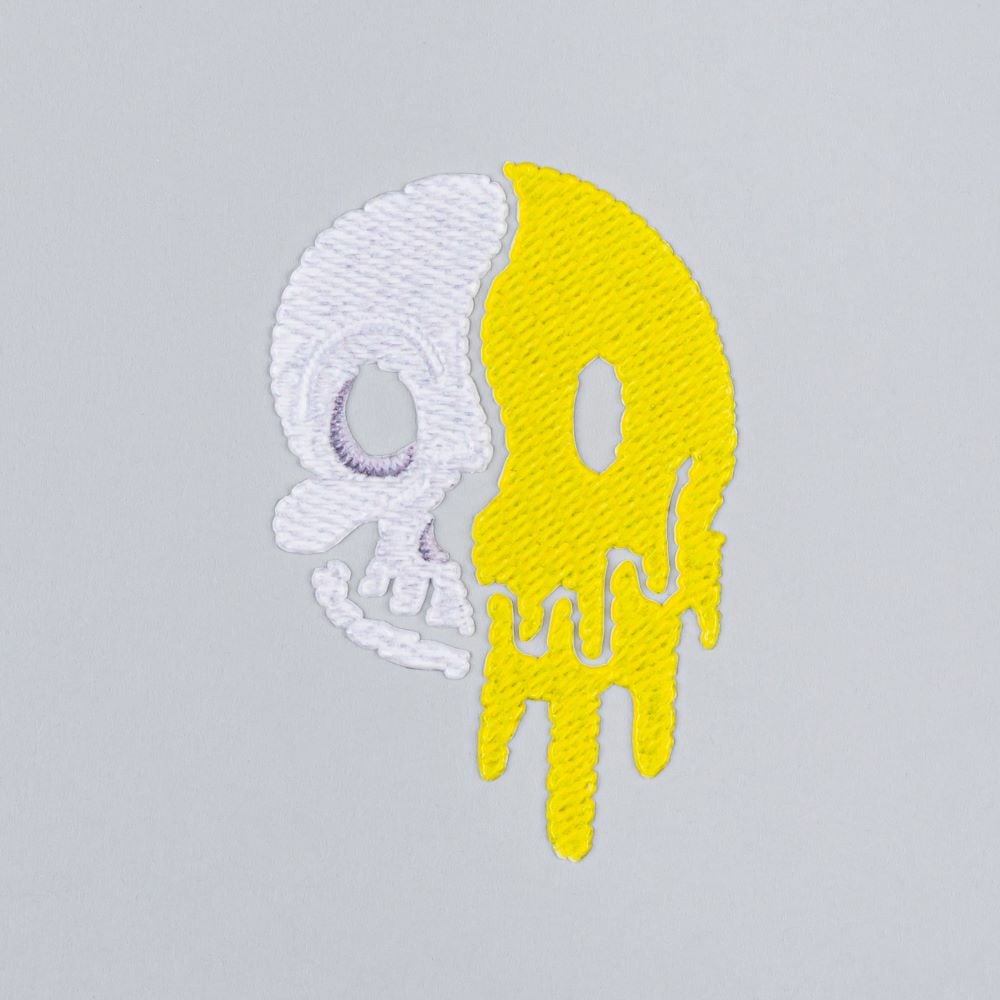

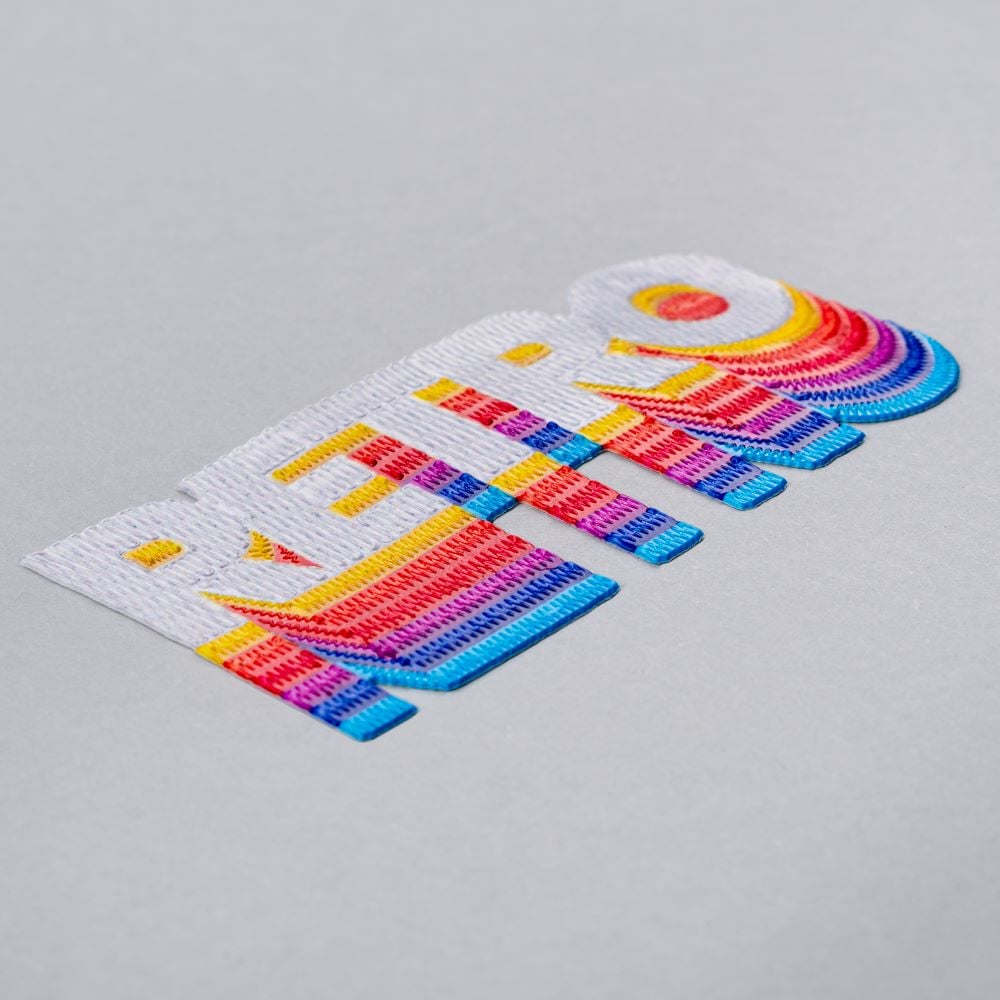

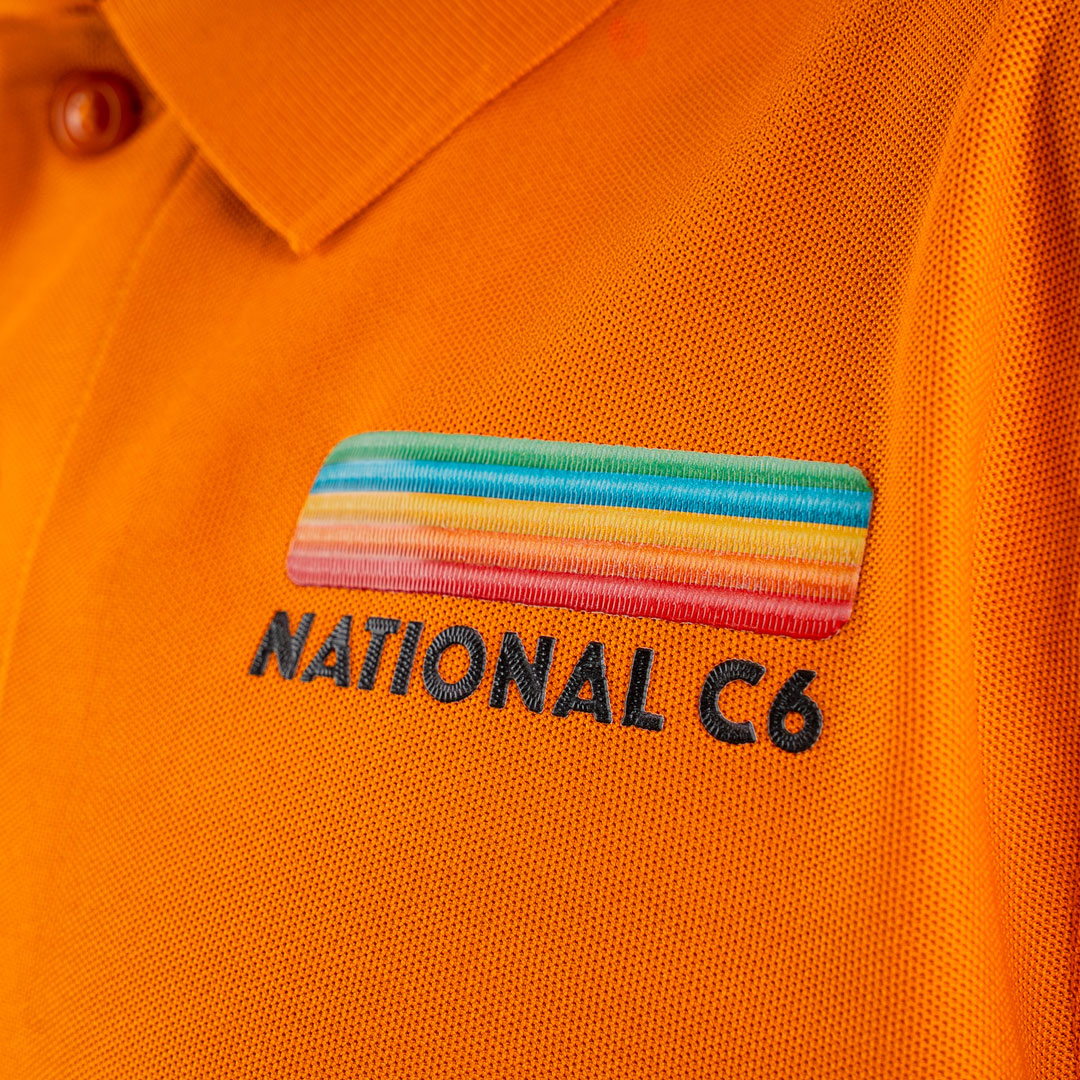

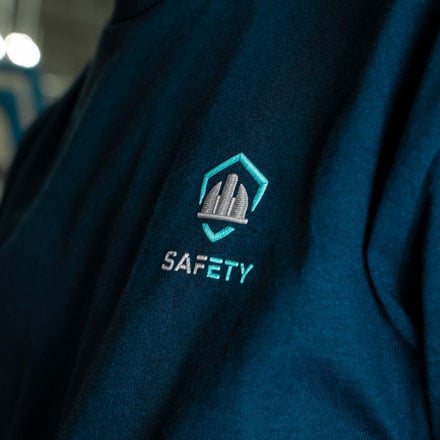

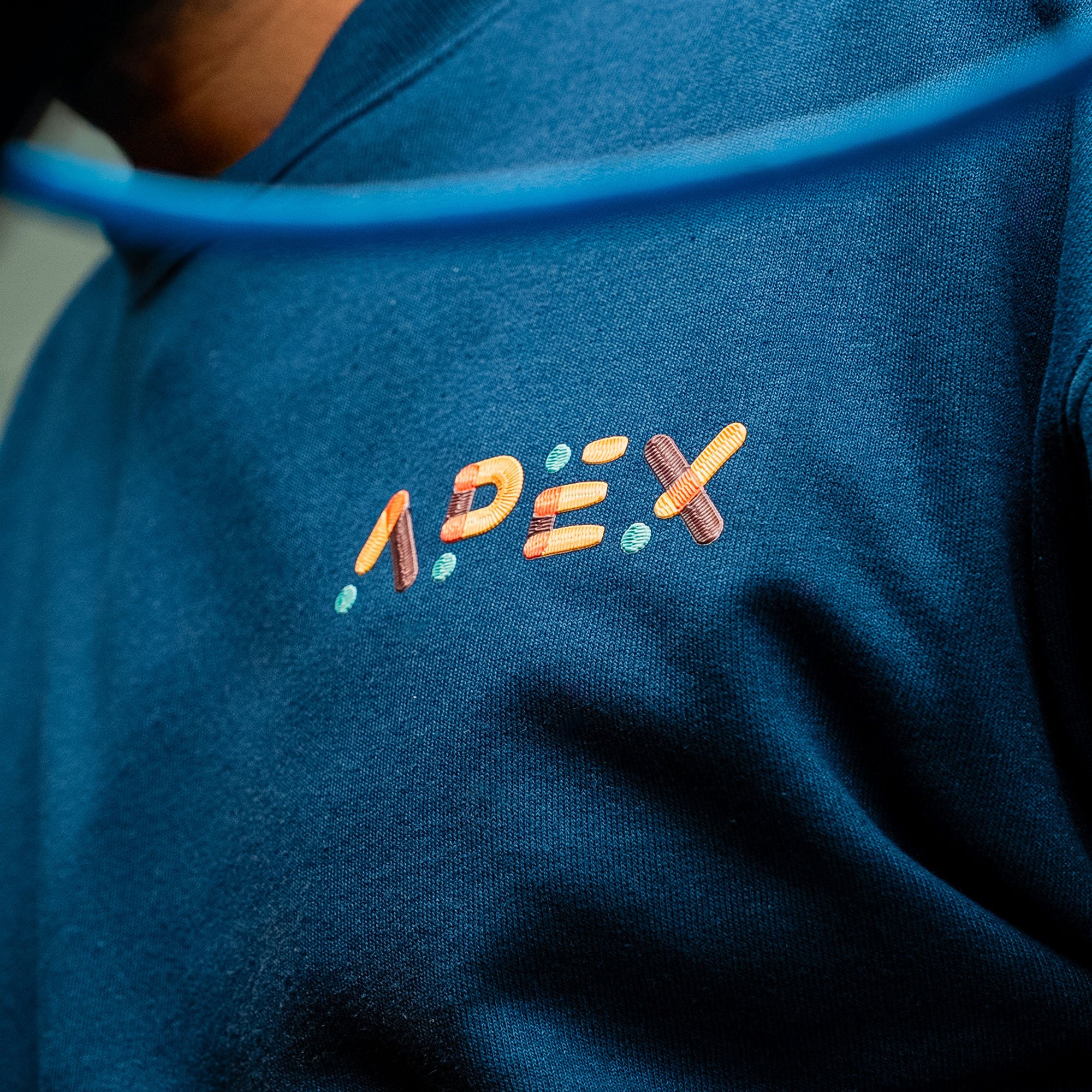

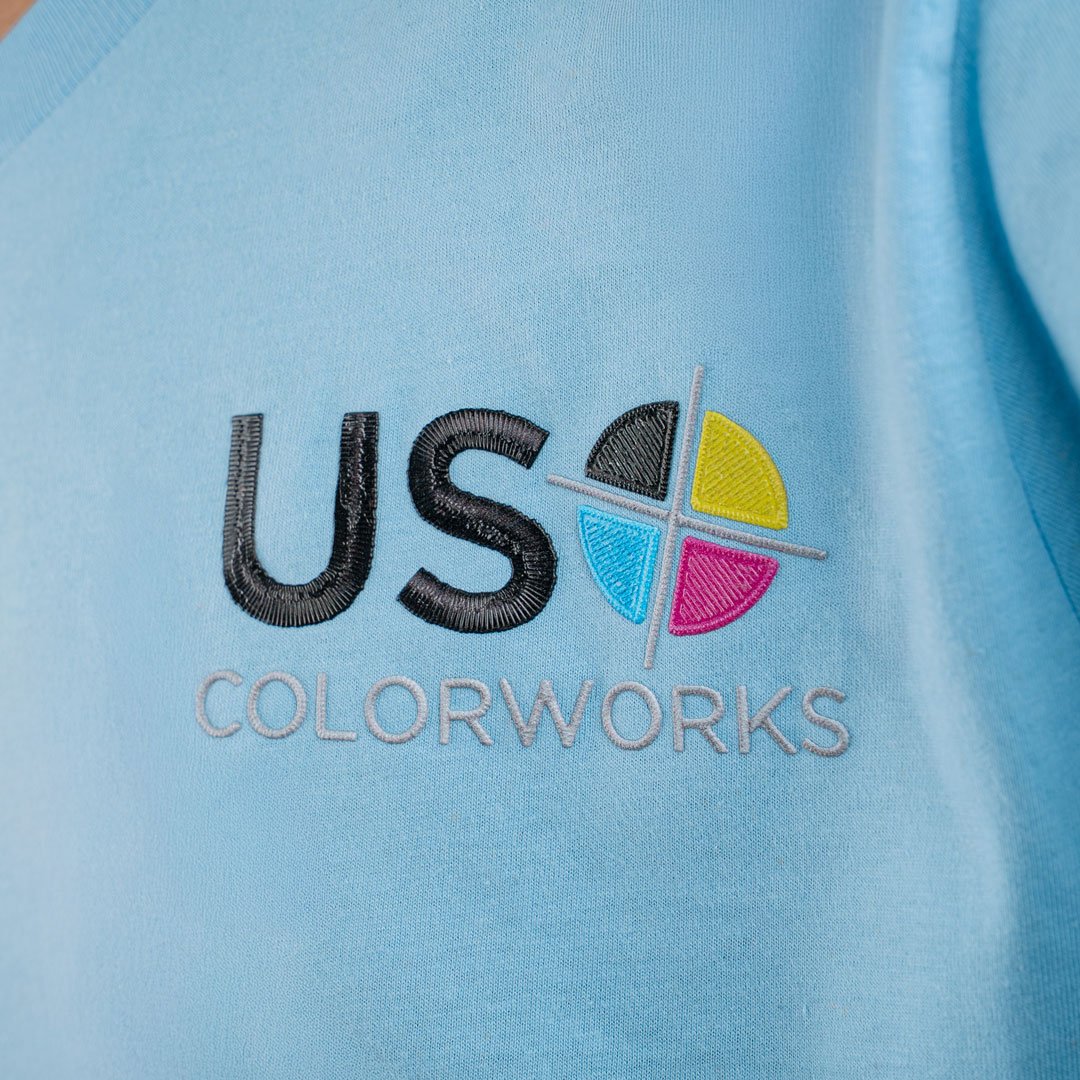

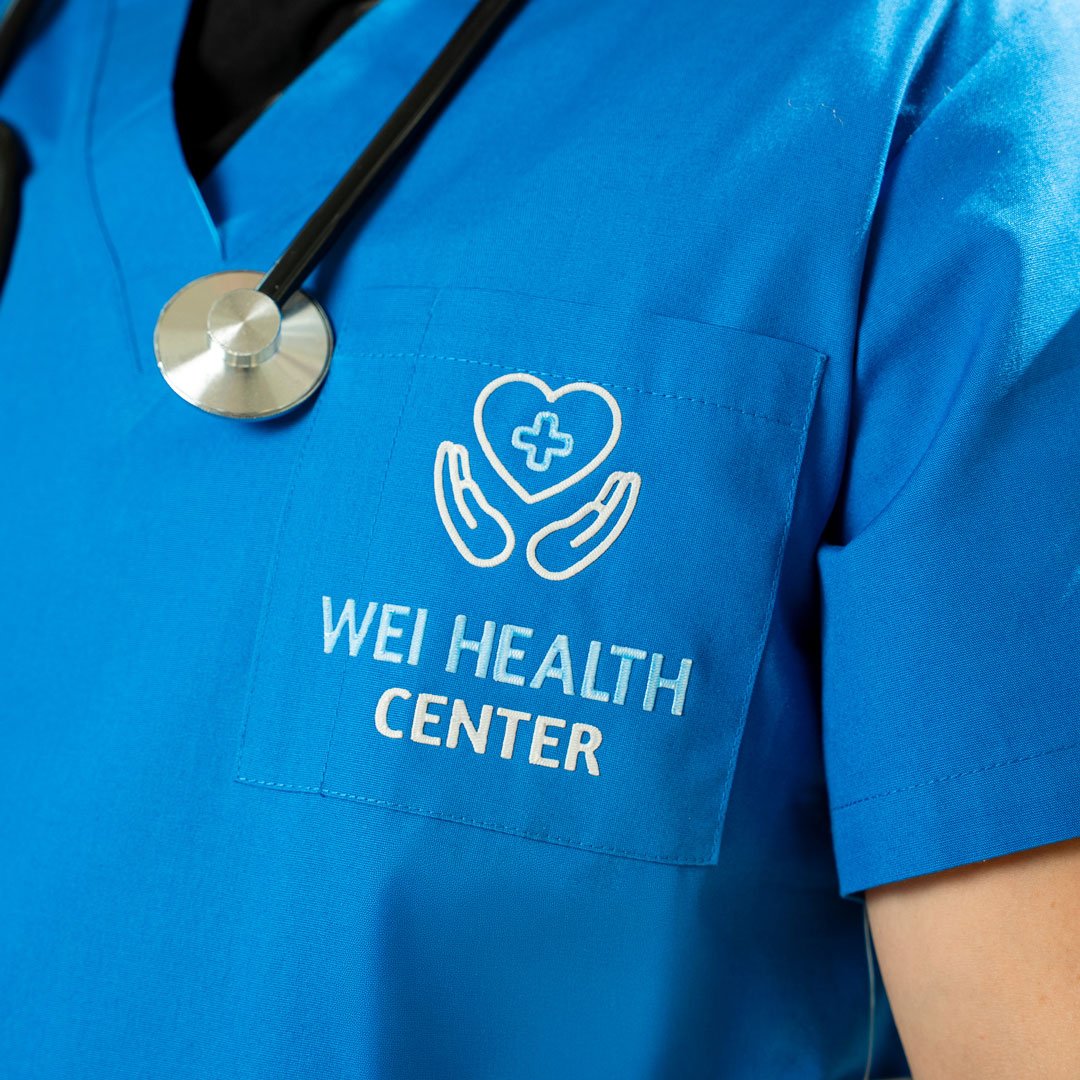

Our state-of-the-art emblem solutions are perfect for a wide range of applications. From corporate branding to personal projects, Flexbroidery emblems are built to last, making them perfect for uniforms, accessories, and various types of apparel.

EMBLEM SIZE LIMITS:
Minimum: 0.5” x 0.5”
Maximum: 3.75” x 4”

COLORS:
This product accepts RGB, CMYK and Pantone color codes.
Color match is only available providing Pantone Coated color codes.
Neon, glitter and reflective colors are not available for printing.

BACKING:
LOW MELT - This backing is more commonly used on wearables and
applied with a heat press.

APPLICATION VIDEOS AVAILABLE AT

PRESSURE-SENSITIVE
Make sure the application area is thoroughly cleaned. We recommend the
use of rubbing alcohol. Remove paper backing and press firmly in the
desired location.

Remove clear top carrier.

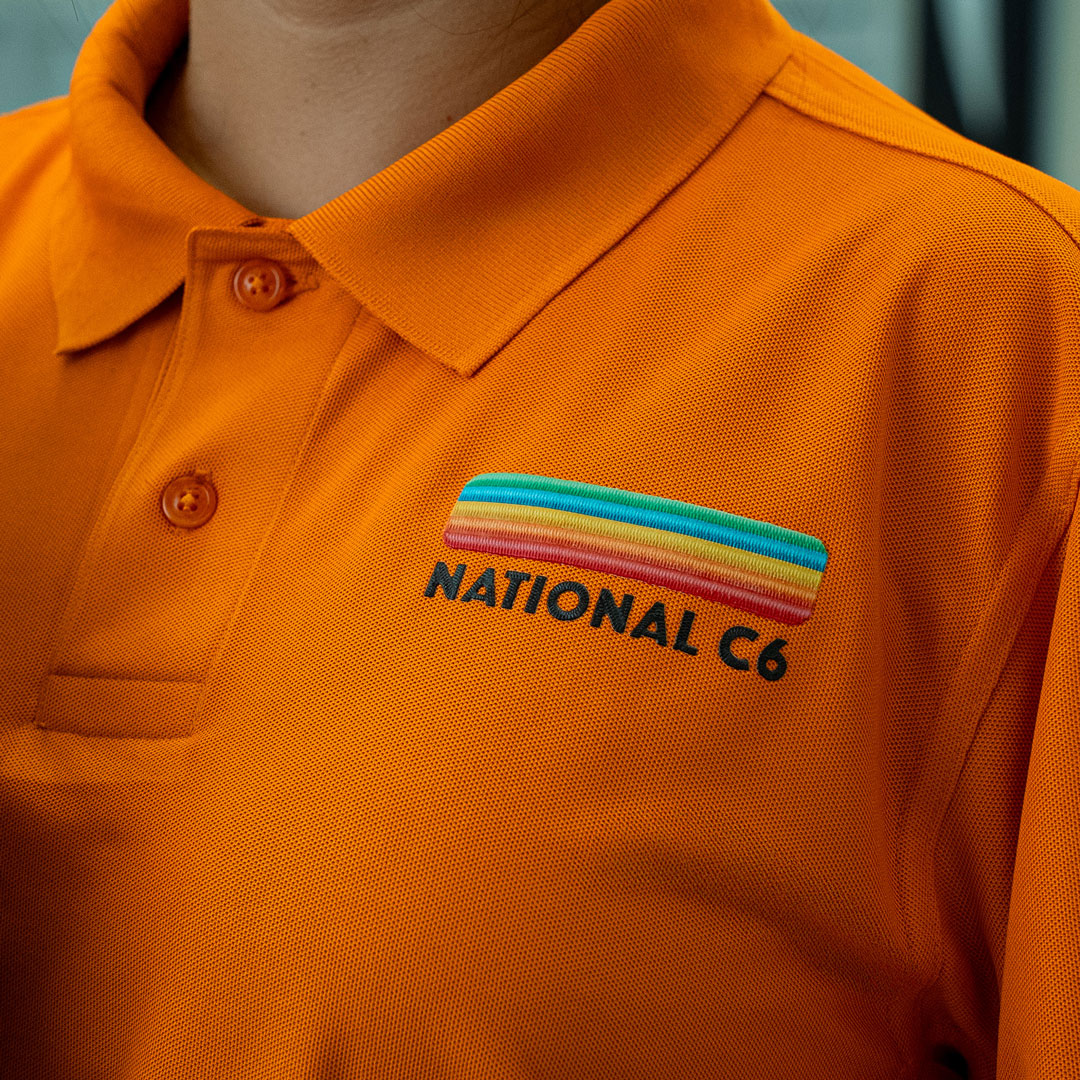

LOW MELT BACKING WITH A TOP HEAT PRESS: GARMENTS

1. Set the press at 355-365° F for top heat with 40-50 psi of pressure.
2. Place the garment on the heat press with the FlexStyle® silicon pad on top
   and press for 15-20 seconds to preheat the garment.
3. Place your Flexbroidery™ emblem on desired location. Place the
   Flexstyle® Rubber Application Pad over the design.
4. Press for 15-20 seconds.
5. Remove the shirt from the heat press and remove the clear cover once
   cooled.
6. Optional Matte Finish:
   For a matte finish, repress the patch using the FlexStyle® silicon pad.
   Ensure the clear carrier is removed.
   Maintain the original temperature settings, for 10 seconds.

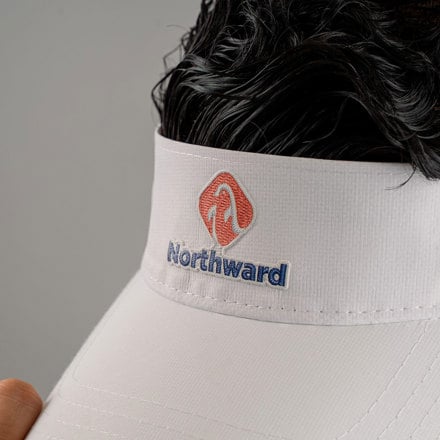

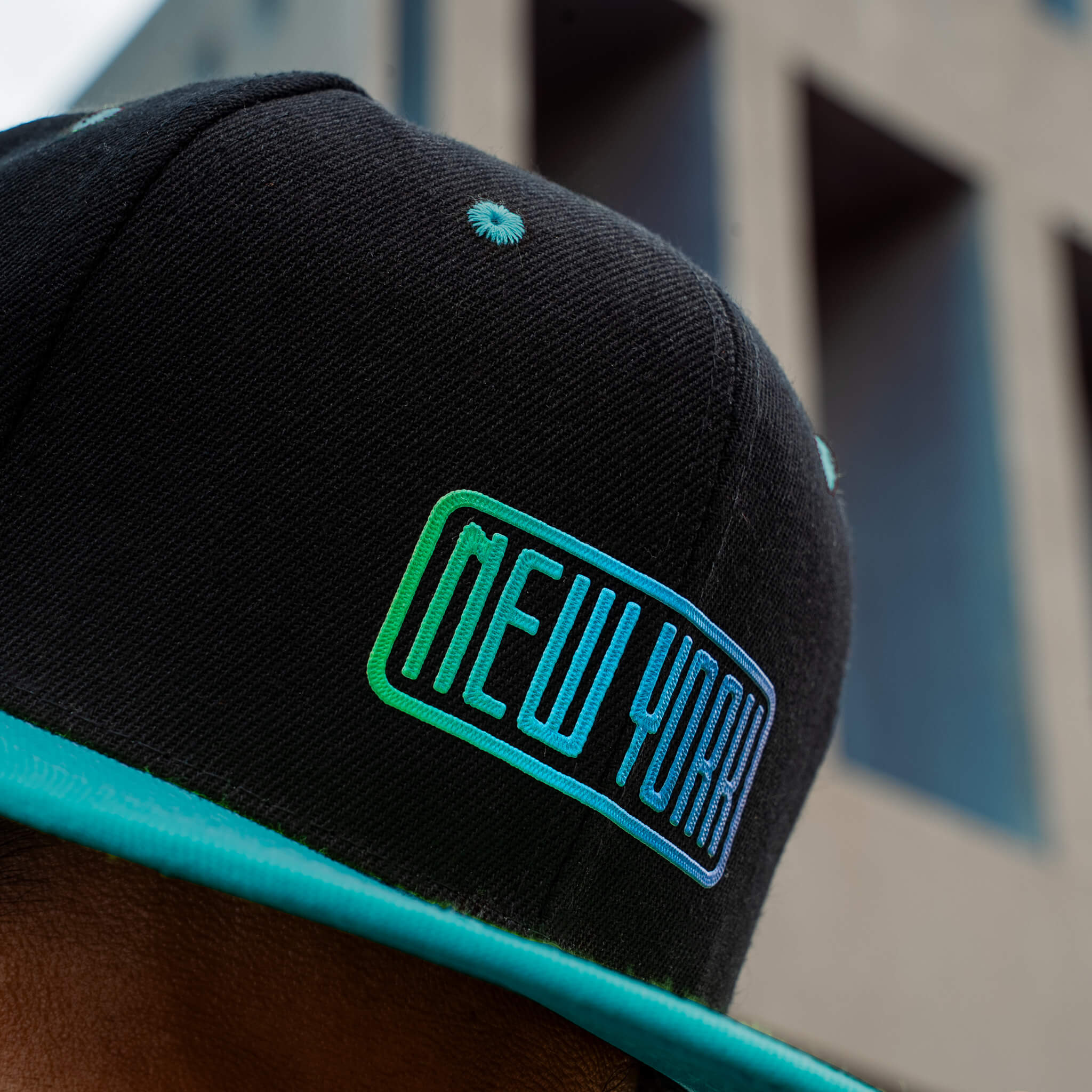

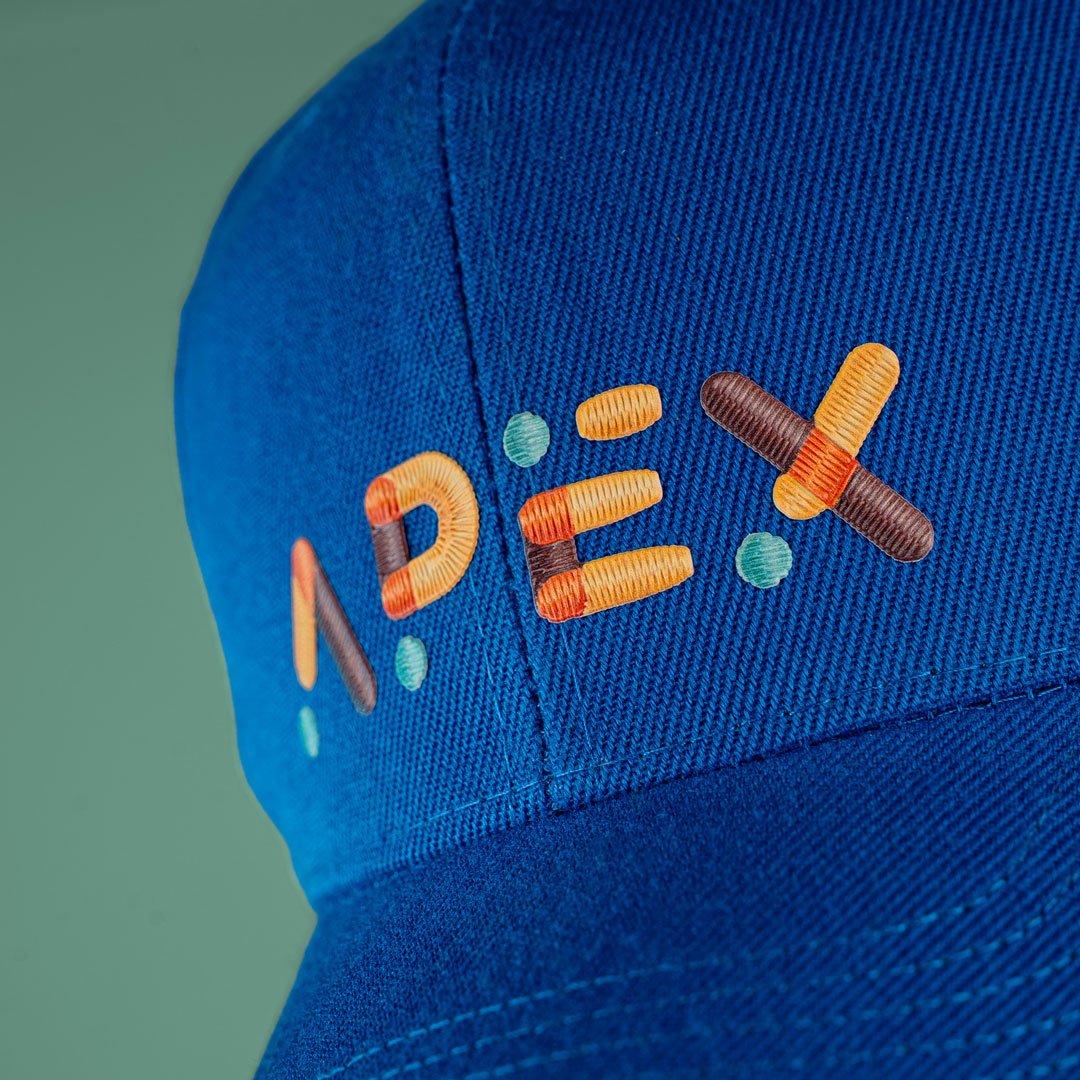

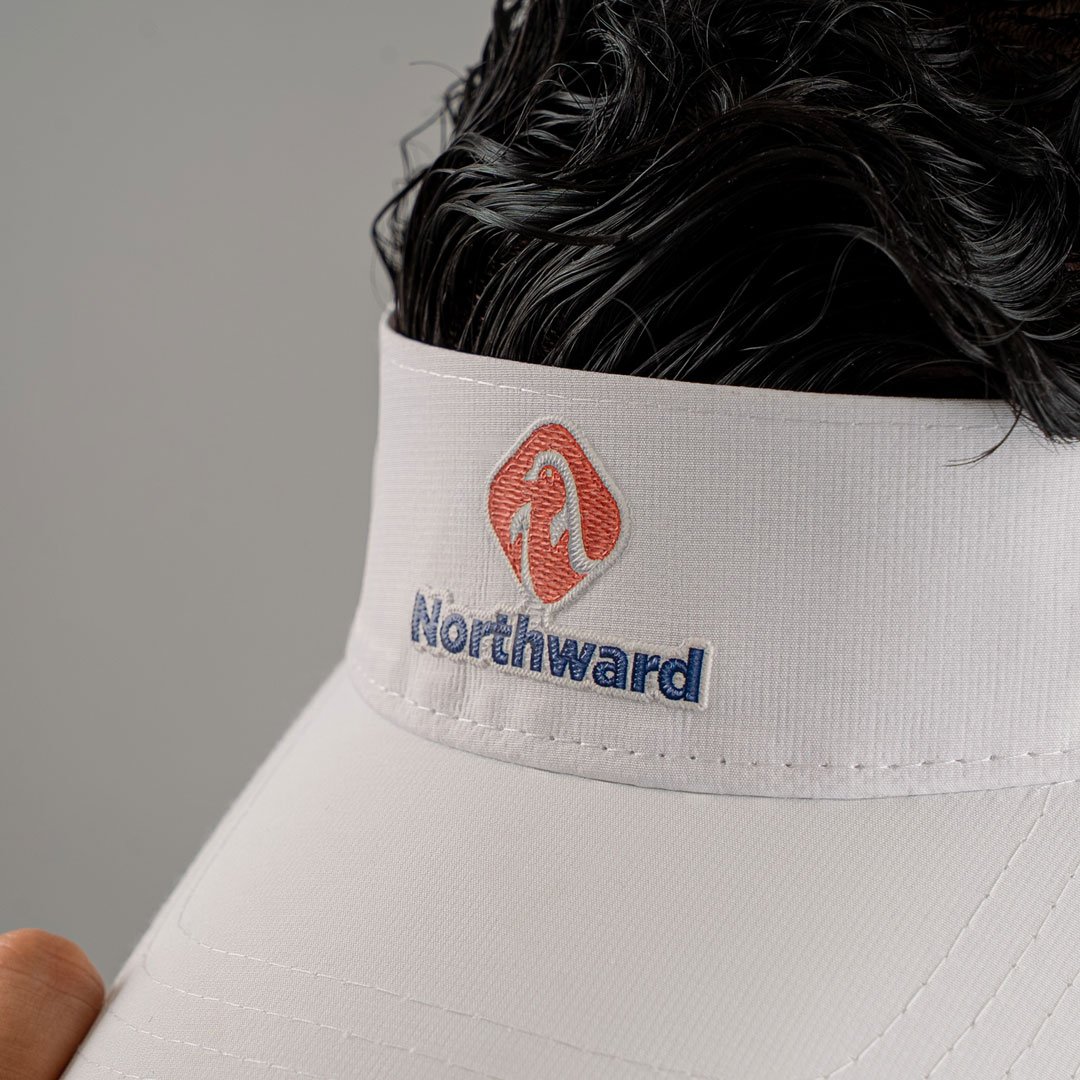

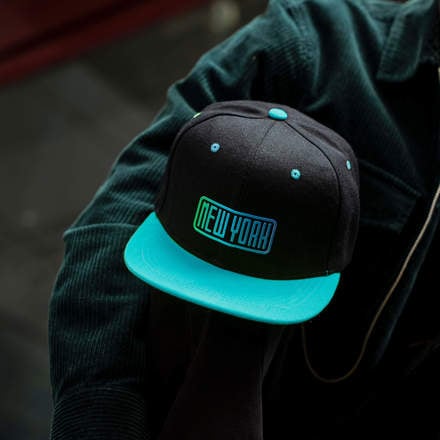

LOW MELT HEAT SEAL ON HATS - USING THE IQ 360 HAT HEAT PRESS

1. Set the press at 275°-285° F for top heat and 315°- 320°F for bottom heat with 50-70 psi of pressure.
2. Place the hat on the heat press, leaving out the inner layer of the cap. Use the adjustment lever for a better grip.
3. Place your Flexbroidery™ emblem on desired location. To secure the emblem and prevent it from moving, use Thermal Tape.
4. Place a Flexstyle® Rubber Application Pad over the design.
5. Press for 15-18 seconds.
6. Deactivate the adjustment lever and remove the hat from the heat press.
7. Remove the Thermal Tape and the clear cover once the emblem has cooled.
8. Optional Matte Finish:
   For a matte finish, repress the patch using the FlexStyle® silicon pad.
   Ensure the clear carrier is removed.
   Maintain the original temperature settings, for 10 seconds.

DISCLAIMER
World Emblem recommends testing the best combination of heat seal
parameters before application. World Emblem is not liable for any
damages to garments during the application process.

PRICING

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

PRICE INCLUDES

• Heat seal or pressure-sensitive backing

ELECTRONIC PROOF

A digital sample via email is available in 48 hours. Edits are allowed.

SET-UP CHARGES

One-time mold charge and artwork fees

• Electronic Simulation: $25.00
• Mold: $60.00

PRODUCTION TIME

Once the digital sample is approved, the mold is made in one day. Samples will take two days plus shipping. Production time will take five days plus shipping on an order of up to 500 pieces. Add one day per 500 pieces.
