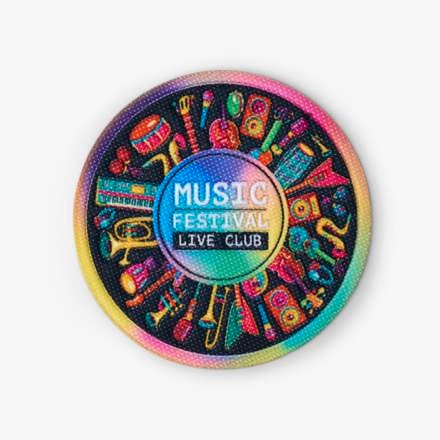

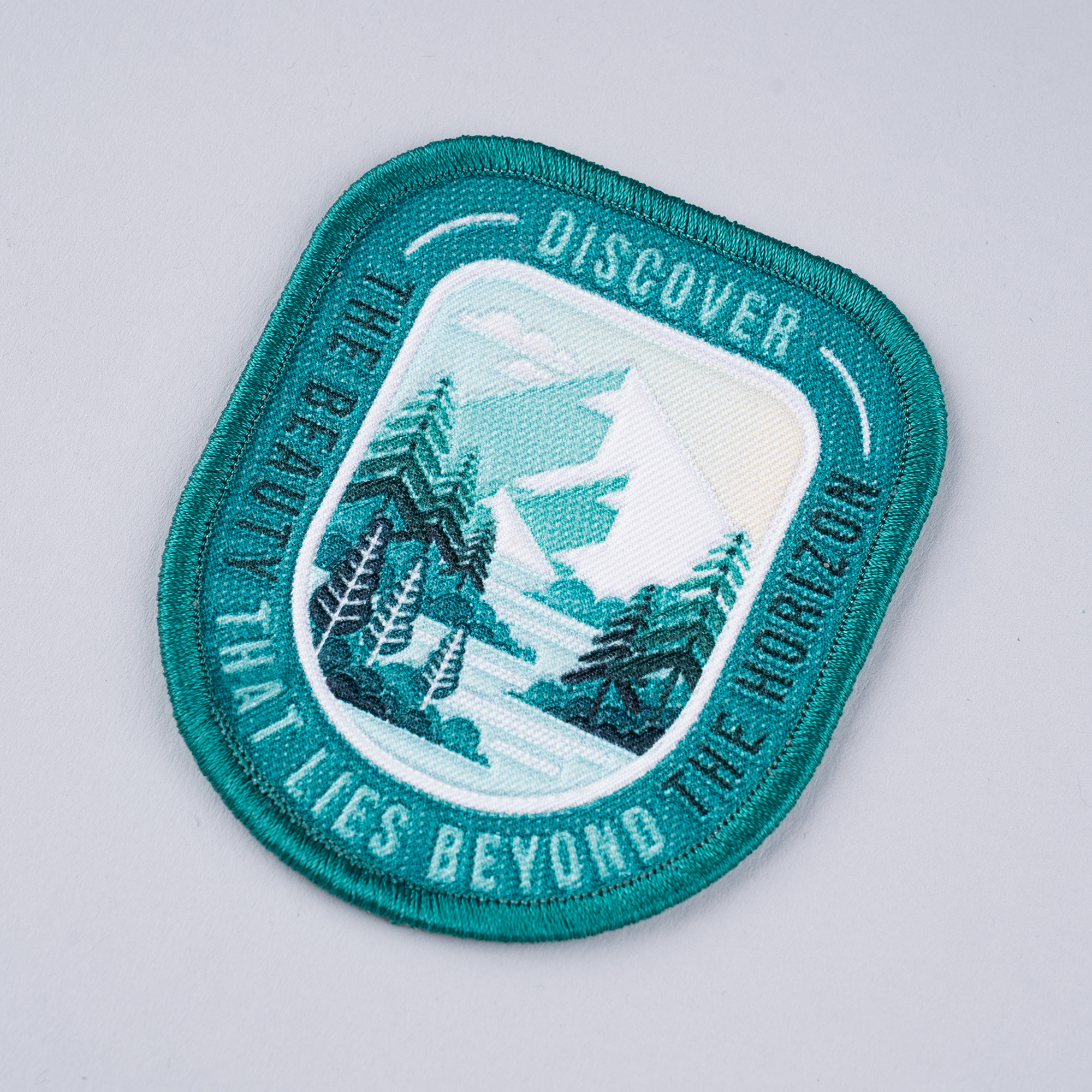

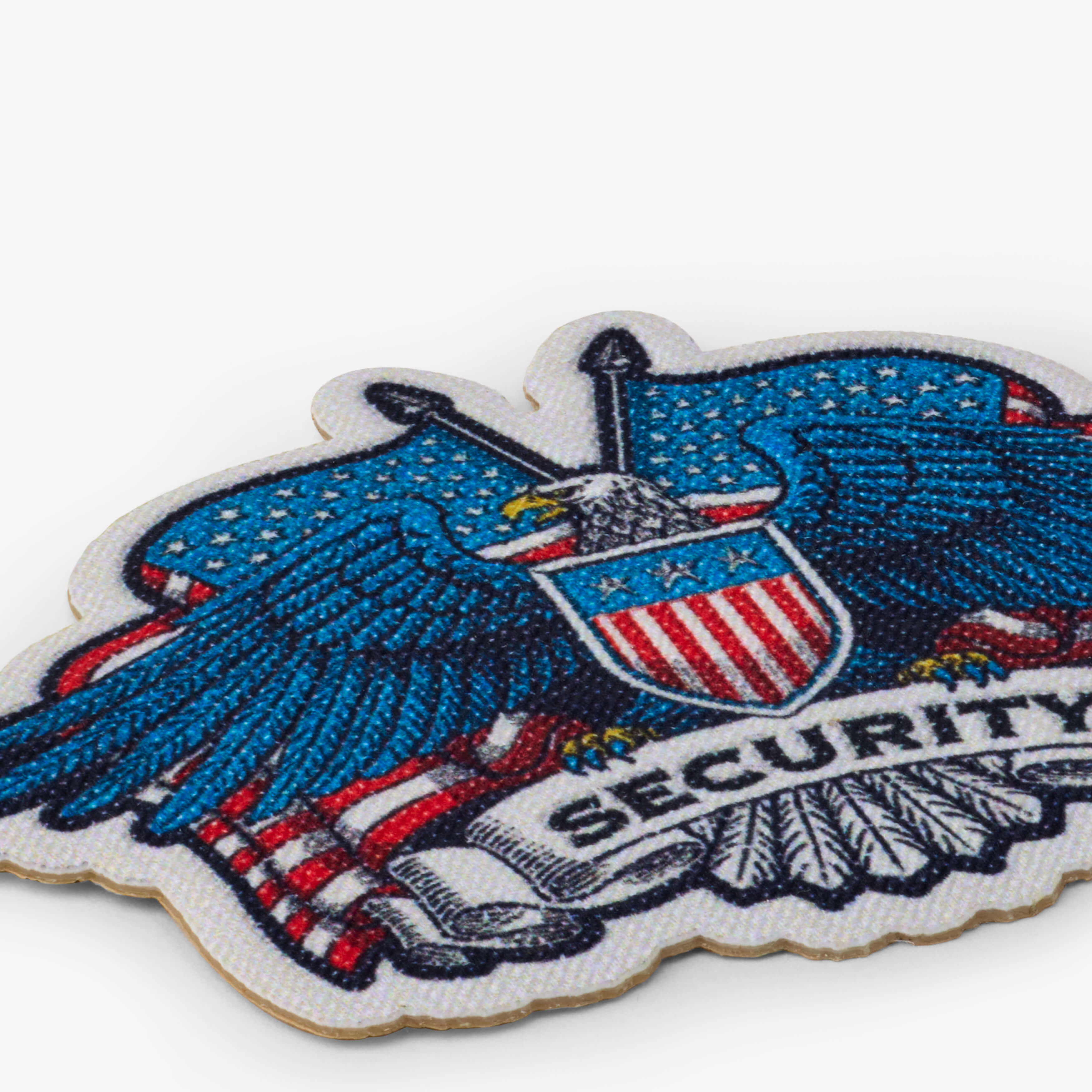

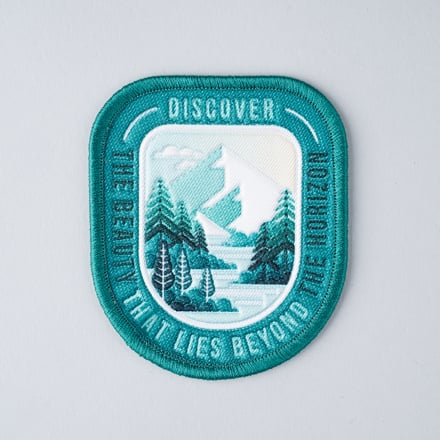

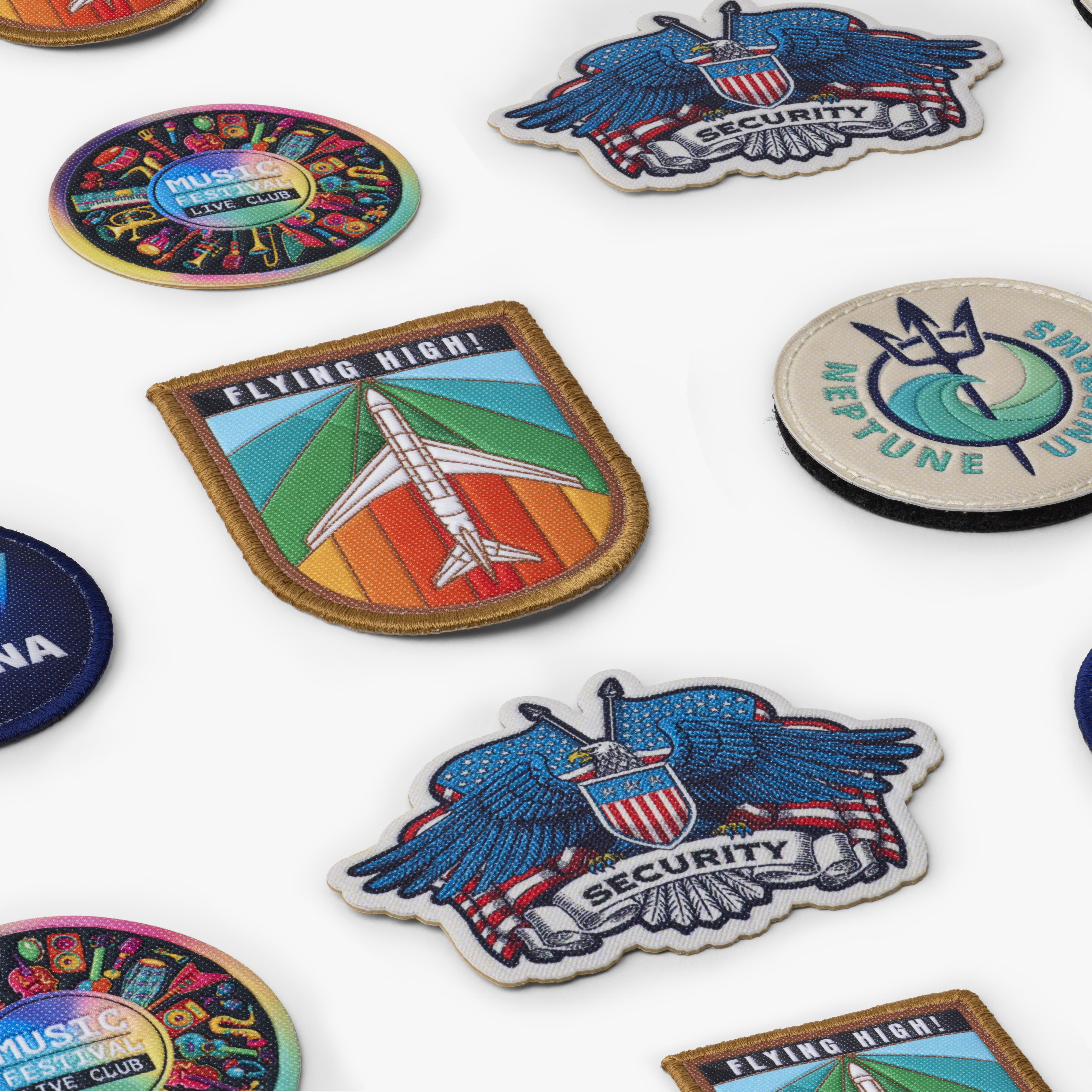

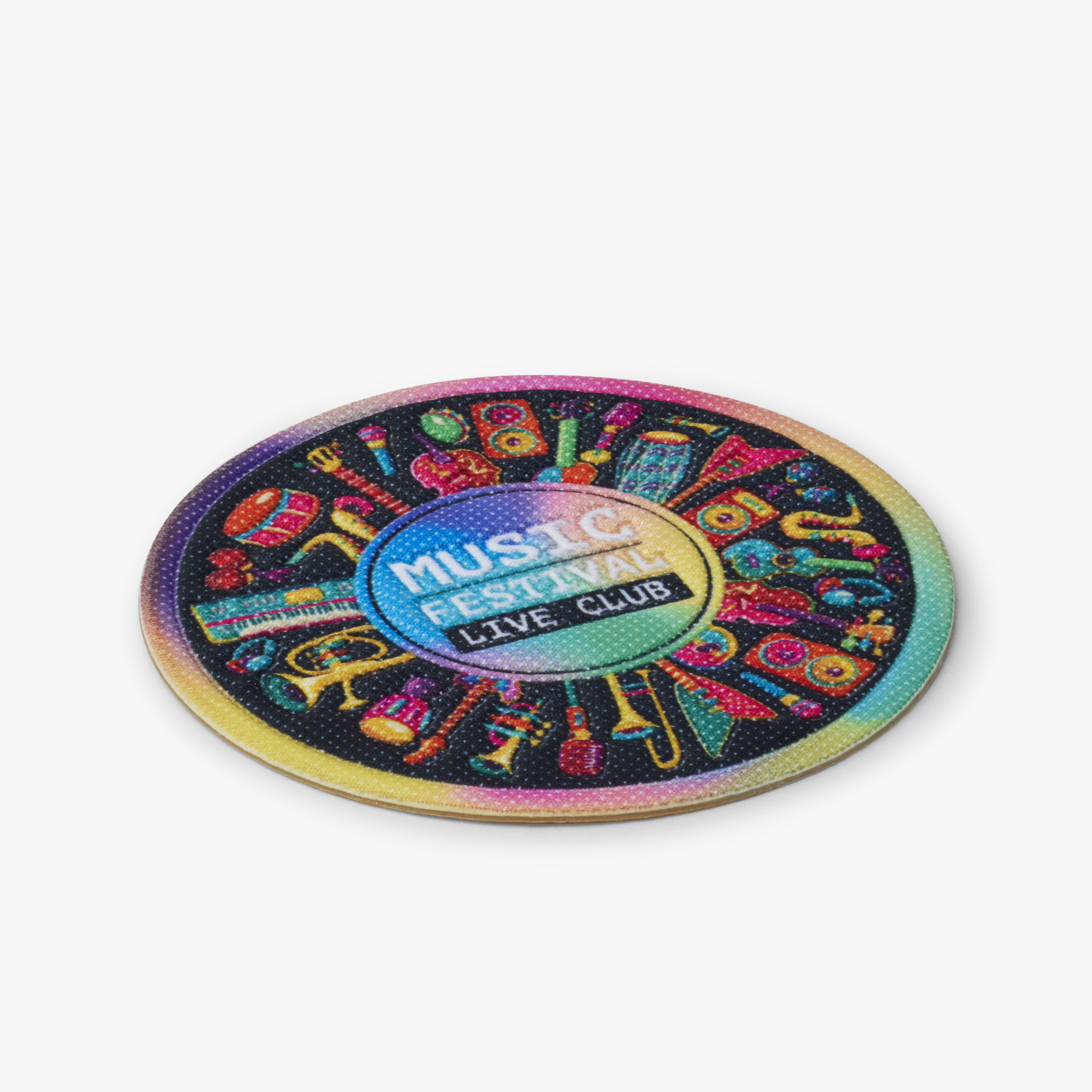

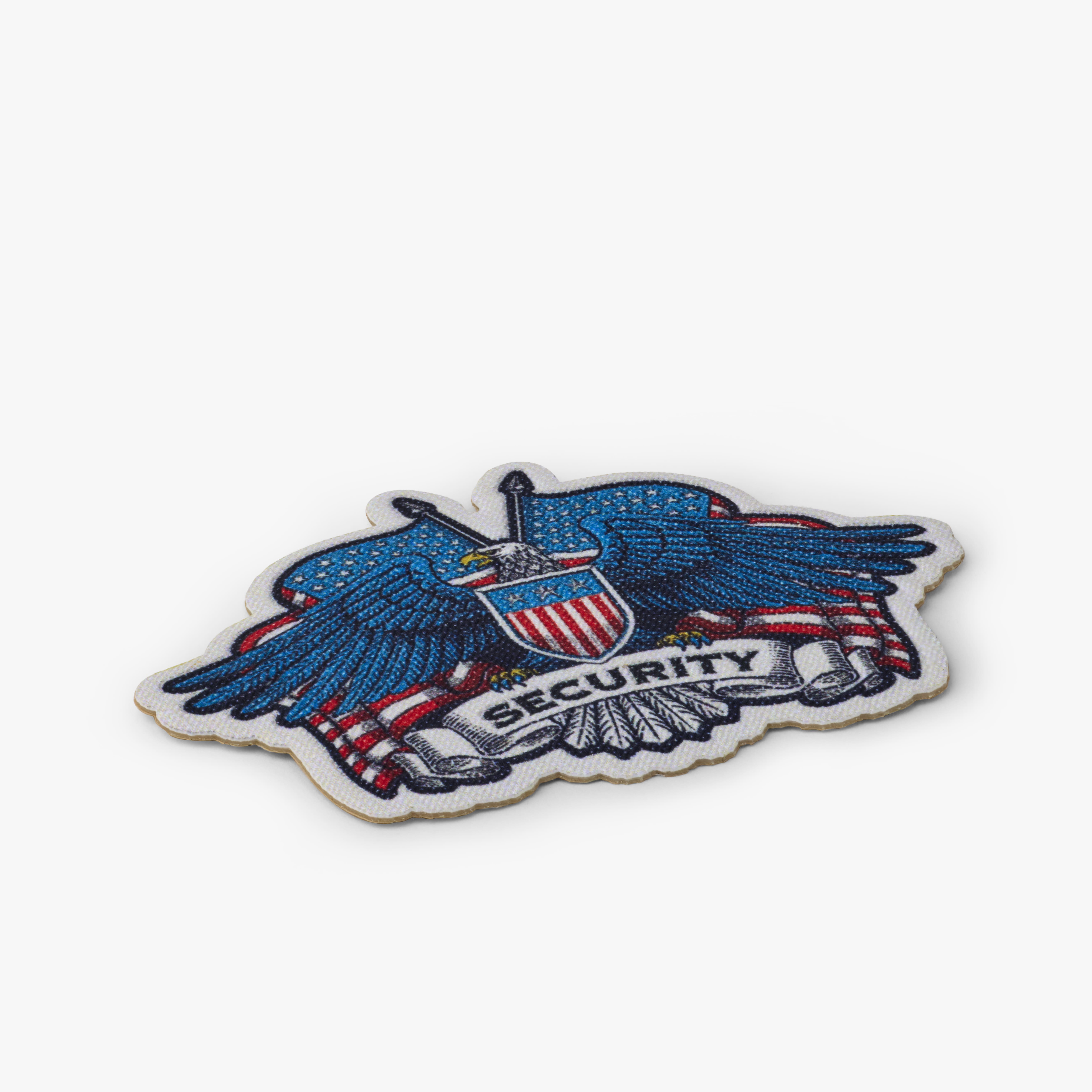

EcoWoven Patches

Patch Size Limits

• Borderless: Min 1” x 0.5” | Max 5.75” x 5.75”
• With Border: Min 1.5” x 1.5” | Max 5.75” x 5.75”

Colors

• Accepts RGB, CMYK, and Pantone color codes
• Color match is only available for Pantone Coated color codes
• Neon, glitter, and reflective colors are not available

Backing

• Heat Applied (Domestic)
• Peel & Stick
• Semi-Industrial

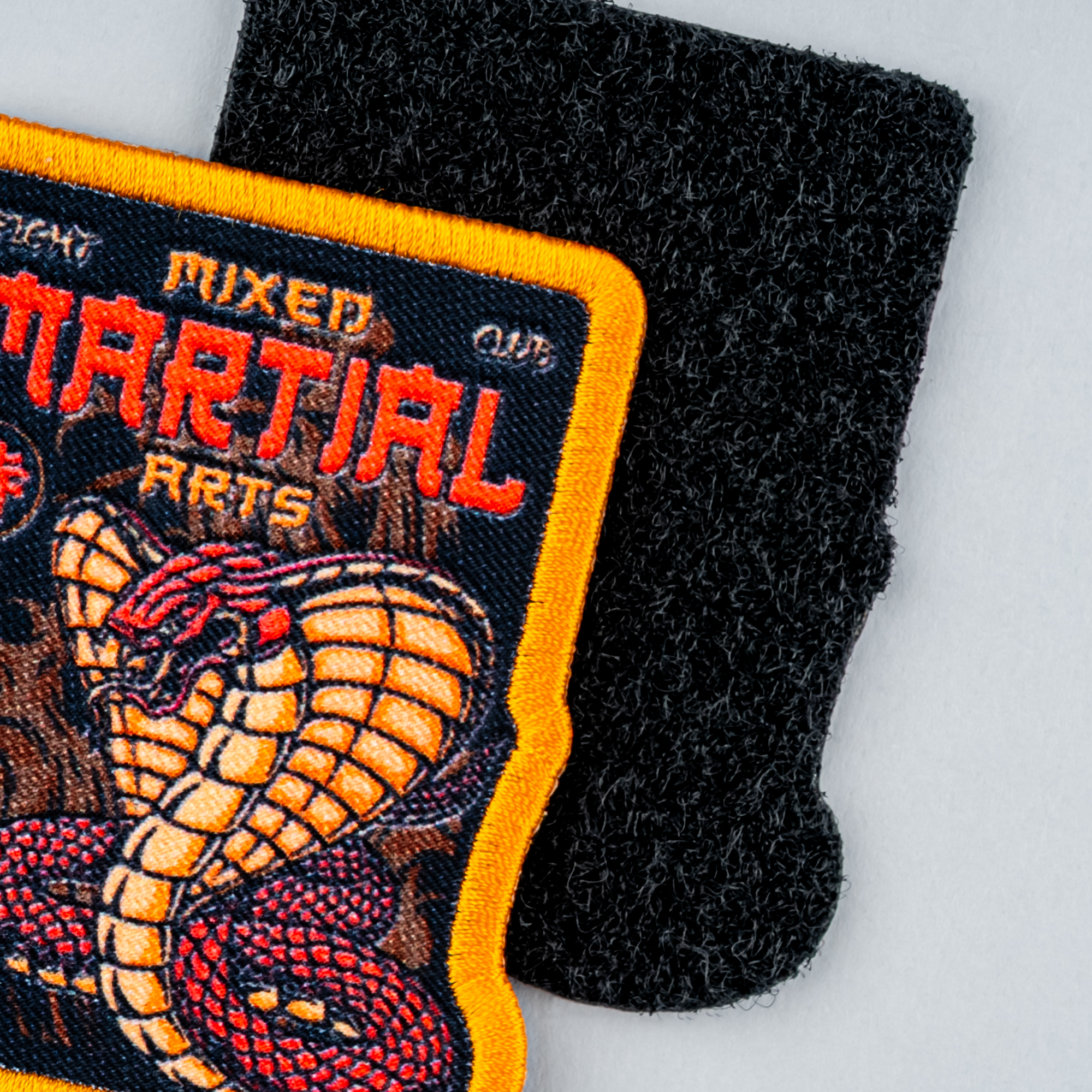

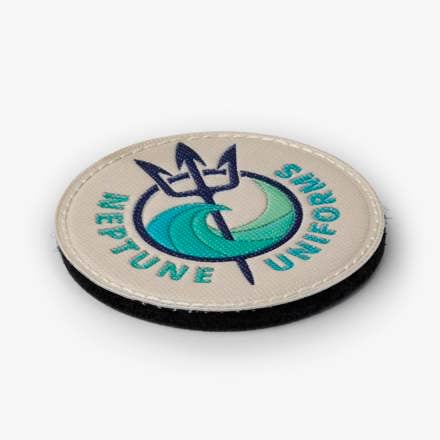

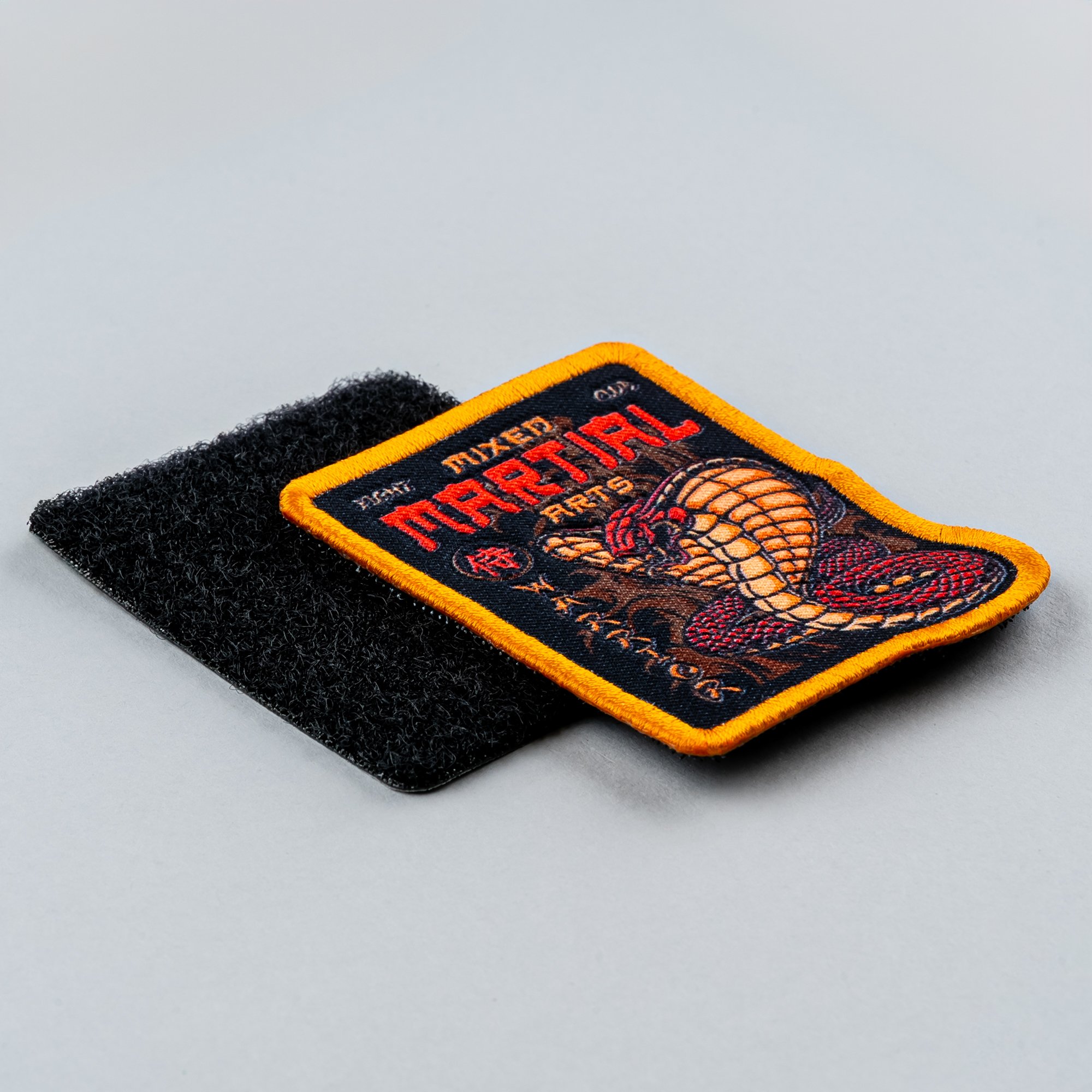

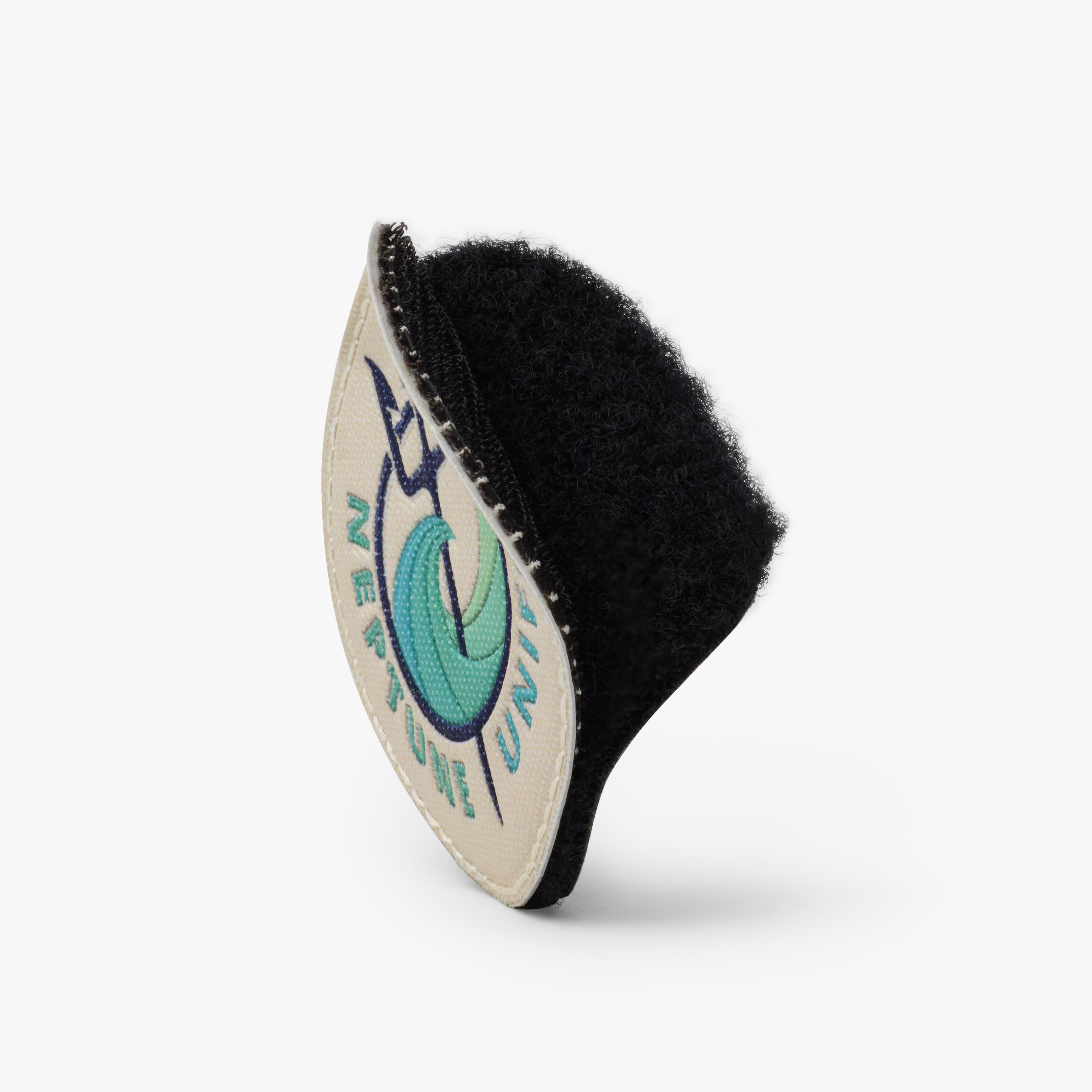

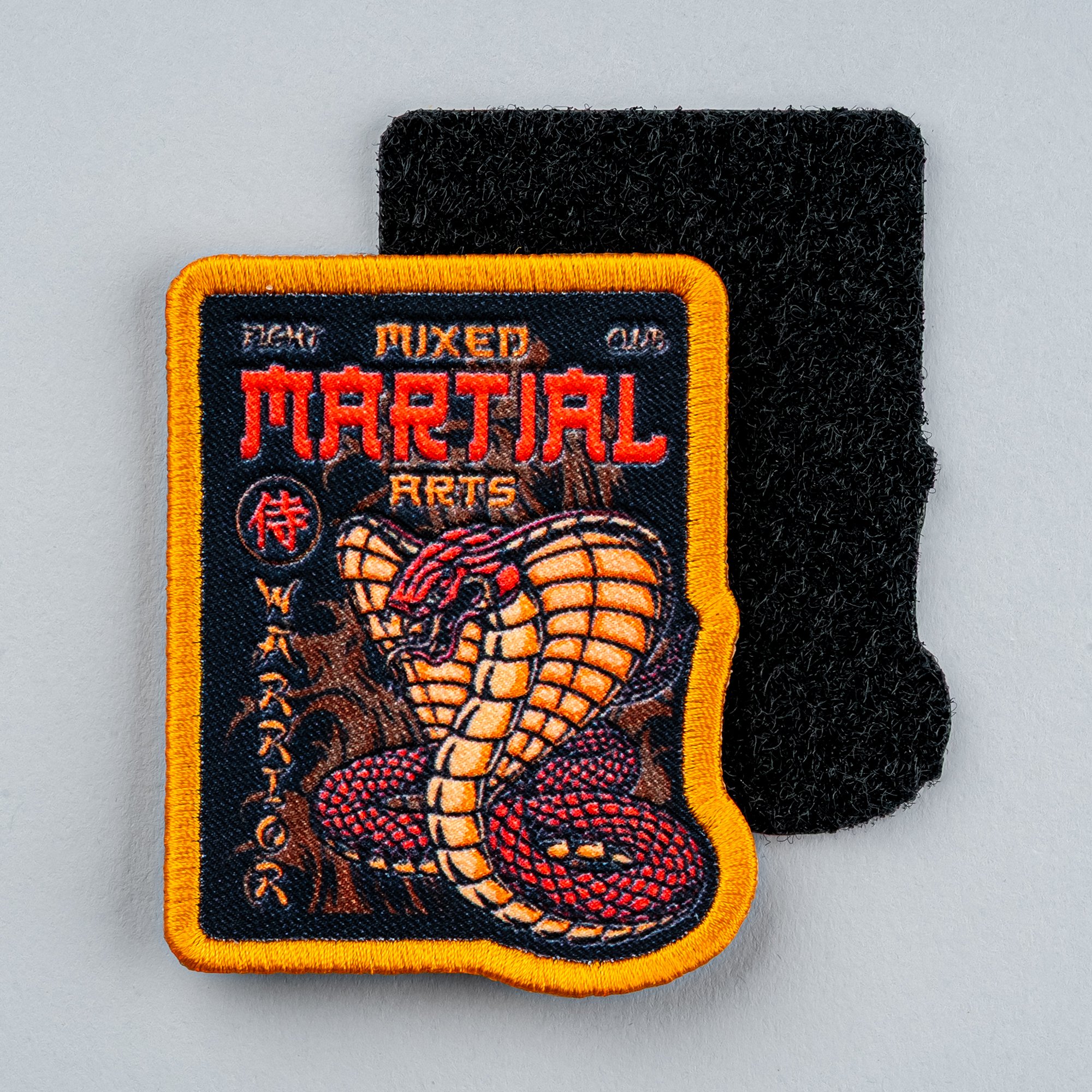

• Velcro
  • Sewn on standard shape patches
  • Heat applied on custom shape patches

Border

• Borderless

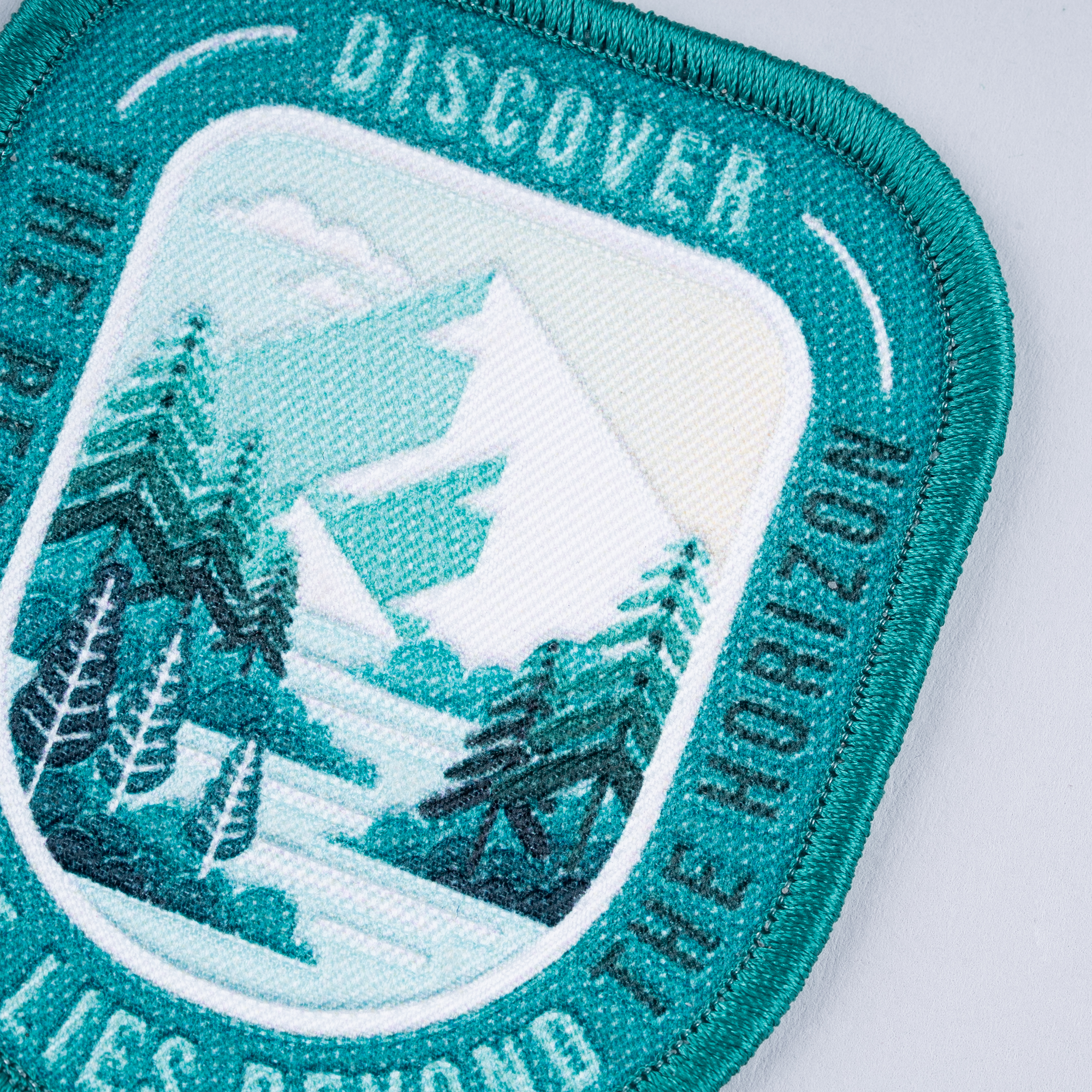

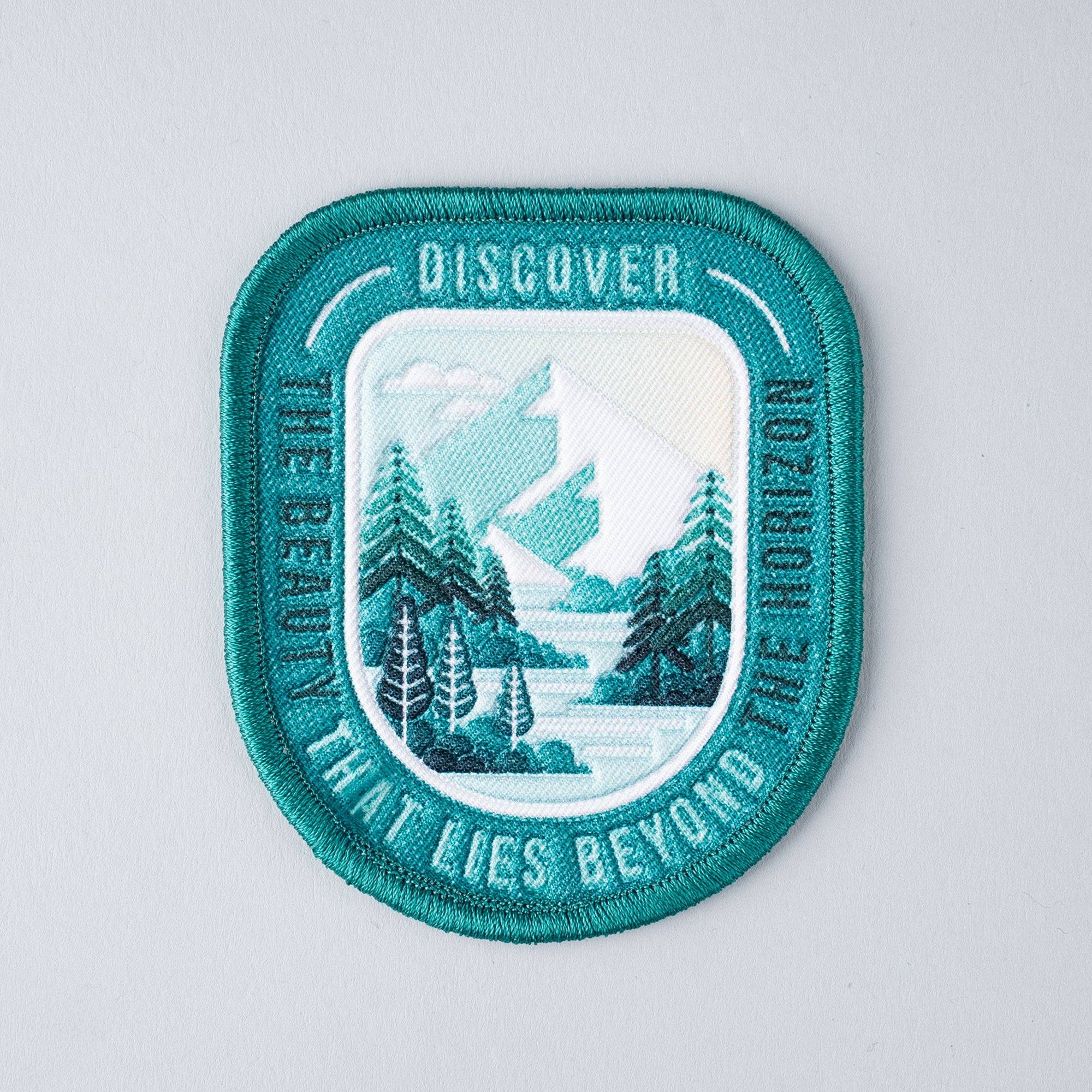

• Merrow
• Overlock
• Satin
• Sewing Guide

Washing Information

EcoWoven Patches will withstand up to 52 domestic & semi-industrial washing machine cycles.

Shelf Life

To maximize the shelf life of this product, keep at room temperature.

Revised 10.21.25

HEAT APPLIED (DOMESTIC) & SEMI-INDUSTRIAL BACKING WITH A 360 IQ™ HAT HEAT PRESS - HATS

• Top Temperature: 275°-285° F
• Bottom Temperature: 315°-320° F
• Pressure: 60-80 PSI
• Preheat: N/A
• Dwell Time: 15-18 seconds
• Instructions: Place hat on heat press, leaving out the inner layer of the cap. Use a FlexStyle® Silicone Pad to protect the patch.

HEAT APPLIED (DOMESTIC) & SEMI-INDUSTRIAL BACKING WITH TOP HEAT & BOTTOM HEAT - GARMENTS

• Top Temperature: 275°-285° F
• BottomTemperature: 270°-280° F
• Pressure: 60-80 PSI
• Preheat: N/A
• Dwell Time: 15-18 seconds
• Instructions: Use a FlexStyle® Silicone Pad to protect the patch.

HEAT APPLIED (DOMESTIC) & SEMI-INDUSTRIAL BACKING WITH A TOP HEAT PRESS - GARMENTS

• Temperature: 355°-365° F
• Pressure: 40-50 PSI
• Preheat: 15-20 seconds
• Dwell Time: 15-20 seconds
• Instructions: Use a FlexStyle® Silicone Pad to protect the patch.

Disclaimer

World Emblem recommends testing the best combination of heat seal parameters before application. World Emblem is not liable for any damages to garments during the application process.

Note: Please check out www.youtube.com/worldemblem for step-by-step instructions for applying our apparel decorations.

PEEL & STICK

1. Clean application area with rubbing alcohol
2. Remove paper backing, press emblem firmly on desired location

Pricing

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

Price Includes

Heat Applied (Domestic), Peel & Stick and Semi-Industrial backing.

Add-ons

• 25% increase for Velcro backing

Production Timeframe

Click HERE to view our Products & Services Turnaround Times table for your convinience.

NOTE: All turnaround times are subject to change. Larger orders may result in additional business days for production. Orders received after the cut-off time will be considered as received the next working day.

Discover the perfect colors for your projects. View our Digital Color Chart.

Proposition 65 requires businesses to provide warnings about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm.  These chemicals can be in the products in homes or workplaces, or that are released into the environment.

The CPSIA strengthened children's product safety by establishing critical safety and traceability requirements.

Primarily, CPSIA regulations enforce:

• Rigorous restrictions on phthalates

• Rigorous lead restrictions

• Requires acceptable levels for several substances common in most consumer products, especially those designed for children, ages 0-12.
