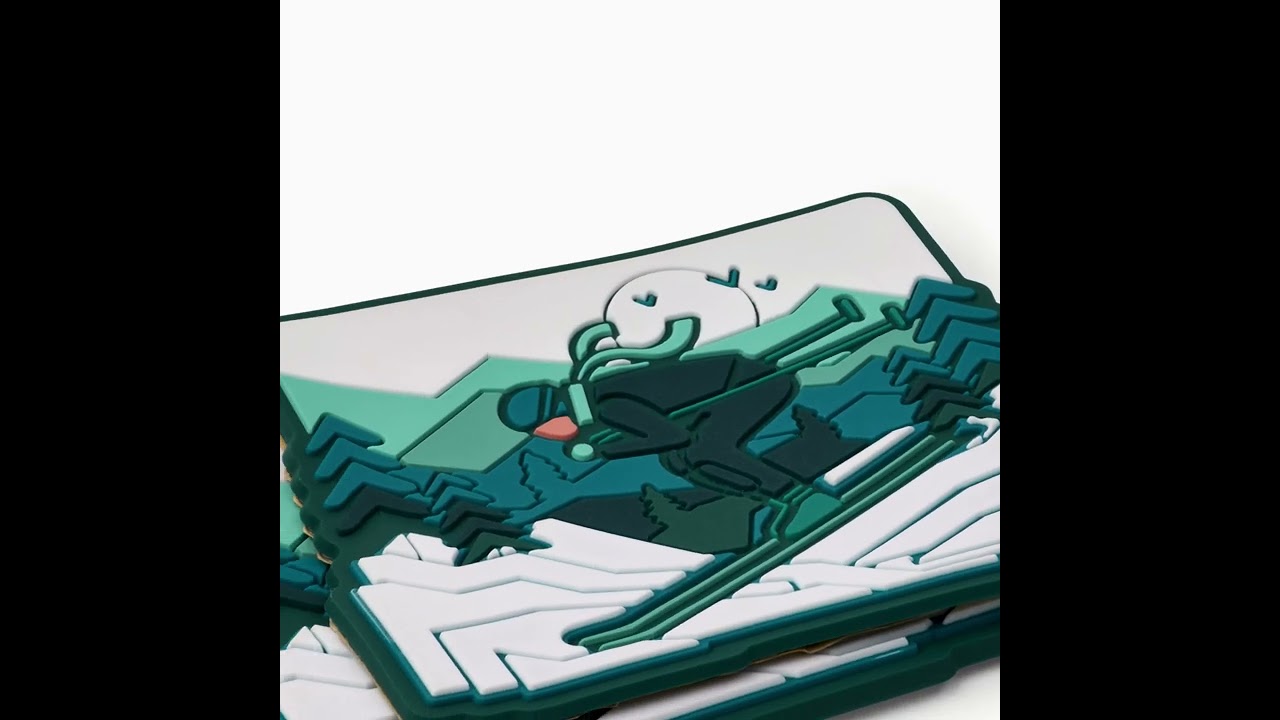

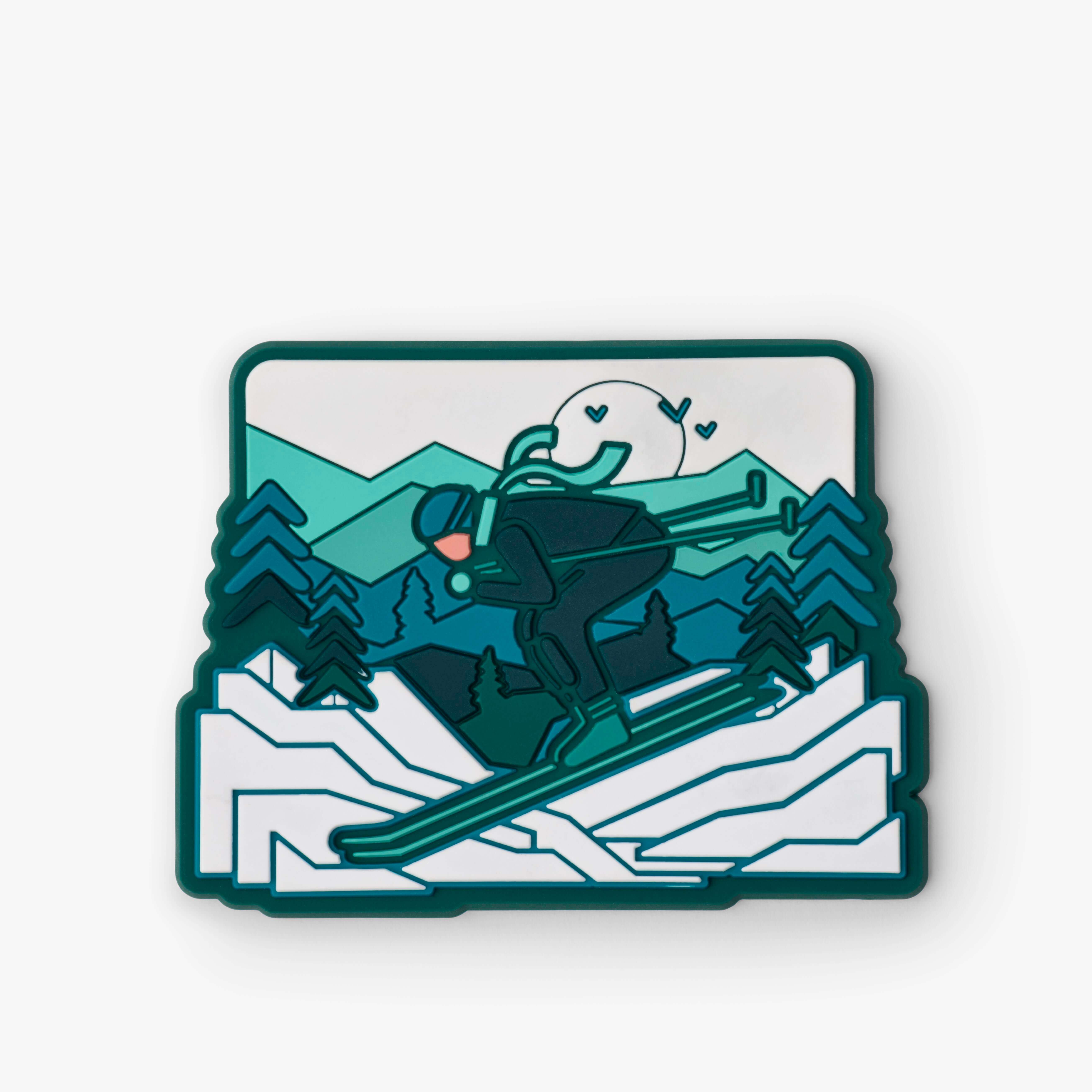

PV+

EMBLEM SIZE LIMITS
Min – 0.5”W X 0.5”H
Max – 4”W X 4”H

THICKNESS

Min –2.1mm Max -3.7mm

+/- 2mm

TEXT AND ELEMENTS
Minimum elements and text size: 0.6 mm (+/-0.2 mm)

FLOATING ELEMENTS
All PV+ Emblems must have a uniform background that support every
text and element. Floating elements are not allowed.

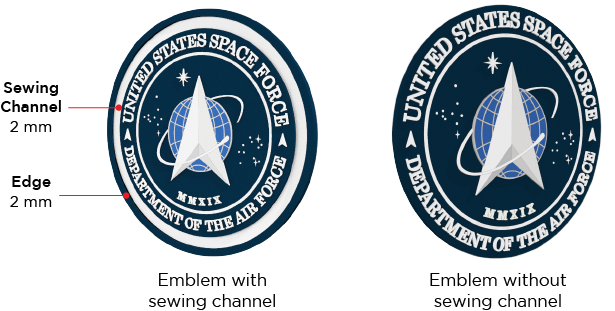

SEWING CHANNEL
PV+ Emblems can have a channel for seam application, adding a 2mm
outline and a 2mm edge to the design.

COLOR
A maximum of 4 colors can be used on a single PV+ Emblem to remain
within standard turn-times. Please note that any designs with 5-8 colors
will cause a delay on production and turn around times.

Only solid colors are available, without any gradients.
Pantone color matching is available. *Metallics & Neons colors not allowed*

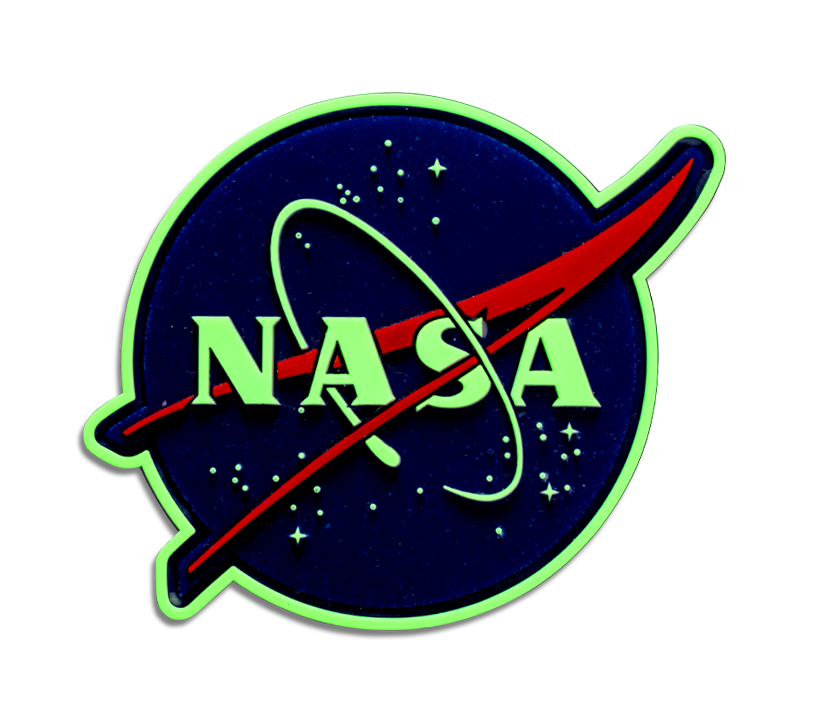

“Glow in the dark” color is available.

BACKING
This product is available with Low Melt backing & Pressure Sensitive Backing.

ELECTRONIC PROOF
A digital sample via email is available in 2 days.

PRODUCTION TIME
From 25 to 1,000 pieces: 8 days plus shipping (additional day per 1,000
pieces).

For more than 20,000 pieces turn time please contact your Sales
Representative.

WASHING INFORMATION
PV+ Emblems will withstand up to 25 domestic washing machine cycles.

SHELF LIFE
To maximize the shelf life of this product please keep at room temperature. Do not expose it to temperatures above 485°

Note: World Emblem encourages our clients to test applications of our products unto their garments. World Emblem is not responsible for damages resulting from washing and laundering of any product purchased.

Revised 11.08.22

PRESSURE-SENSITIVE ON HARD GOODS
Make sure the application area is thoroughly cleaned. We recommend the use of rubbing alcohol. Remove paper backing and press firmly on the desired location.

LOW MELT HEAT SEAL ON HATS - USING THE IQ 360 HAT HEAT PRESS

1. Set the press at 350°-360° F for top heat and 318°- 320°F for bottom heat with 40-50 psi of pressure.
2. Place the hat on the heat press, leaving out the inner layer of the cap. Use the adjustment lever for a better grip.
3. Press for 17-20 seconds to preheat the hat.
4. Place the patch on the desired location. To secure the patch and preventing it from moving, use Thermal Tape.
5. Place a Flexstyle® Rubber Application Pad over the design.
6. Press for 17-20 seconds.
7. Deactivate the adjustment lever and remove the hat from the heat press.
8. Remove the Thermal Tape once the patch has cooled.

DISCLAIMER
World Emblem recommends testing the best combination of heat seal
parameters before application. World Emblem is not liable for any
damages to garments during the application process.

Click HERE for PV+ Color Chart.
