FlexStyle® Flat

A revolutionary embellishment that gives your design a shiny, 3D effect.

FlexStyle® Flat offers a 3D effect with a “flatter” appearance. Apply FlexStyle® Flat to a variety of surfaces such as fabric, glass, wood, metal, plastic and more.

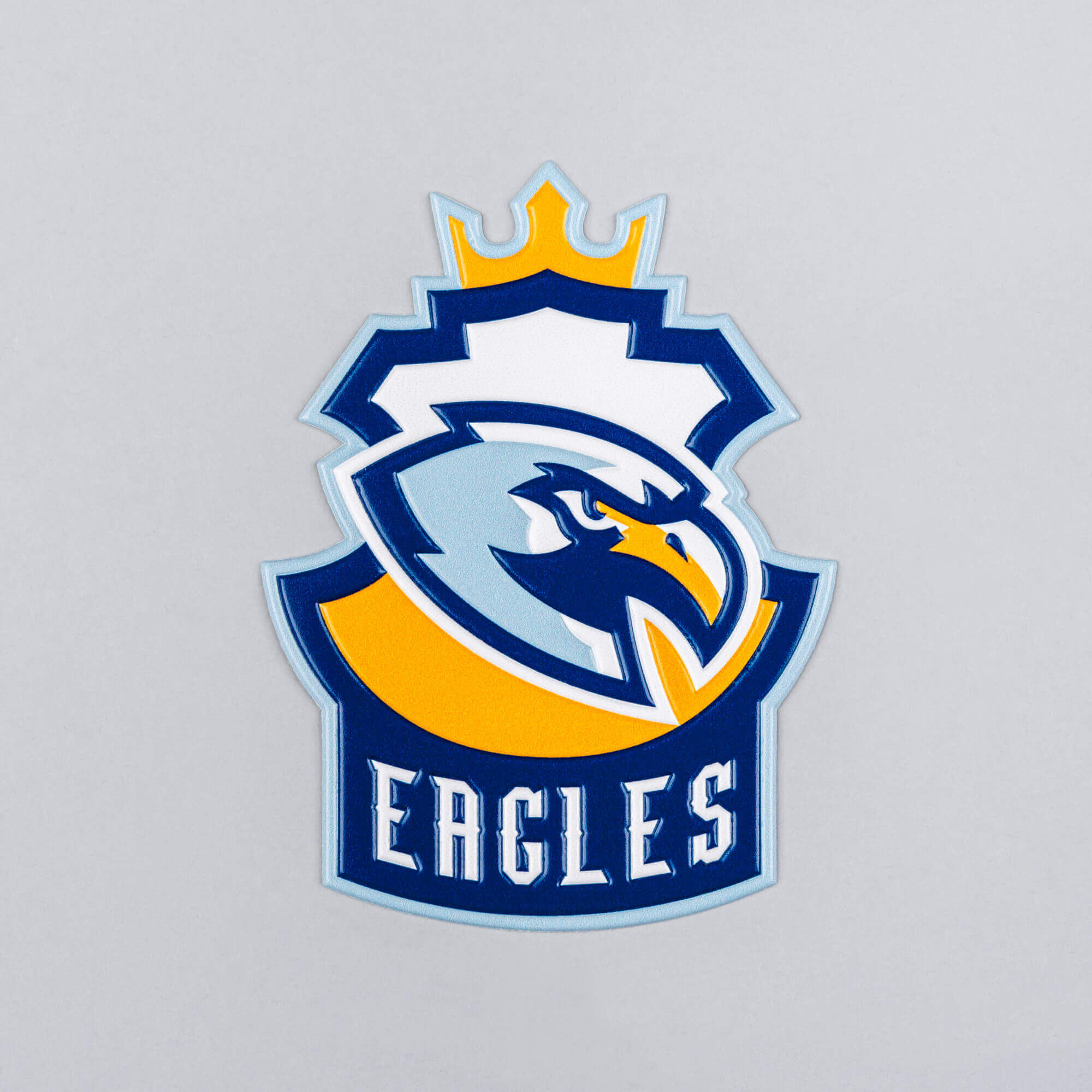

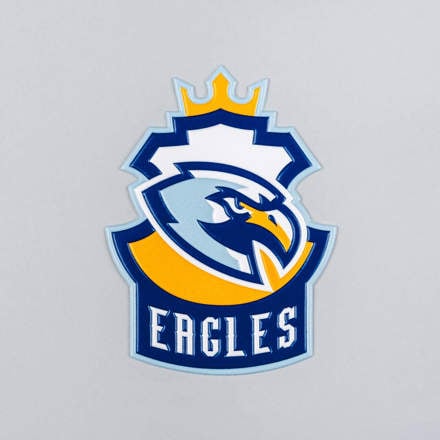

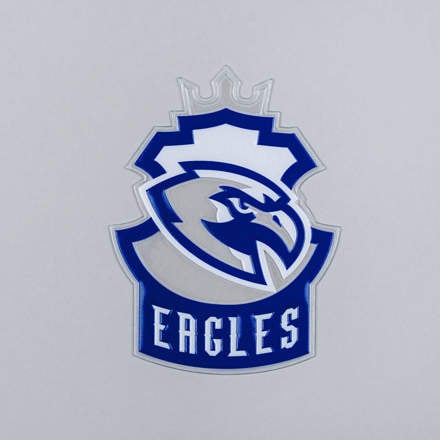

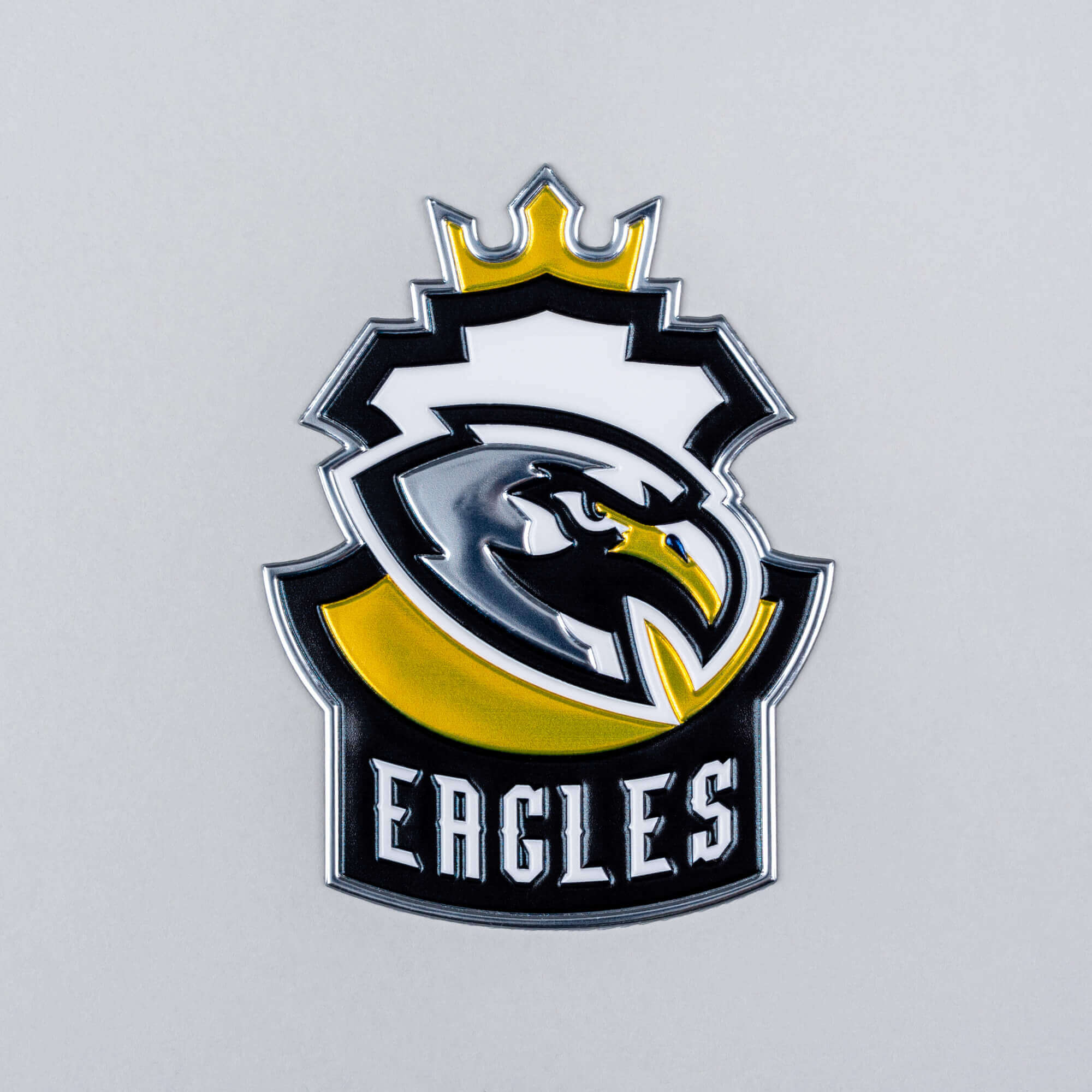

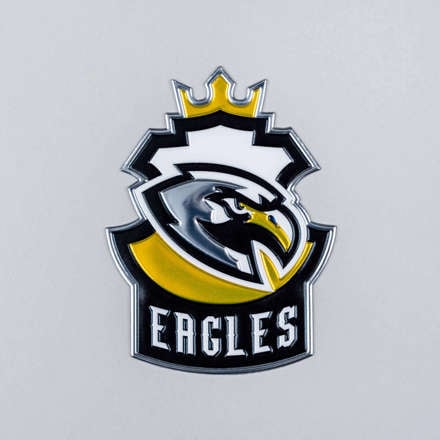

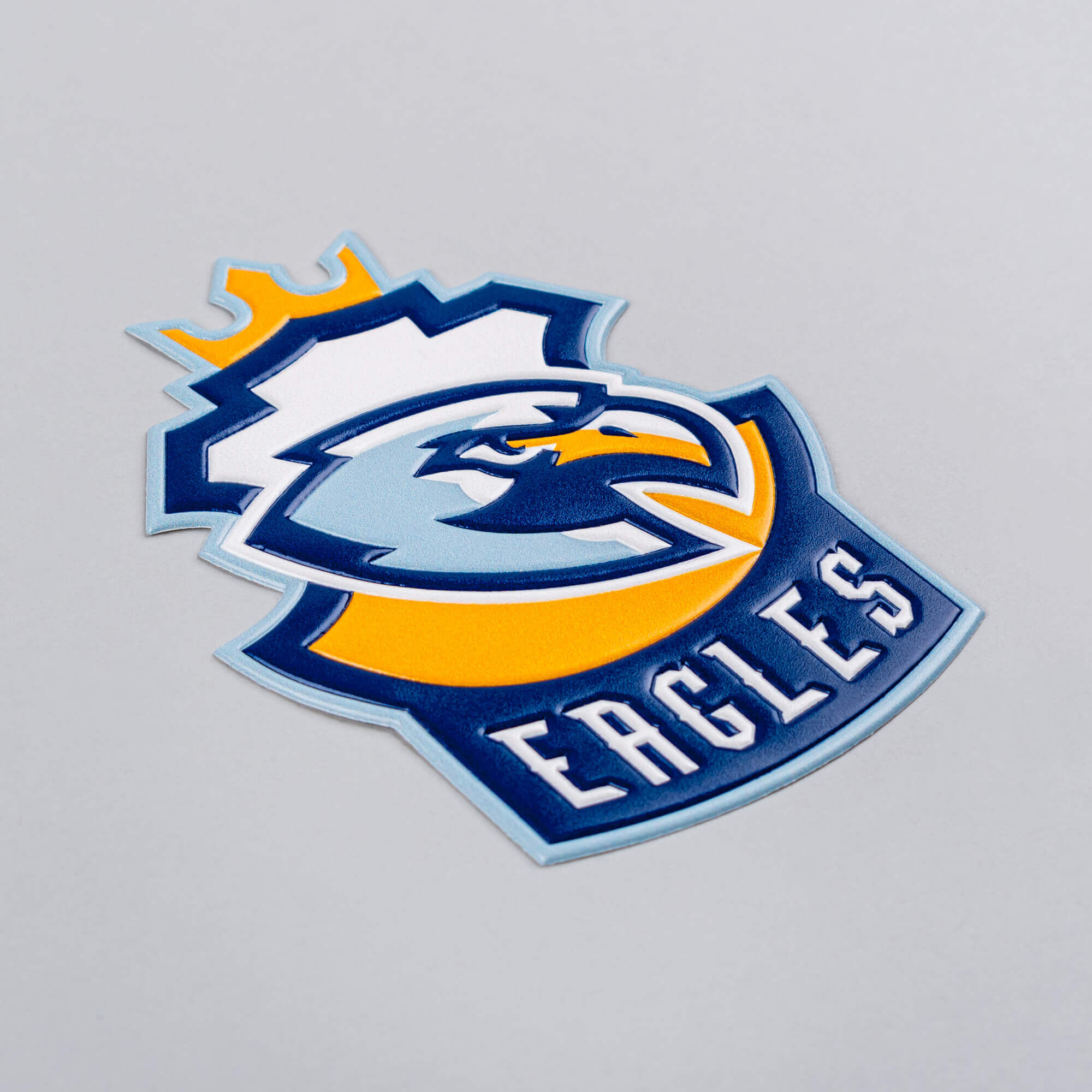

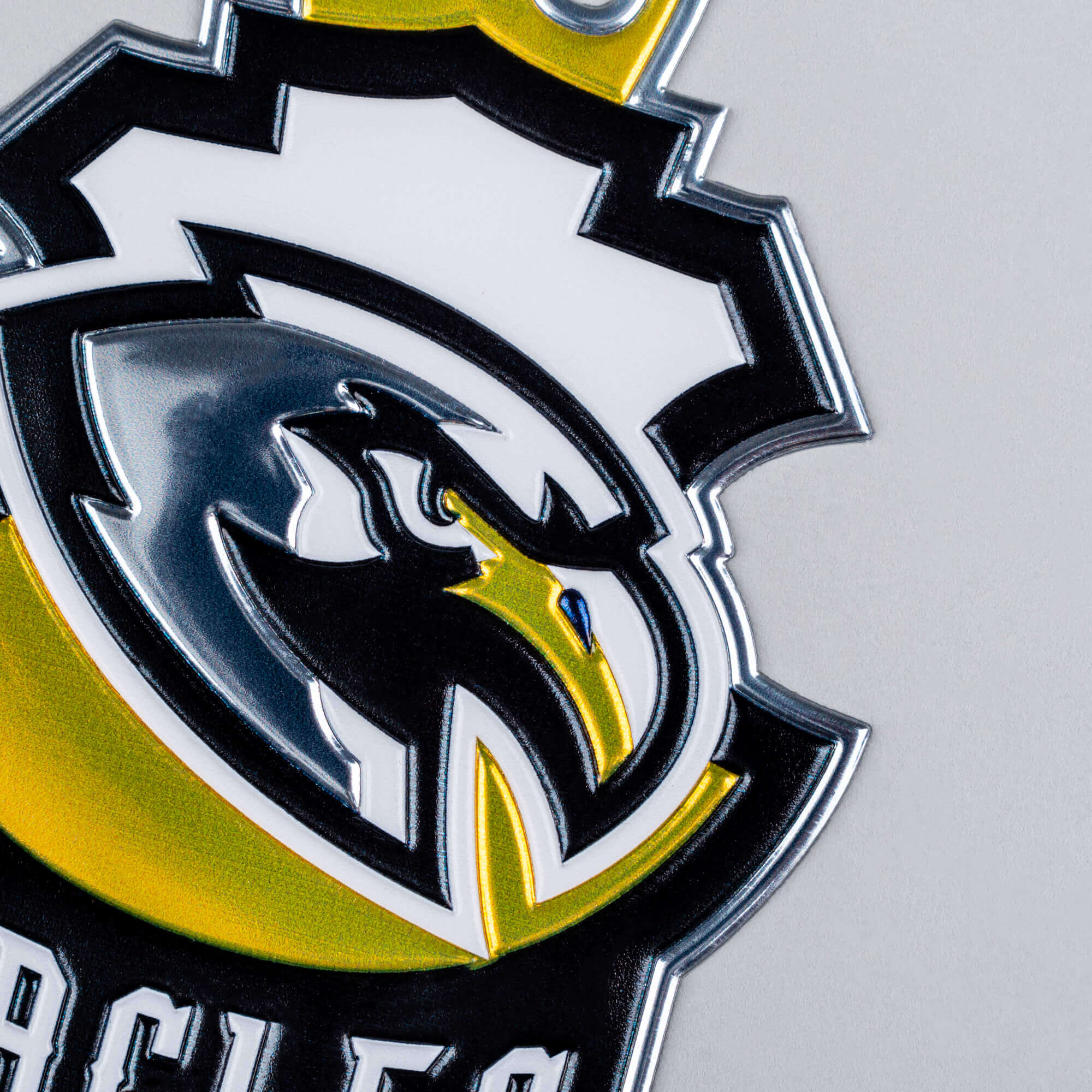

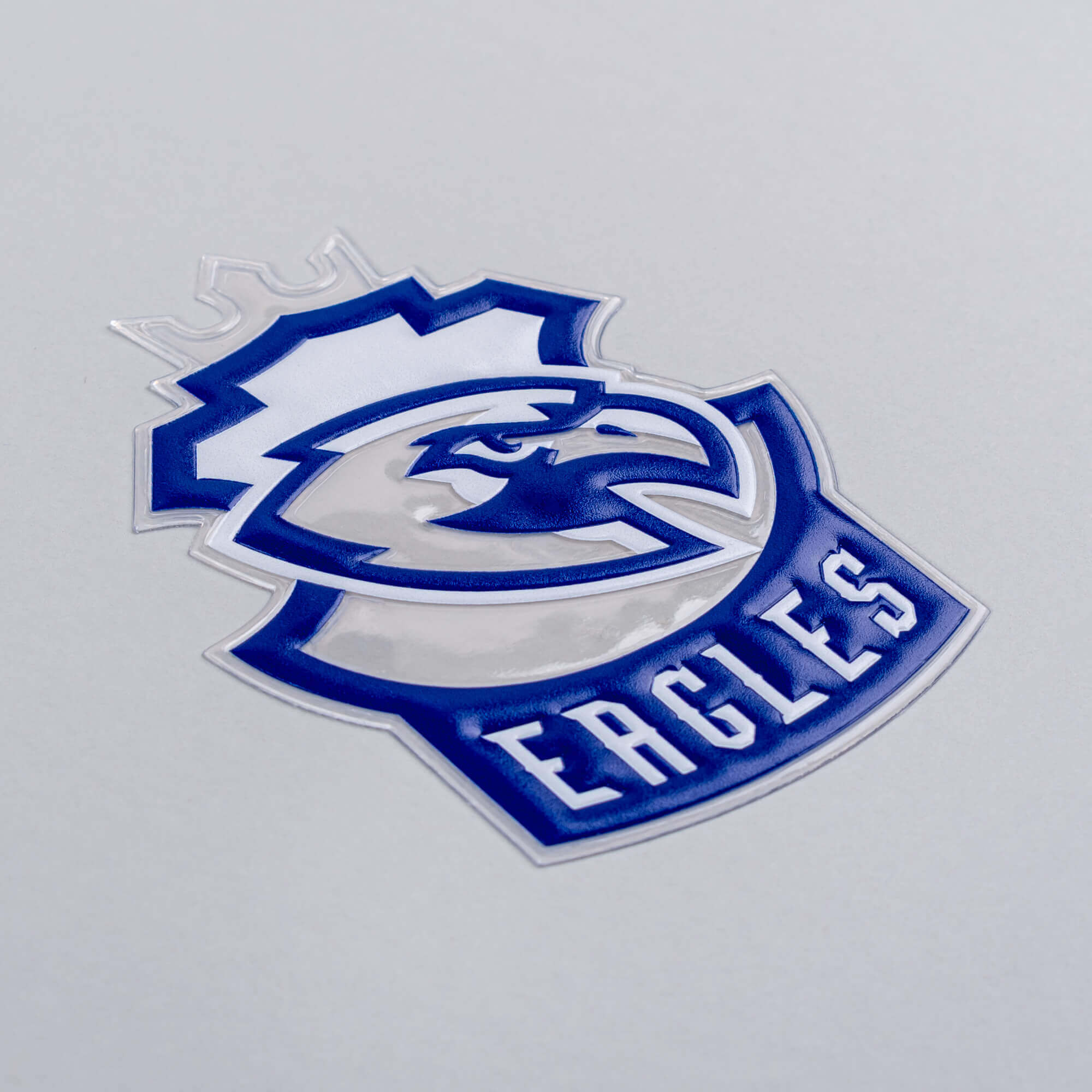

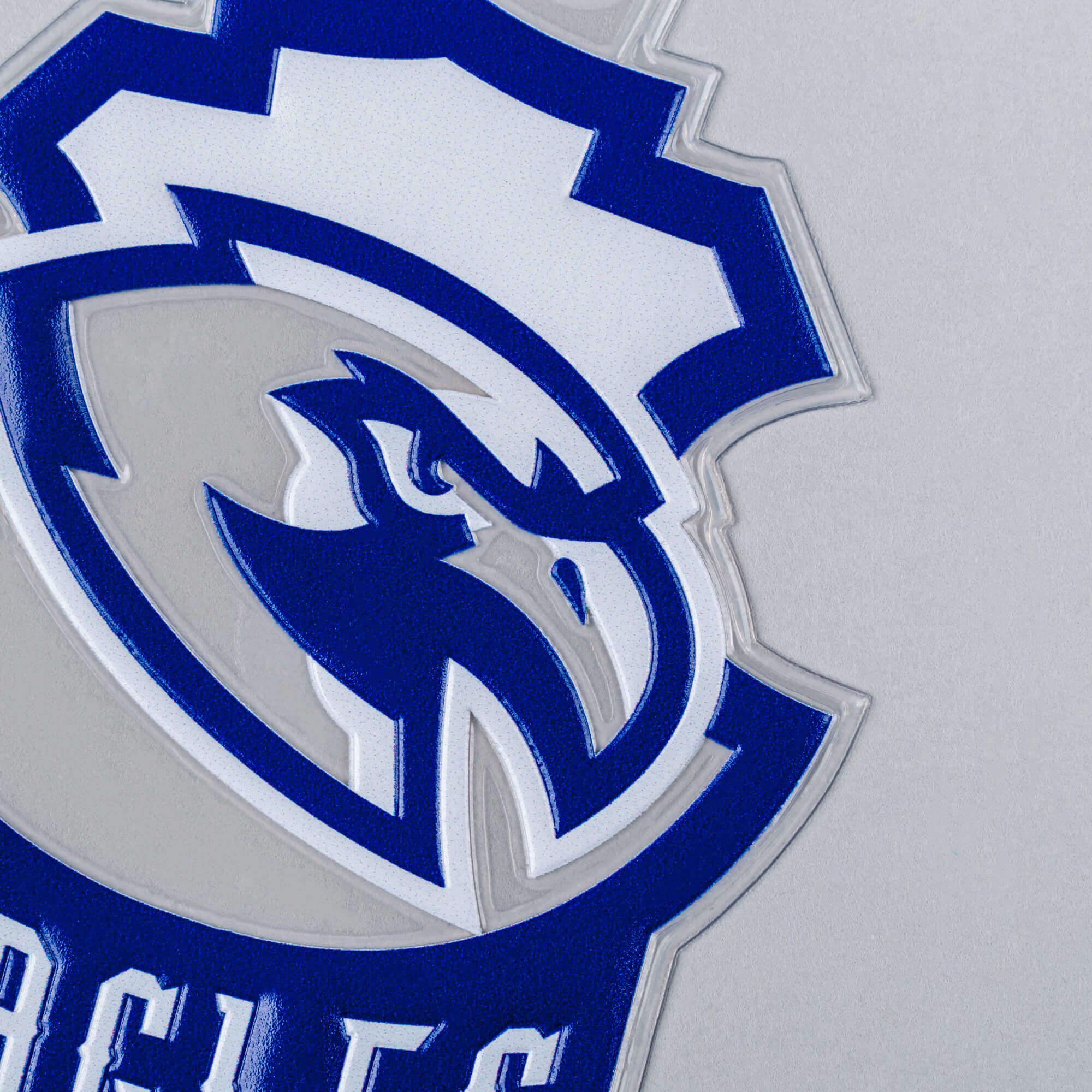

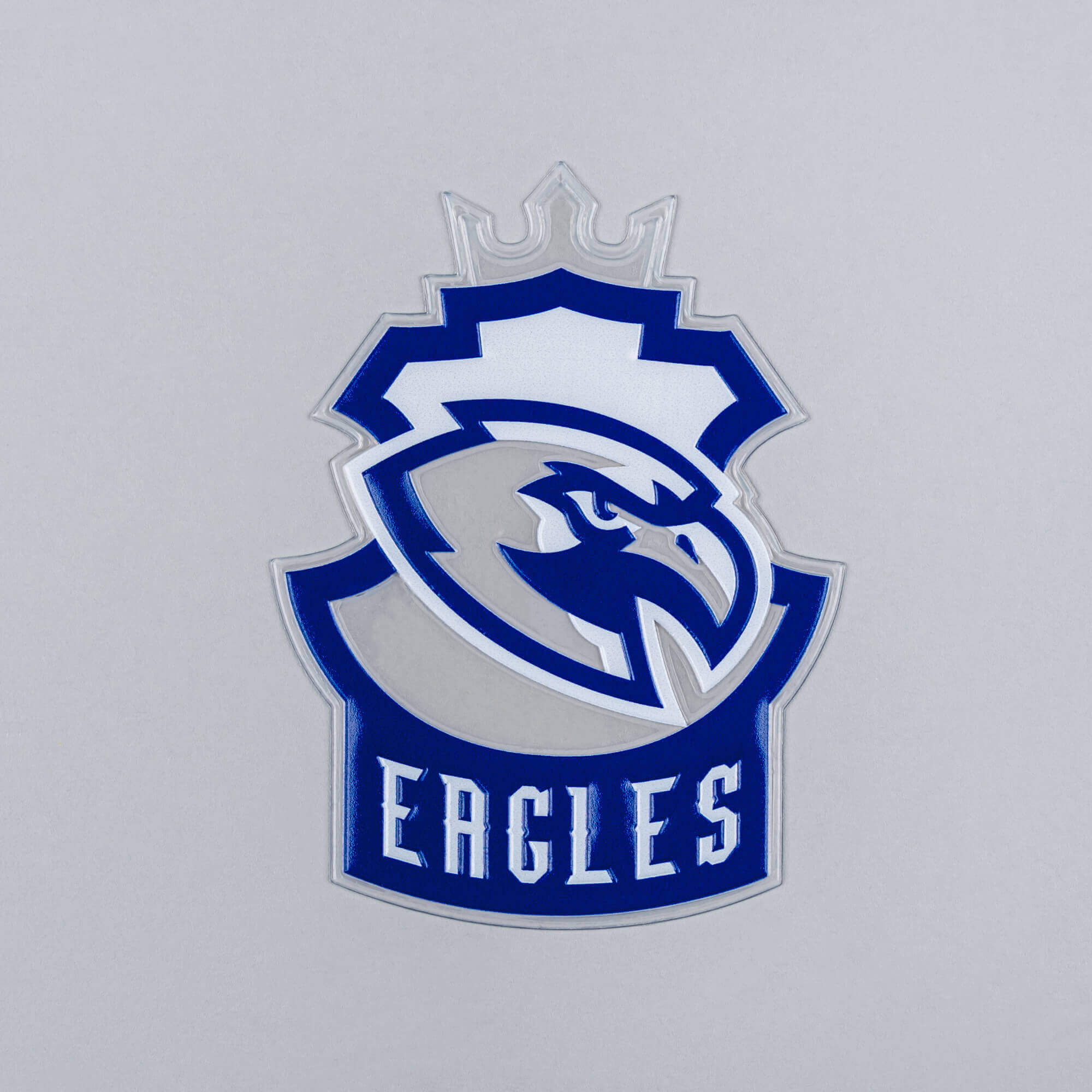

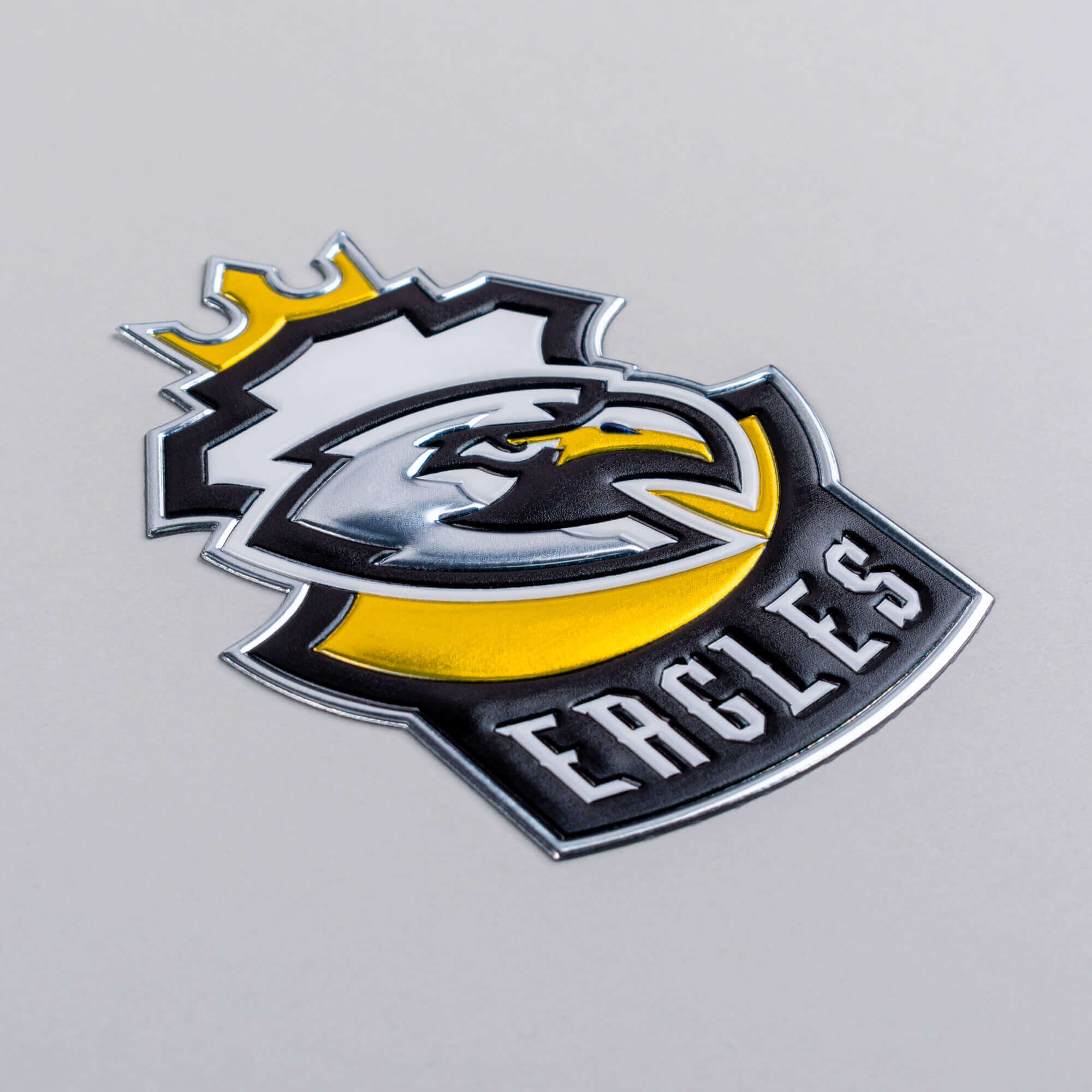

FlexStyle® Flat come in metallic, non-metallic and clear finishes. Heat seal and pressure-sensitive options available.

Don’t forget your FlexStyle® Silicone Pad – this is used to protect the integrity of your FlexStyle® emblem.

SPECS

EMBLEM SIZE LIMITS
Area - FlexStyle® Flat emblems can range from 0.5” x 0.5” to 5.75” x
5.75”; they cannot be any smaller or any larger.
Thickness - Varies depending on the complexity of the design from 2 mm

COLOR
Product accepts CMYK colors. A standard chart of colors is available.
RGB and PMS colors may be accepted but color matching is not
guaranteed. Neon, glitter and reflective colors are not available

BACKING
Low Melt - This backing is more commonly used on wearables and applied
with a heat press.
Pressure Sensitive - This sticker backing is commonly used on hard goods.

LIMITATIONS
Low Melt: Since the product is applied with heat, it is not recommended
for use on materials that may be heat sensitive (ex. some nylons, silk,
some plastics, leather, wool, fleece, etc.).
Pressure-Sensitive: The use of these emblems on material surfaces that
may contain an oil finish, such as silicon, TeflonTM, rough fabrics, or any
kind of outdoor goods is not recommended.

ELECTRONIC PROOF
A digital sample via email is available in 48 hours. Edits are allowed.

PRODUCTION TIME
Upon approval, the mold is made in 1 day.
Samples time: 2 days plus shipping.
Production time: 5 days plus shipping (additional day per 500 pieces)

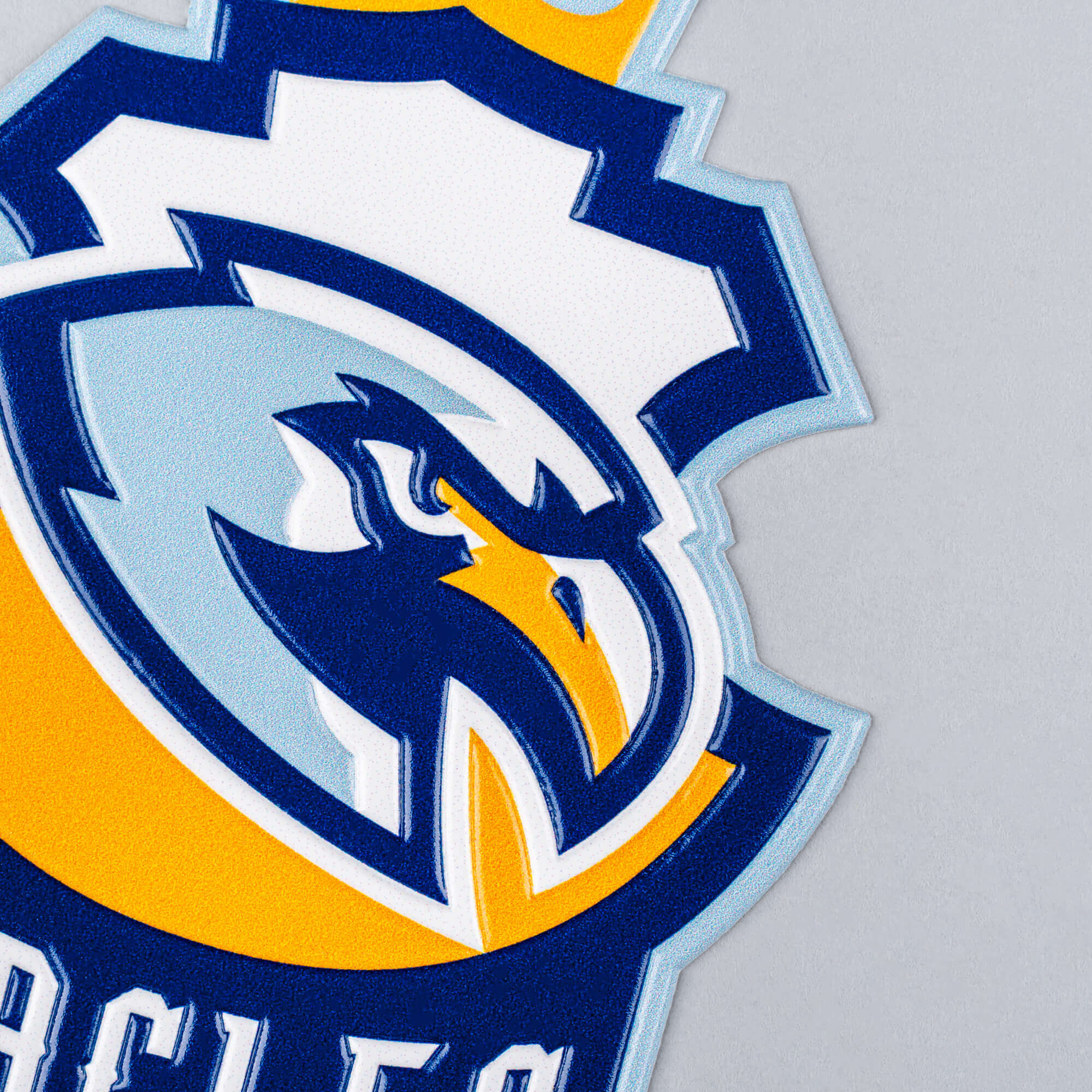

TEXTURES
Beveled stands out by its edges. In some cases it will be
necessary to add some regular texture in the artwork. Our trained
designers will determinate the best option to incorporate this textures
according to the needs of the product.

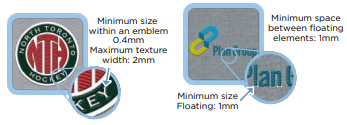

MINIMUM SIZE TEXTS

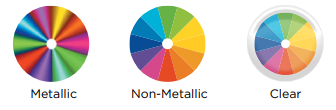

MEDIA/COLORS

TEXTURES
Textures are predicated by each individual design and are typically
shown on the background only. When a FlexStyle® Domed has an area
bigger than 50%, it becomes automatically FlexStyle® Flat.

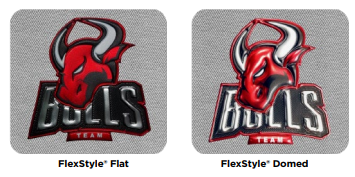

VISUAL COMPARISON BETWEEN FLEXSTYLE® FLAT & DOMED

WASHING INFORMATION
FlexStyle® emblems will withstand at least 52 domestic washing
machine cycles at 104° F max.

SHELF LIFE
1-year shelf life before applying (room temperature controlled
environment).

SET-UP CHARGES
One-time mold charge and artwork fee.

APPLICATION INSTRUCTIONS

APPLICATION VIDEOS AVAILABLE AT
www.youtube.com/worldemblem

PRESSURE-SENSITIVE
Make sure the application area is thoroughly cleaned. We recommend the
use of rubbing alcohol. Remove paper backing and press firmly in the
desired location.
Remove clear top carrier.

LOW MELT BACKING WITH A TOP HEAT PRESS: GARMENTS AND HATS
1. Set the press at 350-360° F for top heat with 40-60 lbs. of pressure.
2. Place the garment on the heat press with the FlexStyle® silicon pad on top
and press for 20 seconds to preheat the garment.
3. Place the FlexStyle® on the garment in the desired location. Place the
FlexStyle® silicone pad over the design.
4. Press for 12-15 seconds.
5. Remove the shirt from the heat press and remove the clear cover once
cooled.

LOW MELT BACKING WITH A BOTTOM HEAT PRESS: GARMENTS & HATS
1. Set the press at 280-300° F for bottom heat with 40-60 lbs. of pressure.
2. Place the patch on the garment in the desired location. Place the
FlexStyle® silicone pad over the design.
3. Press for 10-12 seconds.
4. The FlexStyle® silicon pad protects the garment from scorching as
well as to maintain the texturizing in the design.

DISCLAIMER
World Emblem recommends testing the best combination of heat seal
parameters before application. World Emblem is not liable for any
damages to garments during the application process.

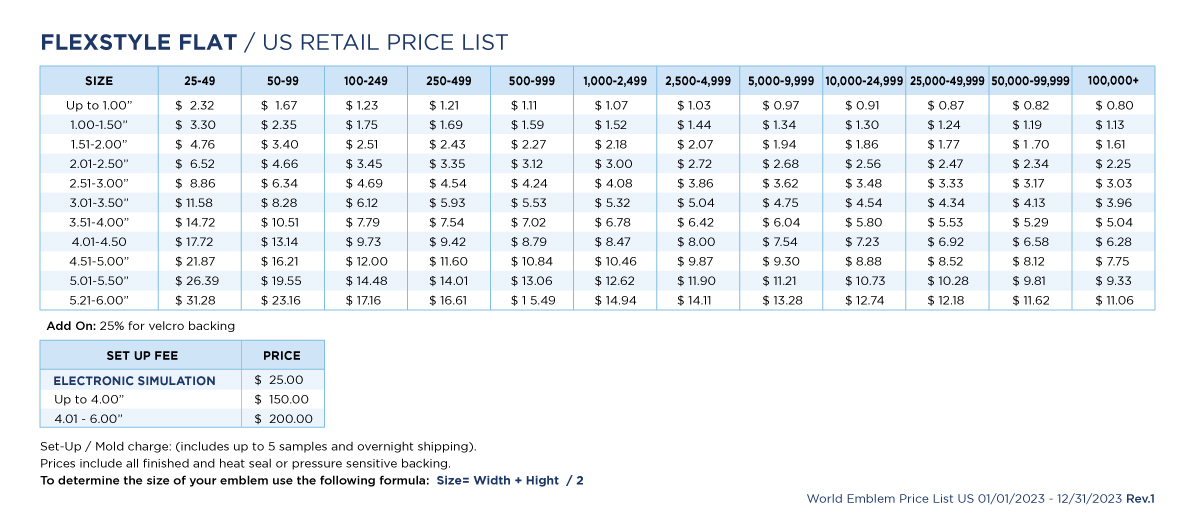

PRICES

Additional Information & Benefits

  • Non-textured surface
  • Shiny, smooth 3D surface
  • Comes in opaque, satin and chrome finishes

NOTE: Please check out the World Emblem YouTube Channel for step by step instructions for applying our apparel decorations.

For technical & application information please visit www.worldemblem.com/technical
