FlexStyle® Holographic

2.76 EA.
Have an account? Sign in

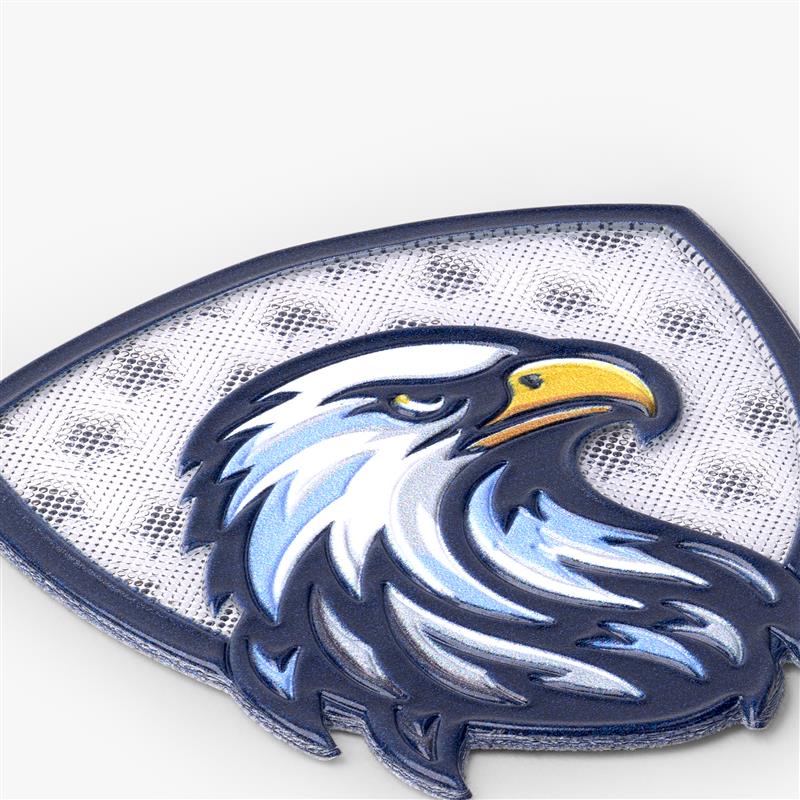

Applied with low melt or pressure-sensitive backing, FlexStyle® Holographic is created with FlexStyle® technology, using animation to tell the story of your brand. The ability to change or move the image comes from lenticular technology, which allows your emblem to have multiple eye-catching looks when viewed from different angles.

Don’t forget your FlexStyle® Silicone Pad to protect the integrity of your FlexStyle® emblem!

Best For:

Headwear, Hardgoods, Bags, Fashion

Specs

Emblem Size Limits

Area - 1" x 1" to 3.75" x 3.75"
Thickness -
2 mm

Text

Minimum - 0.4mm wide
Maximum -
2mm wide

Color

  • Accepts RGB, CMYK, and Pantone color codes
  • Color match is only available for Pantone Coated color codes
  • Neon, glitter and reflective colors are not available

Backing

  • Low melt heat seal
  • Pressure-sensitive
  • Velcro®

Limitations

Low melt - Recommended application for thicker materials, such as jackets, and hats that can withstand a heat press and 320°F. Not recommended for use on materials that may be heat sensitive (ex: some nylons, silk, some plastics, leather, wool, fleece, etc.) or for weather-treated materials, due to chemicals used that do not allow the emblems to adhere properly.
Pressure-sensitive -
Recommended application is on flat, non-textured surfaces, including glass, plastic, wood, and metal. Not recommended for application on surfaces that may contain an oil finish, such as silicon, Teflon™, rough fabrics, or outdoor goods.
Velcro® - Both the hook and loop sides are included, with the hook side sewn to the emblem. Size restrictions adhere to the product’s minimum and maximum dimensions. Sewing guide is required. For emblems larger than 4” height, multiple strips of Velcro will need to be placed side by side.

Electronic Proof

A digital sample via email is available in 48 hours. Edits are allowed.

Main Composition

FlexStyle® Holographic must be one piece. Separated text or elements not allowed.

Textures

Textures will be assigned by our trained designers.

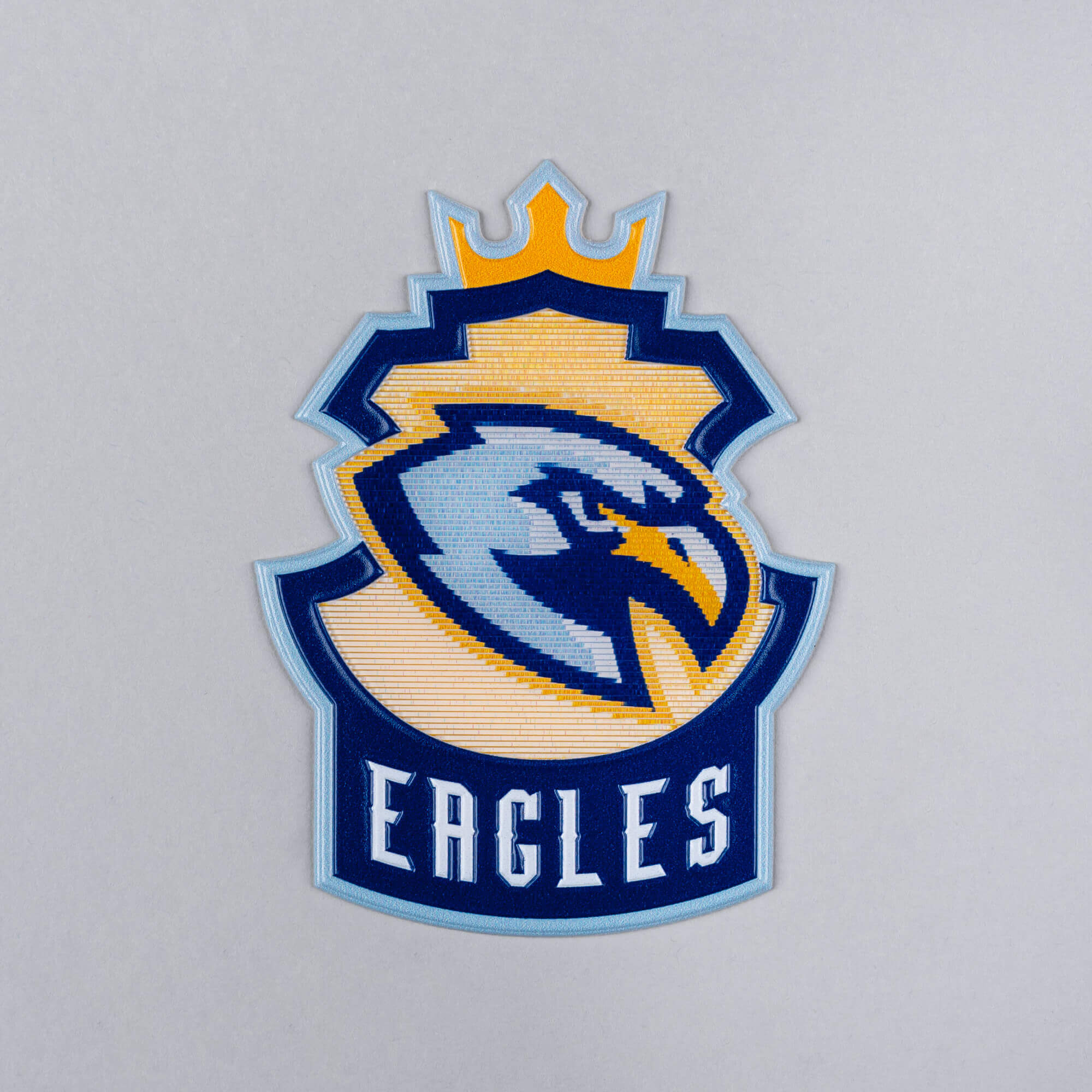

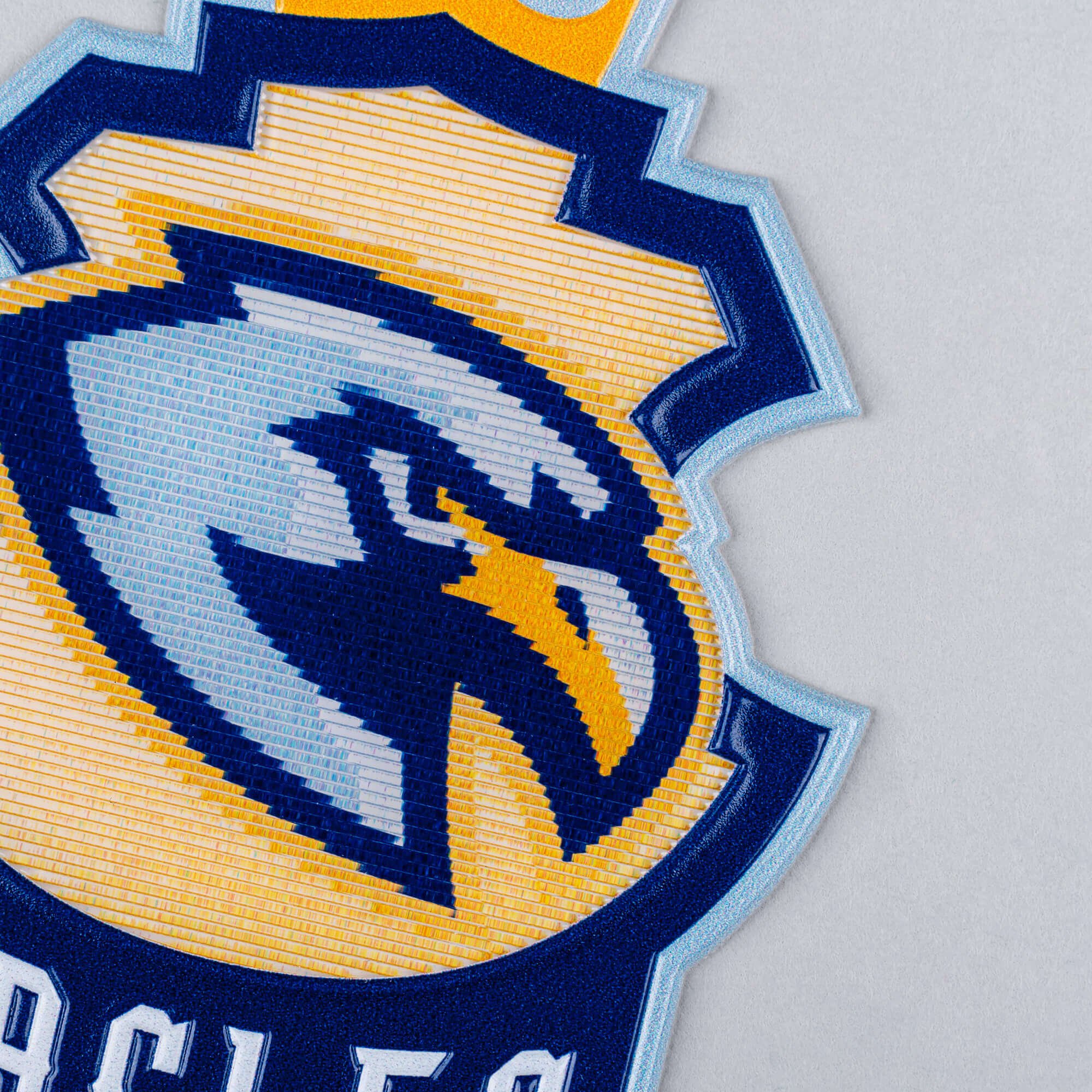

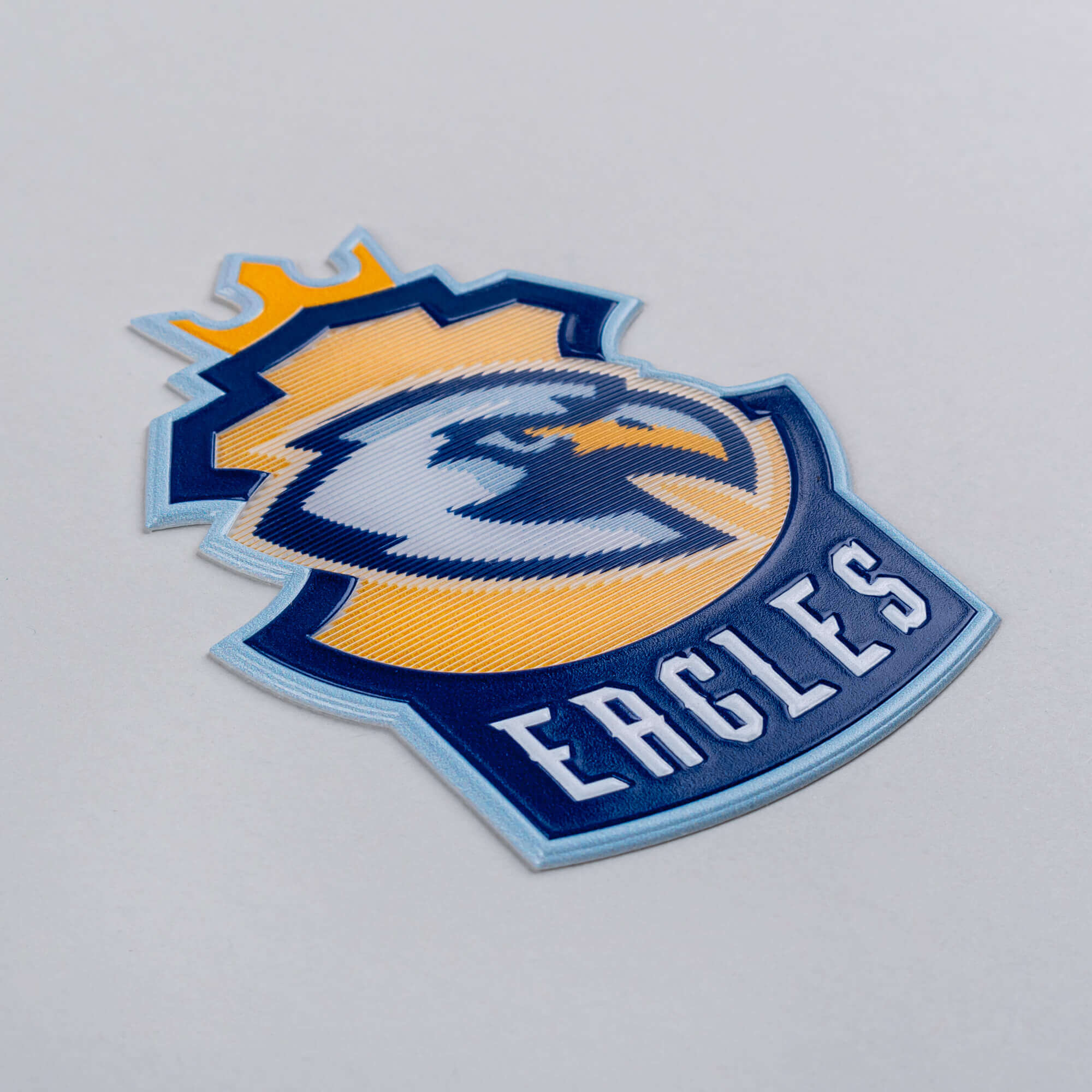

Flipping Features

It flips from one element or color to another.

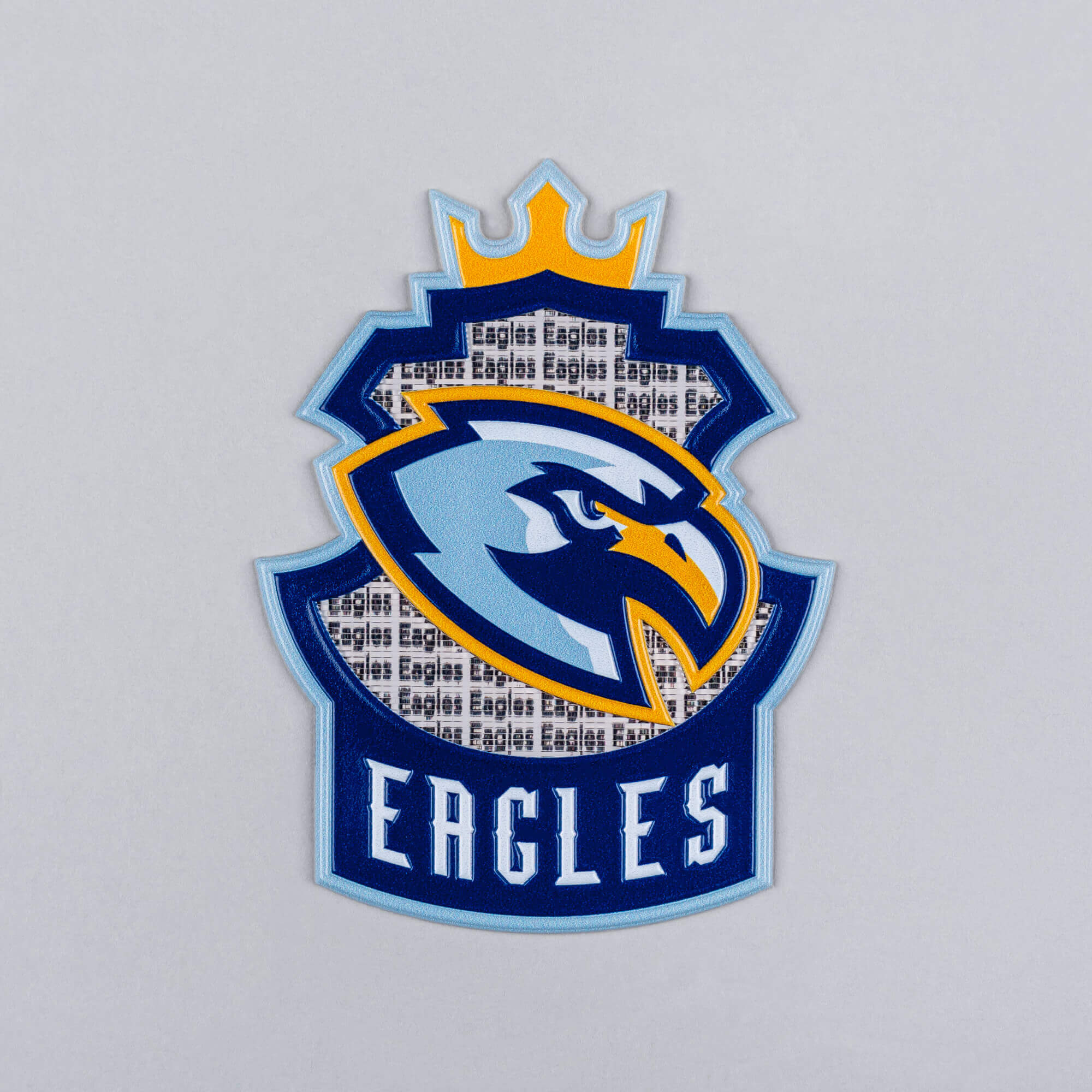

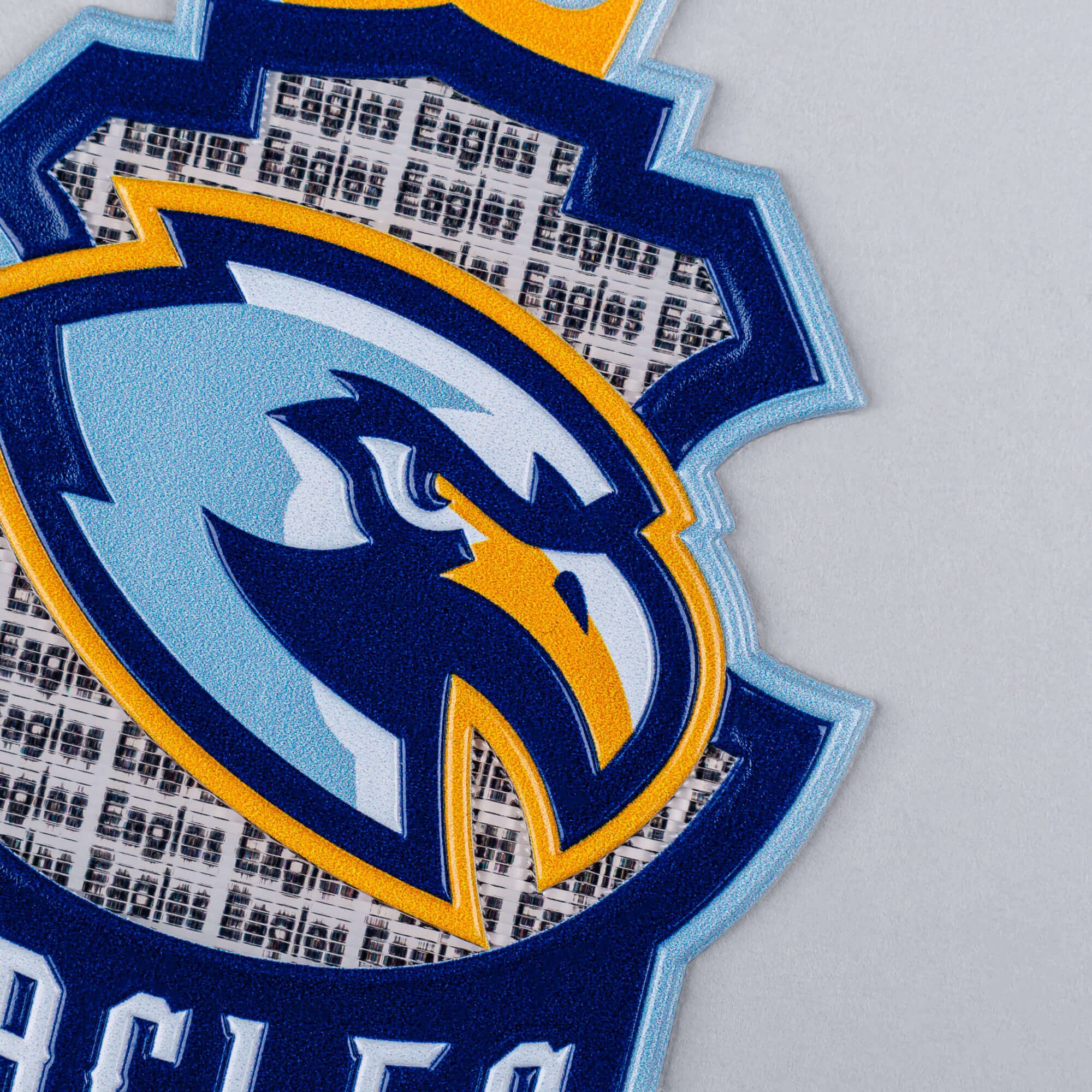

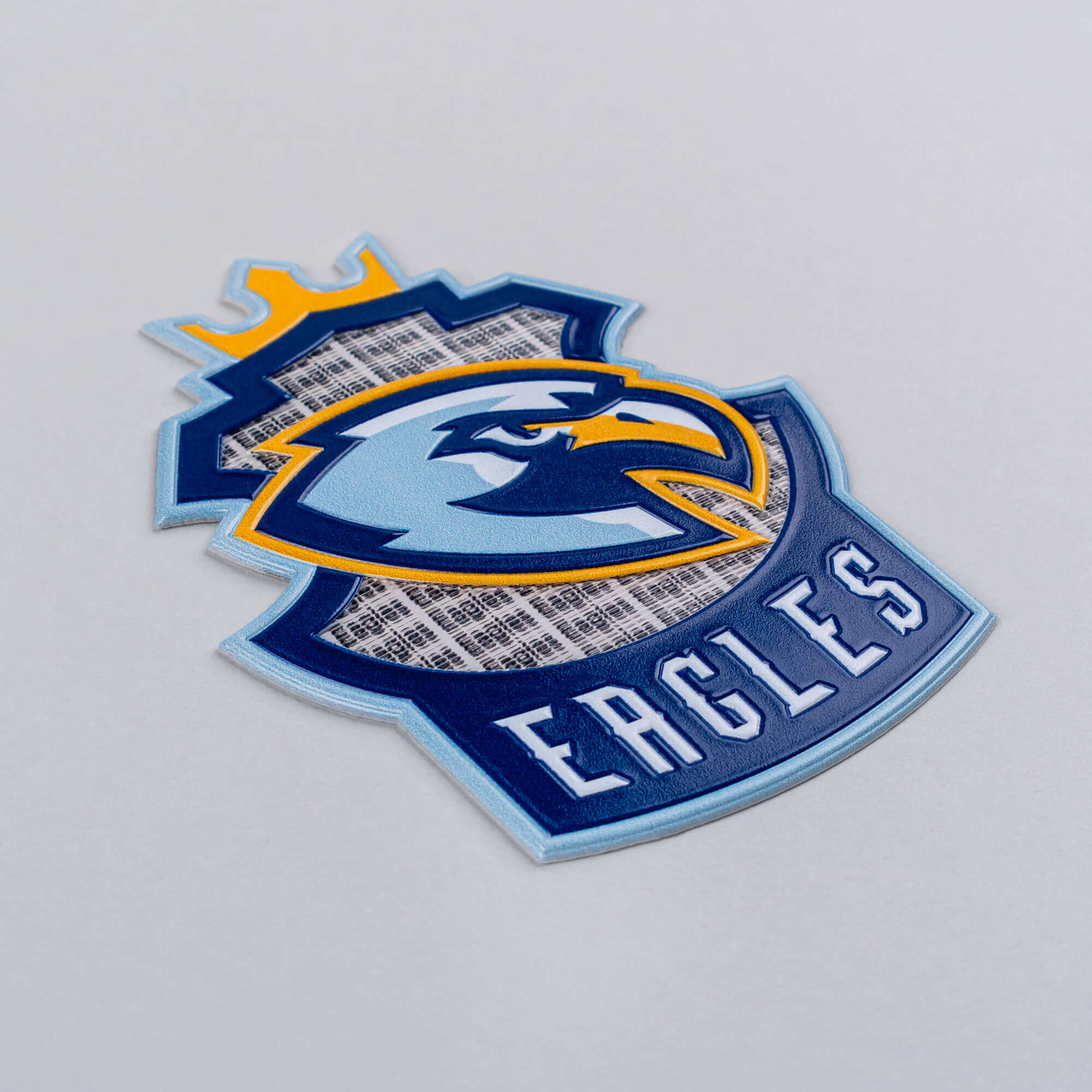

Scrolling Features

The only element available for this effect is Text. Text will scroll up and down in the background.

Texture on effect area - Horizontal lines
Font type allowed - Gotham Regular or Gotham Bold
Font size - 7pts
Text color - Solid colors. Gradients not allowed.
Effect area background - White

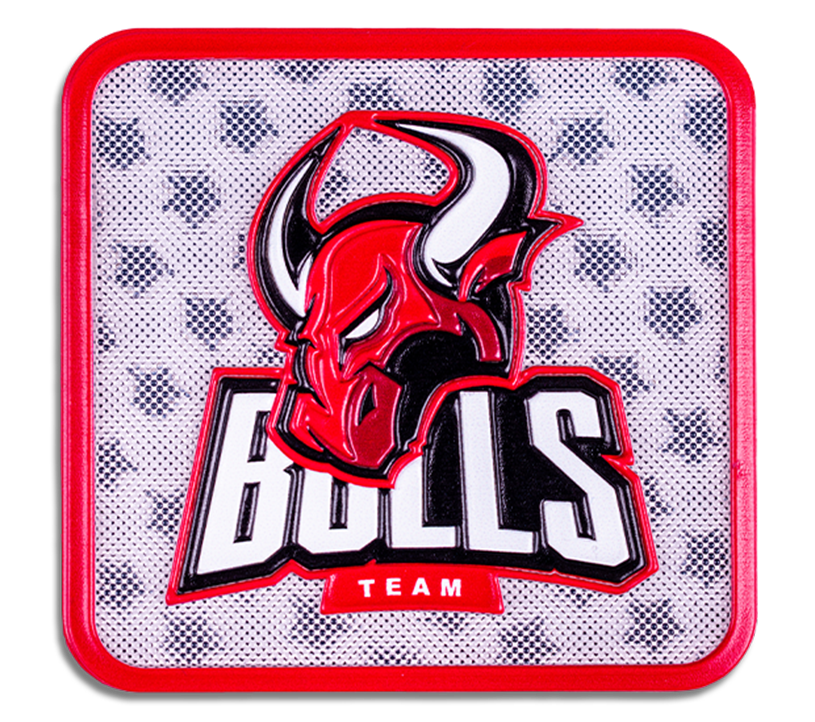

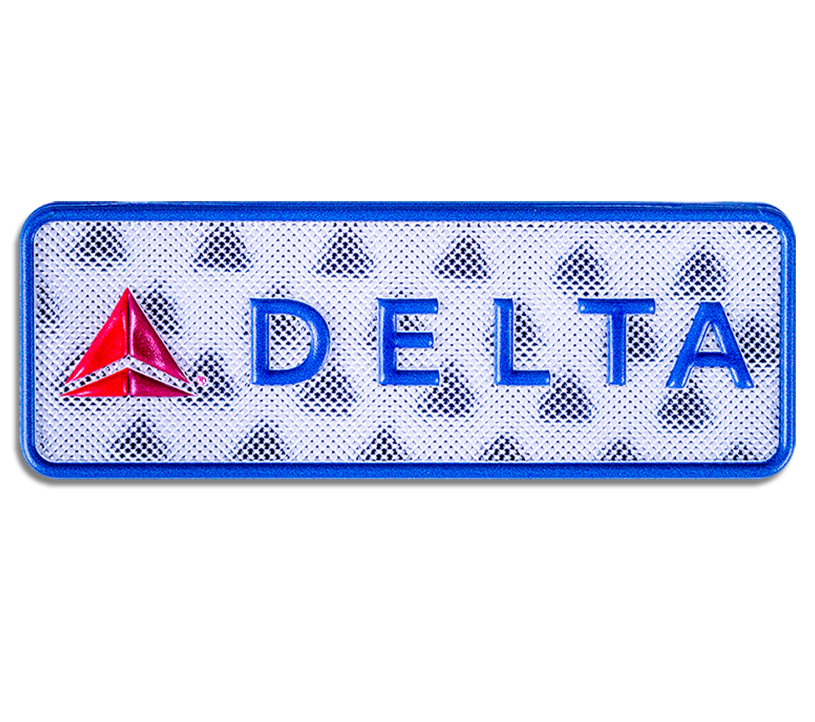

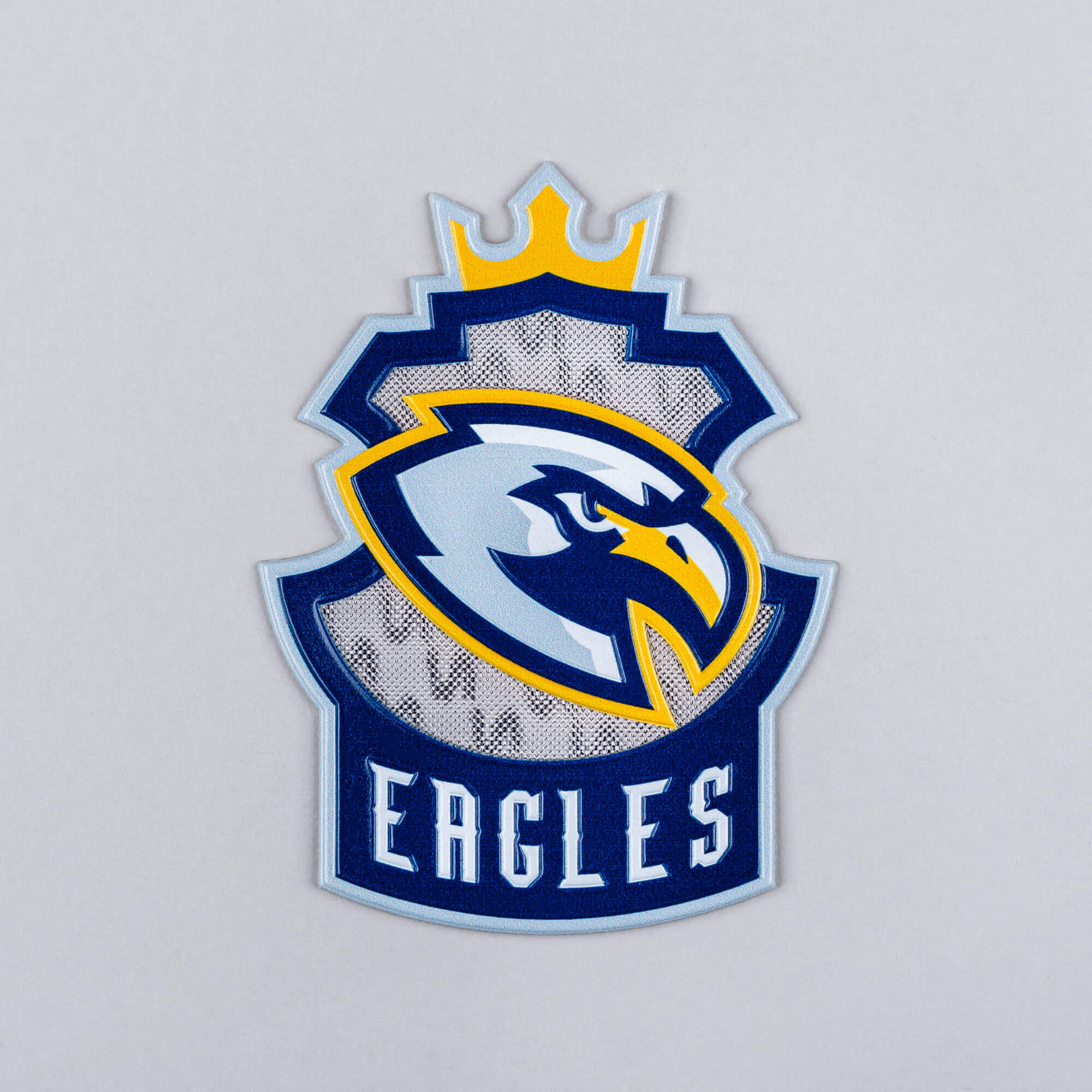

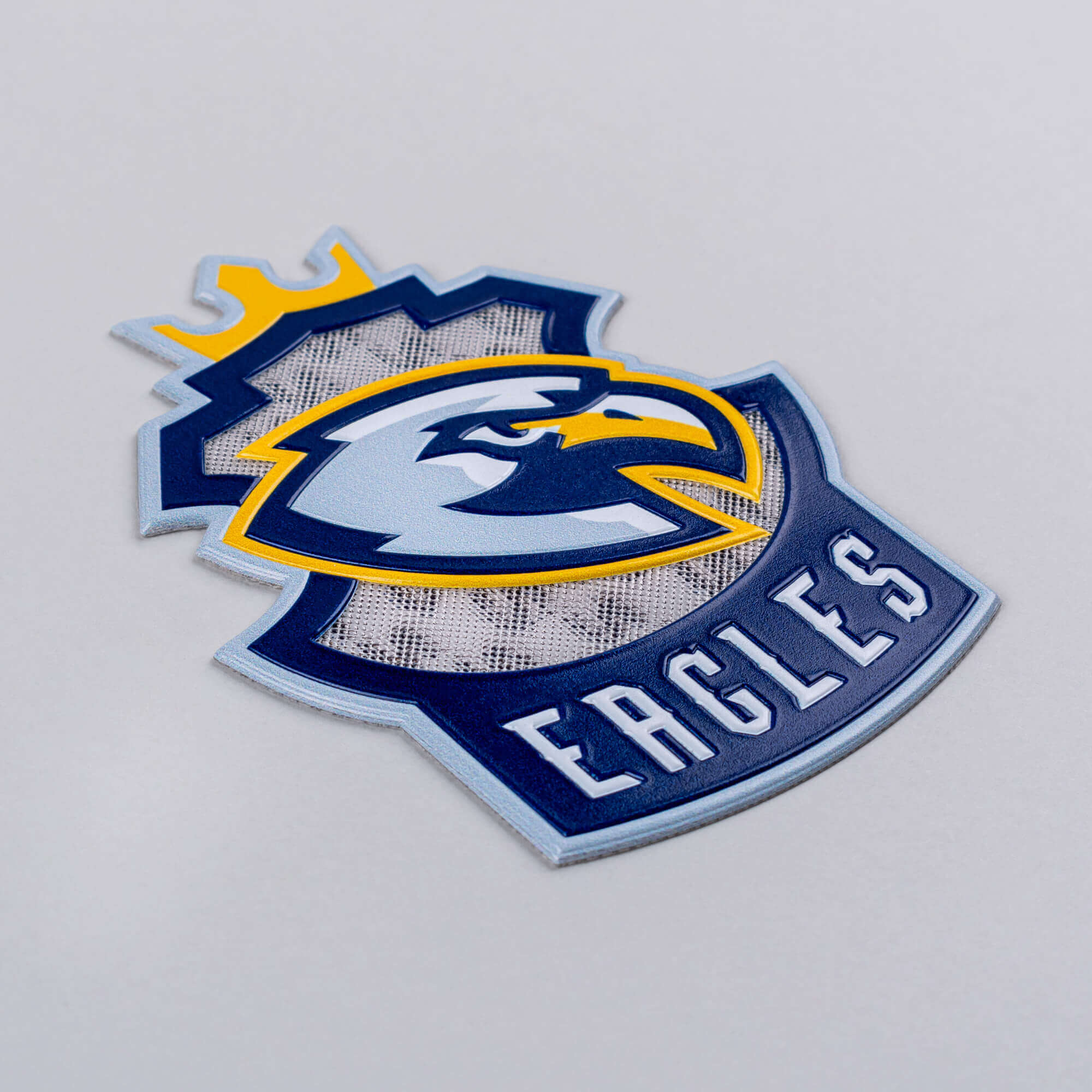

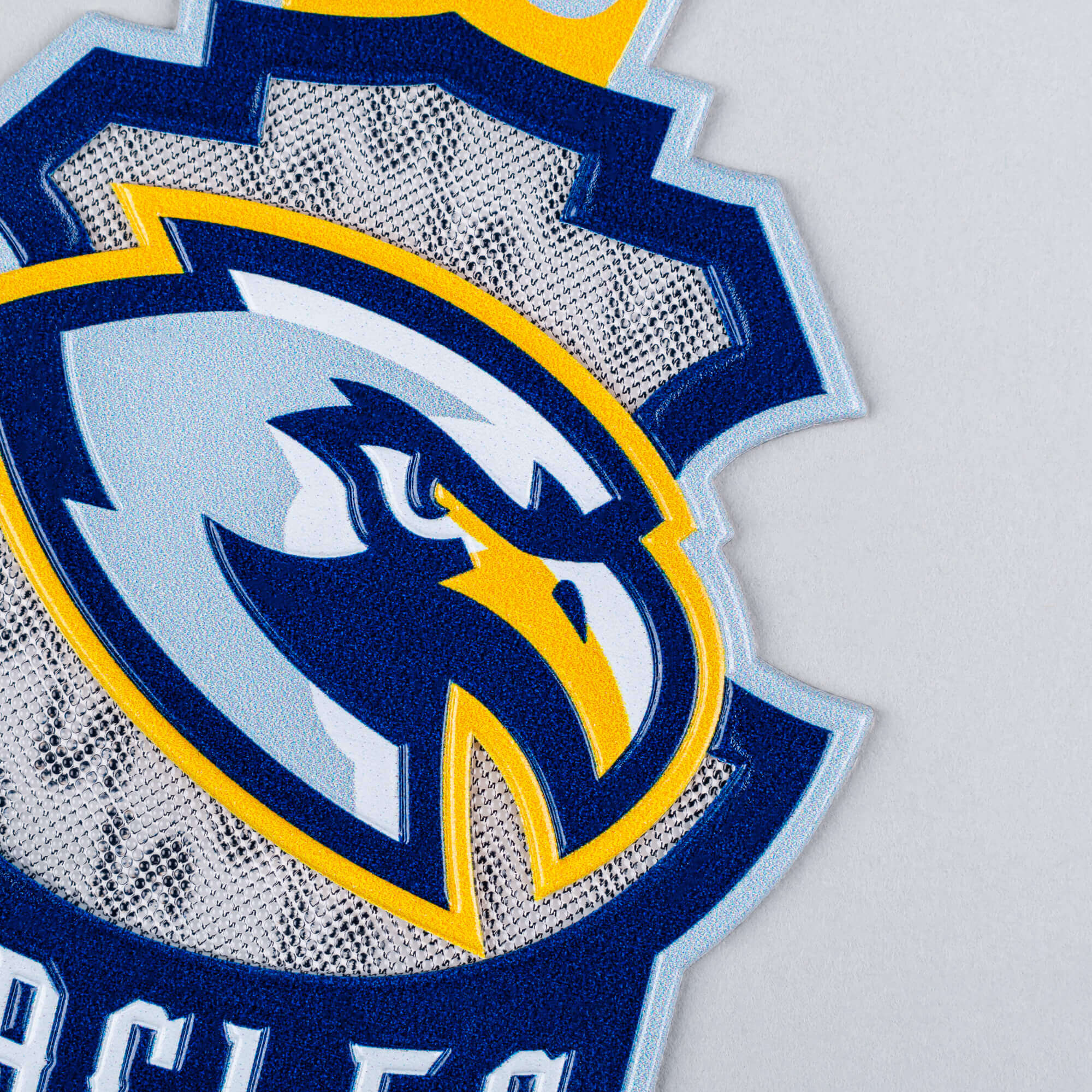

Floating Features

Patterns will “float” all over the background giving a smooth 3D effect.
Texture on effect area - Dots

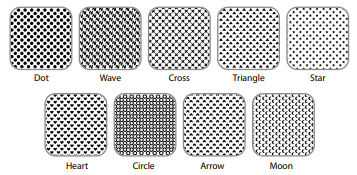

Available Background Patterns


Pattern colors - Solid color. Gradients not allowed.

Washing Information

FlexStyle® emblems will withstand at least 25 domestic washing machine cycles at 104°F max.

Shelf Life

One year shelf life before applying (room temperature-controlled environment).

Revised 12.05.22

Application Instructions

Pressure-sensitive

  1. Use rubbing alcohol to thoroughly clean the application area
  2. Remove paper backing and press emblem firmly on desired location
  3. After applying pressure, peel the clear top carrier from the emblem

Low Melt Backing with a Top Heat Press - Garments

  1. Set the press at 355-365° F for top heat with 40-50 psi of pressure.
  2. Place garment on the heat press with the FlexStyle® Silicone Pad on top and press for 15-20 seconds to preheat the garment.
  3. Place the FlexStyle® on the garment in the desired location. Place the FlexStyle® Silicone Pad over the design.
  4. Press for 15-20 seconds.
  5. Remove garment from the heat press and remove the clear cover once cooled.

Low Melt Heat Seal on Hats - Using the 360 IQ™ Hat Heat Press

  1. Set the press at 275°-285° F for top heat and 315°- 320°F for bottom heat with 60-80 psi of pressure.
  2. Place the hat on the heat press, leaving out the inner layer of the cap. Use the adjustment lever for a better grip.
  3. Place the emblem on the desired location. To secure the emblem and prevent it from moving, use Thermal Tape.
  4. Place a FlexStyle® Silicone Pad over the design.
  5. Press for 15-18 seconds.
  6. Deactivate the adjustment lever and remove the hat from the heat press.
  7. Remove the Thermal Tape and the clear cover once the emblem has cooled.

Disclaimer

World Emblem recommends testing the best combination of heat seal parameters before application. World Emblem is not liable for any damages to garments during the application process.

Note: Please check out www.youtube.com/worldemblem for step-by-step instructions for applying our apparel decorations.

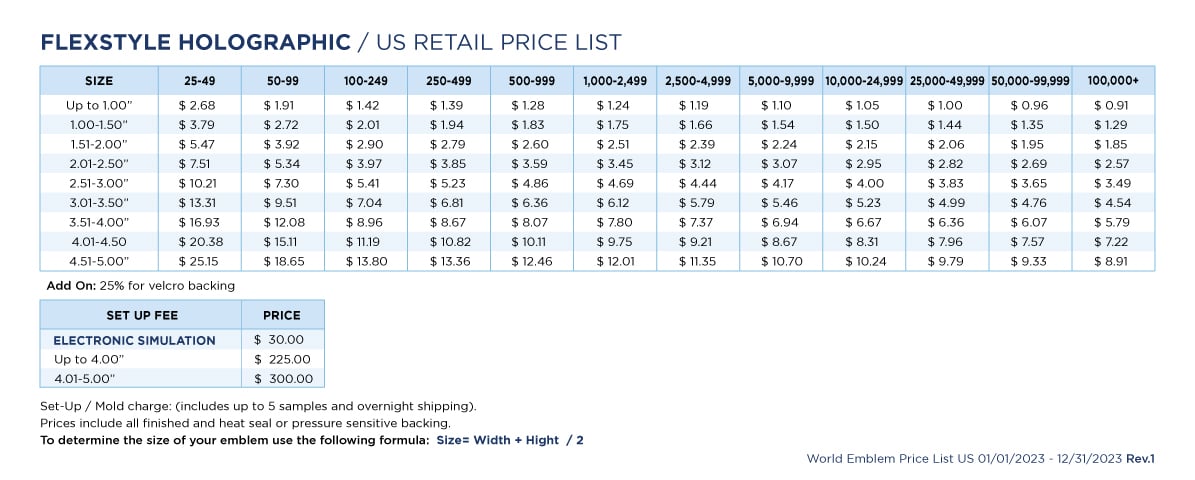

Pricing and Production Time

Pricing

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

Price Includes

  • All finishes
  • Heat seal or pressure-sensitive backing

Add-ons

  • 25% increase for Velcro backing

Electronic Proof

A digital sample via email is available in 48 hours. Edits are allowed.

Set-up Charges

One-time mold charge and artwork fees (includes up to 5 samples and overnight shipping).

  • Electronic Simulation: $30.00
  • Up to 4.00”: $225.00
  • 4.01 - 6.00”: $300.00

Production Time

Once the digital sample is approved, the mold is made in two days. Samples will take four days plus shipping. Production time will take ten days plus shipping on an order of up to 500 pieces. Add one day per 500 pieces.

  • Step 1
    Easy Application

    Our patches can be applied in-house with low-melt heat seals - saving you time and money on shipping.

  • Step 2
    Online Proofs

    Review a digital proof shortly after submitting your design to avoid any design surprises.

  • Step 3
    Design Services

    Our design team is here to help. We offer a range of services to help you take your ideas from sketches to reality.

Eye-catching Appeal from All Angles

Give your brand a visual makeover with flipping, floating, and scrolling holographic custom made patches with FlexStyle technology. Whether you need custom patches for clothes, hats, or hard goods, FlexStyle® Holographic uses animation to tell the story of your brand.
