Dual Air Fusion IQ™

Fast turn-times on heat presses and their accessories!

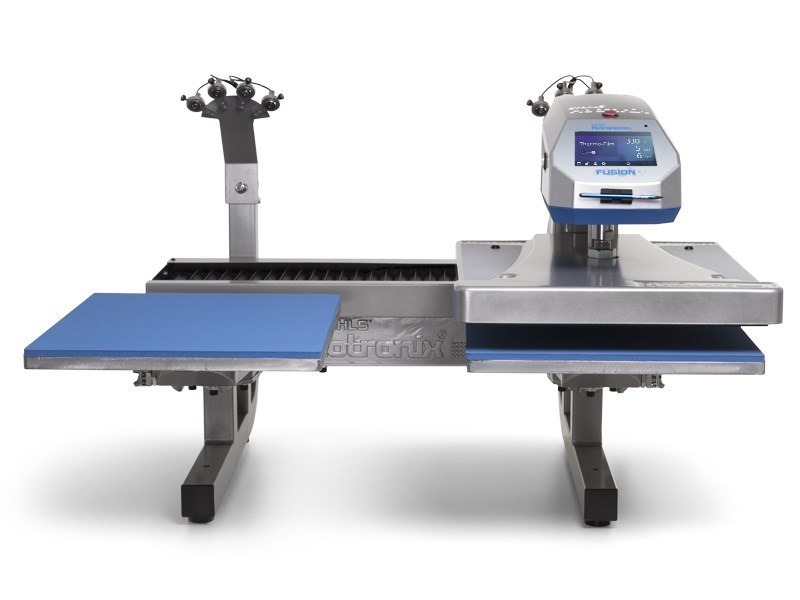

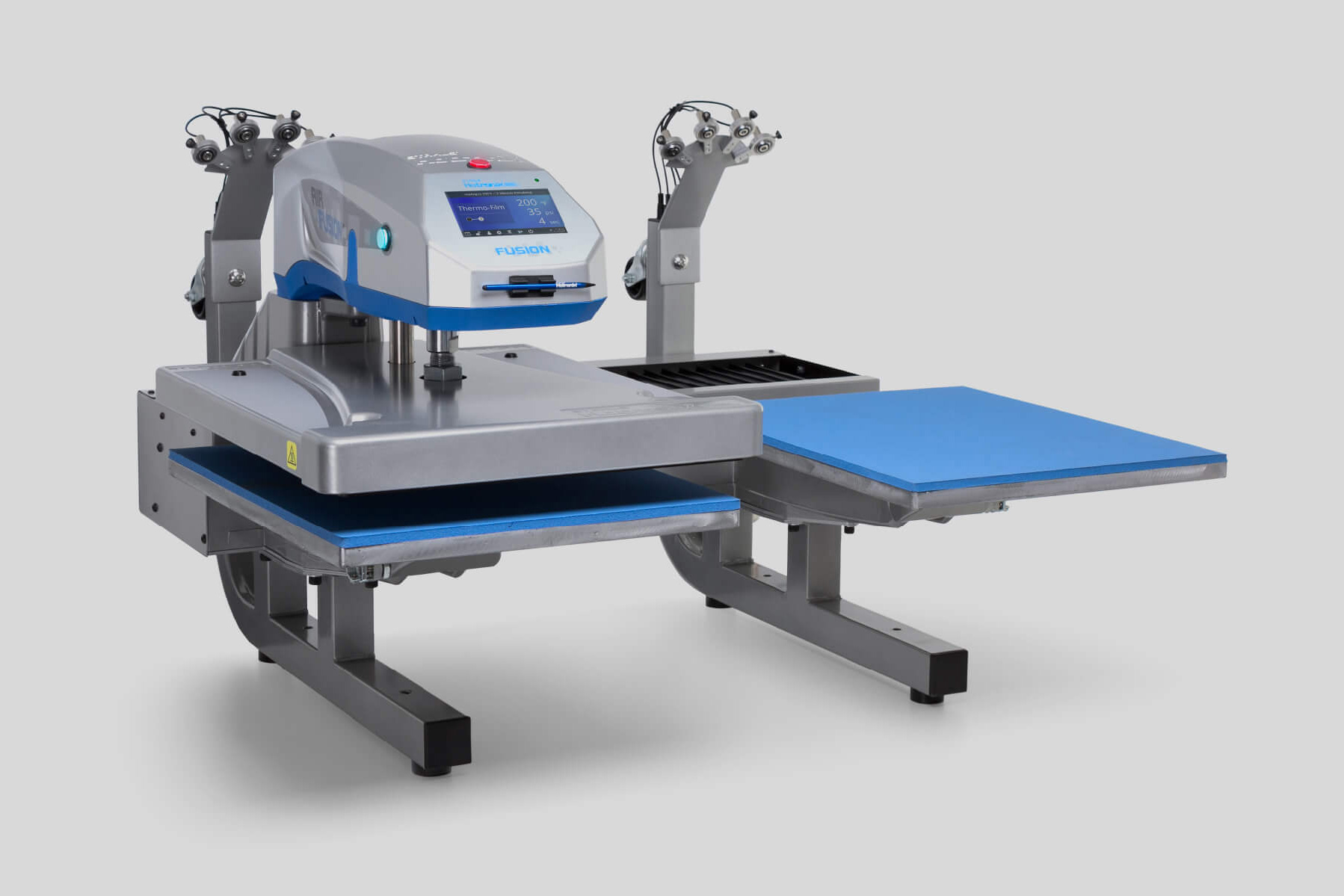

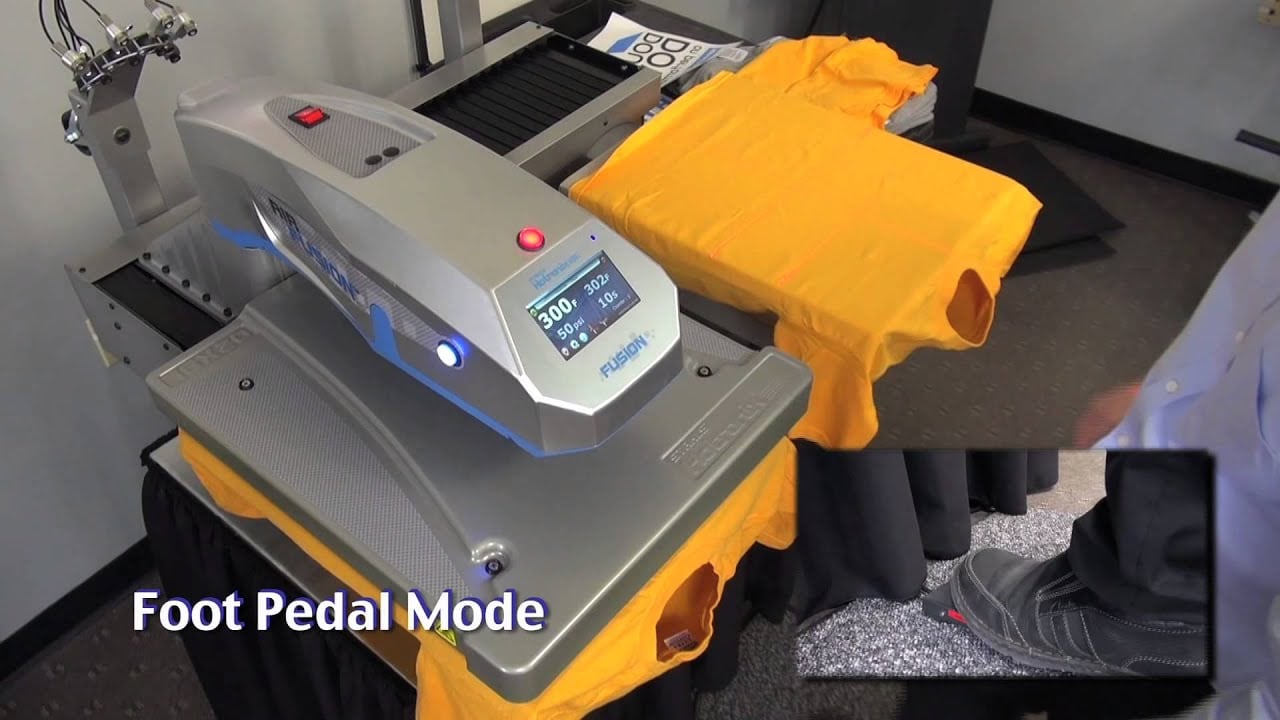

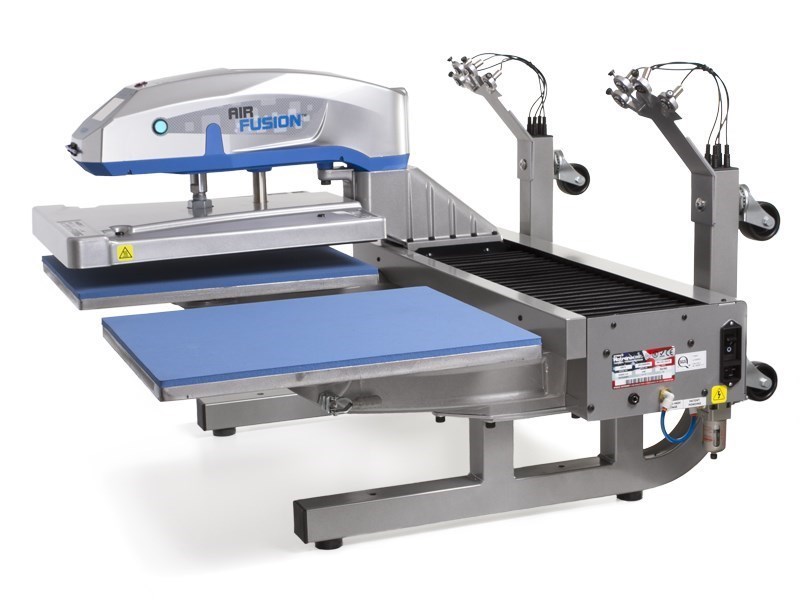

Built for ultimate heat printing efficiency, the Dual Air Fusion IQ™ provides the functionality of two heat presses 16″ x 20″ workstations. Program the press to preheat on station A and complete final application on station B, automatically adjusting time and pressure as it shuttles between workstations. It’s smooth, quiet, effortless operation controlled by the push of a button and tap of the foot pedal. Simply power on and choose between dual or independent operation. The Dual Air Fusion IQ™ also comes standard with a Laser Alignment System, assuring your job is on target every time. The laser system seamlessly integrate into each workstation and is controlled entirely though the touch screen. Item Sku# 1018000000001

Contact Us

Gallery

PRICES

Item# 1018000000001

  • $8720.50
OVERVIEW

Increase Efficiency & Productivity

The Dual Air Fusion IQ™ heat press was designed for high-volume shops. The two heat printing stations allow for multiple applications. Layout or pre-treat at one station while heat printing at the other.

  • Fusion IQ™ controller with high-resolution screen, plus troubleshooting and self-diagnostic capabilities
  • Generate performance reports and manage users online with the new Hotronix Online Portal
  • Program each station to work independently or in unison with Position-Based Recipe printing

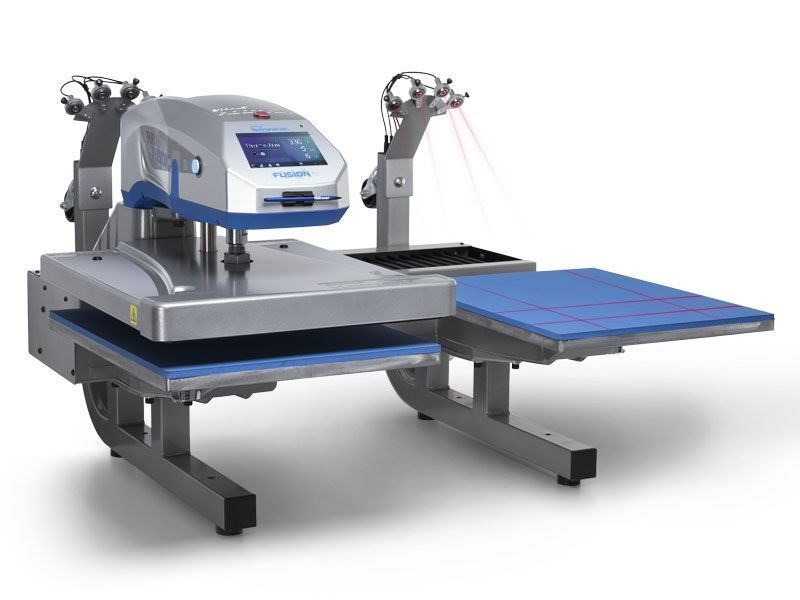

  • Ensure accurate and consistent layout with the included Laser Alignment System
  • Dual Quick Change 16″ 20″ lower platens (additional platens available separately)
  • Full Threadability™ on lower platens: position the garment, rotate, and decorate any area
  • Auto Adjust Pressure™: Set four different time and pressure settings that adjust automatically for your recipe
  • Digital time, temperature, and pressure readouts
  • Operates in full-auto, semi-auto, or manual modes
  • Smooth, quiet rodless transmission
  • Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
  • 120 PSI for heavy-pressure application
  • Die pressure cast, corrosion-free base and assemblies
  • Requires air compressor (not included) with minimum ½ horsepower and 8-gallon hold tank. Uses 2.6 CFM
  • 240 v; 15 amps; 3500 w
  • Proudly made in the USA
SPECS

Universal Features

  • Made in the USA
  • Cast-in tubular heating
  • Powder coated finish
  • UL/ULC/CE/RoHS compliant

Details

  • Actual weight: 260 lbs.
  • Ship weight: 500 lbs.
  • Ship dim. 45.5” x 45.5” x 33.5”

Warranty

  • Heating Element – Lifetime
  • Framework – 5 years
  • Circuit Board – 2 years
  • Parts & Labor – 1 year

Optional Platens

  • 7″ round
  • 6″ x 10″
  • 8″ x 10″
  • 11″ x 15″

Getting Started with the Hotronix® Dual Air Fusion Heat Press



Introduction
Introducing the new Hotronix® Dual Air Fusion™.
Inside Look
Get an inside look into the manufacturing of the Hotronix® presses.
Hotronix® Dual Air FUSION IQ™ Heat Press Manual
